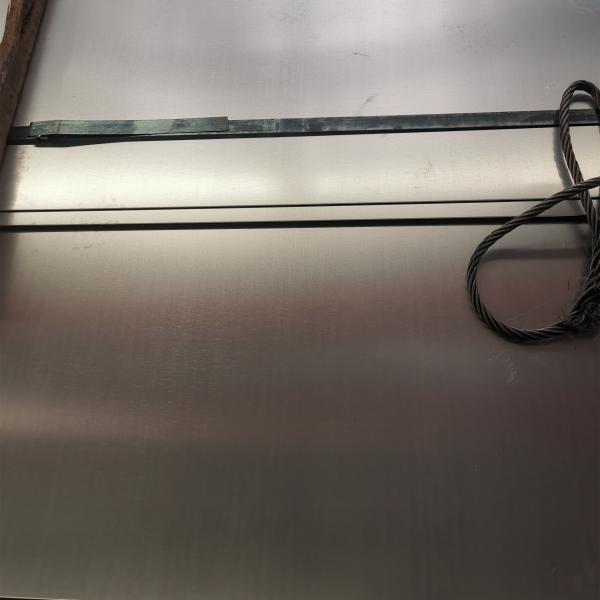

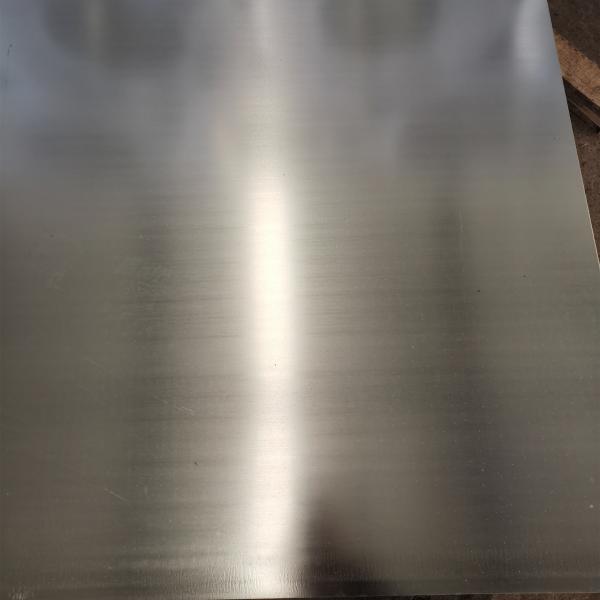

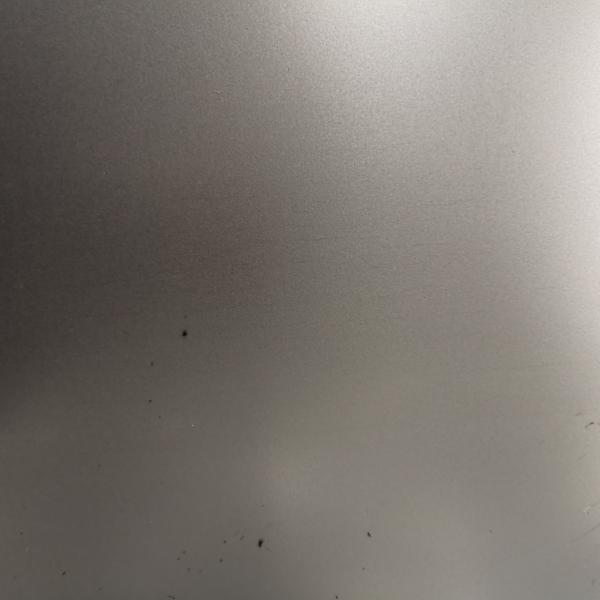

T4.0 And 6.0 4*8 Feet Alloy Steel Plate Saph440 For Automotive Door Lock
T4.0 And 6.0 4*8 Feet Alloy Steel Plate Saph440 For Automotive Door Lock
T4.0 And 6.0 4*8 Feet Alloy Steel Plate Saph440 For Automotive Door Lock
T4.0 And 6.0 4*8 Feet Alloy Steel Plate Saph440 For Automotive Door Lock
T4.0 And 6.0 4*8 Feet Alloy Steel Plate Saph440 For Automotive Door Lock
T4.0 And 6.0 4*8 Feet Alloy Steel Plate Saph440 For Automotive Door Lock
Specifications
Brand Name :
MITTEL
Model Number :
SAPH440
Certification :
SGS ISO MTC
Place of Origin :
China Jiangsu
MOQ :
2Tons
Price :
785 USD/Ton
Payment Terms :
L/C, T/T
Supply Ability :
800Tons
Delivery Time :
10 days after Received the Payments
Packaging Details :
Wooden Pallet
Application :
Container Plate,construction,Flange Plate,Ship Plate,Boiler Plate
Technique :
Hot Rolled,Cold Rolled
Surface treatment :
Black
Standard :
ASTM,AISI,JIS,DIN
Length :
1000-12000mm
Type :
Steel Plate
Width :
1000mm-2000mm
Special use :
High-strength Steel Plate
Thickness :
1.2mm-400mm
Shape :
Flat.sheet
Price term :
CIF CFR FOB EX-WORK
name :
T4.0 And 6.0 4*8 Feet Alloy Steel Plate Saph440 For Automotive Door Lock
Description

SAPH440 is a kind of automotive structural steel, SAPH440widely used for forming performance of the automobile frame,

wheels and other automobile components.

Key words:SAPH440,SAPH440 automotive steel,JIS G3113 SAPH440 automotive steel,JIS G3113 SAPH440 steel for cold forming,

SAPH440 hot rolled steel plate/thin plate / steel belt,Hot-rolled pickled strip SAPH440 steel,SAPH440 automotive steel for cold

forming parts,SAPH440 high-strength automotive steel

SAPH440 steel chemical composition %

Grade Chemical Composition a (Heat Analysis) (%)
C Si Mn P S Alt
SAPH440 ≤0.21 ≤0.30 ≤1.50 ≤0.025 ≤0.025 ≥0.010

SAPH440 Mechanical properties

Grade Tensile Test a

Rm

(MPa)

 ReH c(MPa)

Elongatio a

L0=50mm,b=25mm(%)

 180°bending Test b Diameter
Nominal Thickness(mm)
<6.0 6.0~<8.0 ≥8.0 1.6~<2.0 2.0~<2.5 2.5~<3.15 3.15~<4.0 4.0~<6.3 ≥6.3 <2.0 ≥2.0
SAPH440 ≥440 ≥305 ≥295 ≥275 ≥29 ≥30 ≥32 ≥33 ≥34 ≥35 2a 3a

JW steel keeps more than 10,000 tons SAPH440 steel plates in stock each month. We can meet our customer’s any quantity request.

Based on these stock source, our advantage industry spread into steel process like : cutting ( any size and any shape ) drilling, welding

, milling, machining and steel structure.

We also have a high quality logistics team who make sure the fast delivery time and shipment. Anyway, if you want to find hot rolled

and cold rolled SAPH440 steel supplier, hot rolled and cold rolled SAPH440 steel manufacturer, hot rolled and cold rolled SAPH440 steel exporter, please contact JW steel’s sales team. We will give you the hot rolled and cold rolled SAPH440 competitive price,

hot rolled and cold rolled SAPH440 good quality and best service from us.

SAPH440 is produced in Baosteel's automotive structural steel. SAPH440 hot rolled steel is used for the requirements of the processing performance of the car frame, wheels and other automotive structural parts

SAPH440 HRC chemical composition %


Grade		 C S Mn P Si Alt
SAPH440 ≤0.21 ≤0.025 ≤1.50 ≤0.030 ≤0.30 0.01-0.065

SAPH440 steel mechanical properties


Grade		 Yield strength (MPa Tensile strength (MPa) Elongation%
SAPH440 305min 440min 31min

SAPH440 delivery condition: HR
Supply size: thickness 1.2-25mm; coils width 600-2000mm; strips width≦600mm
Product type : SAPH440 steel coil, SAPH440 steel strip,SAPH440 steel sheet
Delivery time : Promptly ( Stock) or 10-40 days (Production)
