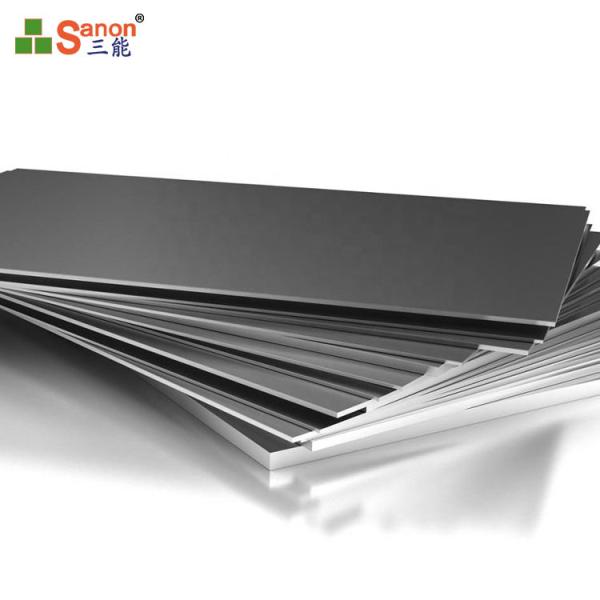

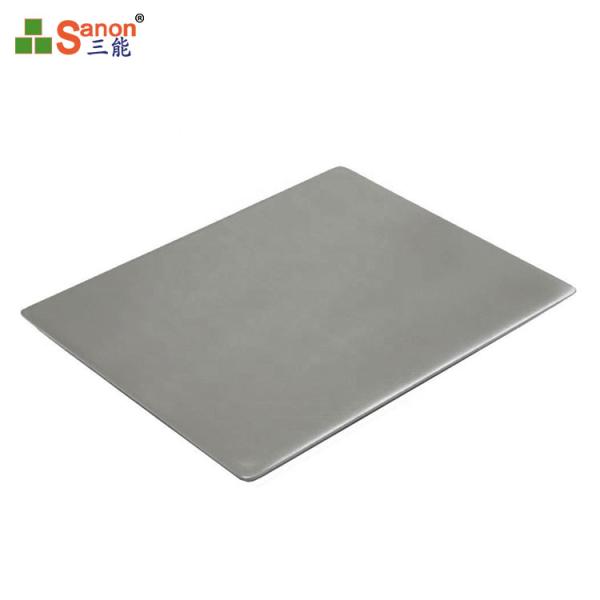

316 Stainless Steel Sheet SS Weight Perforated Plate Cold Rolled Metal Sheet
| Specification |
| Customize | Available |
| Width | 50mm-2000mm, 600-1250mm |
| Thickness | 0.25mm-3.0mm |
| Length | 6m or according to
customers' reques |
| Sample | Free sample is available |
| Tolerance | Outer diameter:6.5*6.5- 85*85 |
| | Thickness:±0.05mm |
| | Length:±0.5mm |
| Tolerance | A. Sanded |
| | B. Gloss #400,
Mirror #600 - #1000 |
| | C. Brushed |
| | D. Wood Grain |
| | E. Embossed, Threaded |
Chemical Composition
1)100% Raw material
2)We offer competitive price with best service.
3)We can provide stainless steel processing services.
4)We have win high reputation based on best quality products.
5)Stainless steel tube are widely used in petroleum, chemical, medical, food,
light industry, machinery, instruments and other industrial pipes and mechanical parts etc.
Common stainless steel of chemical composition reference
|
| C | Si | Mn | P | S | Ni | Cr | Mo | Cu |
| 201 | ≤0.15 | ≤1.00 | 5.50~7.50 | ≤0.060 | ≤0.030 | 3.50~ 5.50 | 16.00~18.00 | - | - |
| 202 | ≤0.15 | ≤1.0 | ≤7.5~10.0 | ≤0.060 | ≤0.03 | 4.00~
6.00 | 19.0 | - | - |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.0–10.5 | 17.5–19.5 | - | - |
| 316 | ≤0.08 | ≤1 | ≤2 | ≤0.045 | ≤0.030 | 10.0~14.0 | 16.0~18.0 | 2.00-3.00 | - |
| 316L | ≤0.03 | ≤1 | ≤2 | ≤0.045 | ≤0.030 | 10.0~14.0 | 16.0~18.0 | 2.00-3.00 | - |
| 317 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | =11~15 | =18.00~20.00 | =3~4 | - |
| 317L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | =11~15 | =18.00~20.00 | =3~4 | - |
Application
NO.1:Chemicaltank,pipe.
2B:Medical equipmet,food industry,construction material and kitchen utensils.
BA:Kitchen utensils,electric equipment,building construction
NO.4:Kitchen utensils,building construction,medical equipment HL:Building construction
8K:The product have excellent brightness
and prefer reflexivity can be the mirror.
