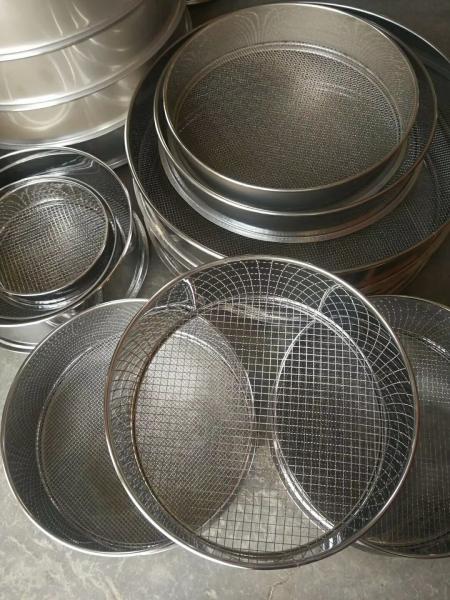

Perforated Sheets Standard 1mm Laboratory Test Sieves
Perforated Sheets Standard 1mm Laboratory Test Sieves
Specifications
Place of Origin :
Hengshui,China
MOQ :
1 roll
Price :
7-200 us dollar per square meter
Supply Ability :
3000 rolls per month
Packaging Details :
Inside waterproof paper,outside wooden carton
Product name :
Stainless Steel Woven Wire Mesh
Mesh size :
2 mesh-500mesh
Wire diameter :
0.01-1mm
Technique :
Woven
Width :
0.5-6.5m
Length :
30m or customized
Feature :
Wear-Resisting,Heat-Resisting,Acid-Resisting
Usage industry :
Chemical Industry,Filtering,Sieving
Description

Stainless Steel Woven Mesh/Perforated Sheets Laboratory Standard Test Sieve

The general aperture size: above 3mm (according to your requirements)

Material: Stainless steel 304, 316, 316L or Aluminum ( including the frame and screen cloth)

Case Study of Standard Perforated Plate Test Sieves:
Diameter 200mm and depth 25mm perforated screen round standard sieves:
Mesh aperture size: from 5 microns to 15 microns
Mesh aperture size such as: 5 µm,10 µm,15 µm
Mainly used for high precision screening /testing the subparticle material.
Widely used in high precision screening /testing the particle size analysis.

Specification:
1.Material: metal,ss304
2.mesh:4-100mesh
3.shape: round
Detailed introduction:
Material:Test Sieve made from first class stainless steel perforated screen sheet,
brass sheet and other metal screen with punched holes.
Standard Sieves and Test Sieves:
Diameter: 5cm 6cm 8cm 10cm 20X5cm 30X5cm

Test sieve specification:

Model Aperture Size (mm) Specification
7# 2.5 Dimension 1: 200*50 mm

Dimension 2: 75*30 mm

Dimension 3: 300*60 mm


Material: SUS304
8# 2.36
10# 2
12# 1.7
14# 1.4
16# 1.18
18# 1
20# 0.85
25# 0.71
30# 0.6
35# 0.5
0.45
40# 0.425
0.4
45# 0.355
0.315
50# 0.3
60# 0.25
70# 0.212
80# 0.18
90# 0.16
100# 0.15
120# 0.125
140# 0.106
150# 0.1
170# 0.09
180# 0.08
200# 0.075
190# 0.071
230# 0.063
250# 0.06
270# 0.039
300# 0.05
325# 0.045
363# 0.04
400# 0.038
0.028
500# 0.025
600# 0.02
Punching mesh perforated test sieve is in stead of the type that the wire diameter more than 3mm

We also supply pleated wire mesh element sieves:

Product Details 1.Style Perforated Plate, Pleated
2.Feature Fireproof,Washable,High Efficiency&Quality
3.Material: Stainless Steel, Aluminum mesh
4.Size OEM,Customizing is welcome
5.Frame Ss or Aluminum
6.Packing Carton
7.Used to Sizing, filtering
8.Weight Based on size & material
9.Minimum order 50pcs
Custom orders discussed.


Processing products

Perforated Sheets Standard 1mm Laboratory Test Sieves

Concentrating on putting all the efforts into maintaining product standards. We have a full range of production equipment, advanced technology, scientific management and inspection systems so that we can meet the exact requirements of our customers for various of wire mesh products.
