Stainless steel 304 Plain Twill Dutch Woven Wire Mesh, 70×400 dutch weave wire mesh
Stainless steel 304 Plain Twill Dutch Woven Wire Mesh, 70×400 dutch weave wire mesh
Specifications
Place of Origin :
Hengshui,China
MOQ :
1 roll
Supply Ability :
3000 rolls per month
Packaging Details :
1.packing with water-proof paper inside and outside with weaving bag or bubble film wooden pallet or wooden case 2.the special packing we can make it according to the customers' requirement.
Material :
Stainless steel
Type :
Woven wire mesh
Application :
Filtration
Weave Style :
dutch weave
Wire Diameter :
0.025-2.03mm
Technique :
Woven
Width :
1m, 1.2m, 1.5, 1.6m,1.8m,2.5m.3.5m
Length :
30m or customized
Description

Stainless steel 304 Plain Twill Dutch Woven Wire Mesh, 70×400 dutch weave wire mesh

1.Brief introduction

Stainbless Steel Dutch Wire Mesh Used in Fuel Filter, Aerospace, Rubber Industry
Stainless Steel Dutch Wire Mesh has different warp and weft wire numbers and diameter: more weft numbers and thicker warp wire. And it is classified into plain dutch weave and twill dutch weave.

2.Material

stainless steel 202, 302, 304, 304L, 310S, 316, 316L, 321, 410, 430, super duplex stainless steel, duplex stainless steel, etc.

3.Weaving: plain weave stainless steel dense mesh (plain-dense), twill woven stainless steel dense mesh (twill-dense), bamboo weaving dense net, stainless steel dense contrast woven net (also known as contrast dutch mesh conveyor belt)

4.Specification

Specifications of Stainless Steel Twill Dutch Wire Mesh

Weft × Warp (inch) Aperture Size (μm) Available Area (%) Thickness (mm)
20 × 270 119 17.6 0.65
20 × 200 118 12.1 0.915
24 × 300 110 19.6 0.64
20 × 150 101 7.5 1.16
30 × 340 89 17.9 0.60
30 × 270 77 11.2 0.68
40 × 540 70 23.5 0.38
40 × 430 63 15.4 0.43
50 × 600 51 17.2 0.305
50 × 500 47 12 0.364
65 × 600 36 12 0.32
70 × 600 31 10.1 0.32
78 × 760 31 13.5 0.254
78 × 680 29 10.3 0.272
80 × 680 28 9.8 0.272
90 × 850 26 12.7 0.226
90 × 760 24 9.6 0.242
100 × 850 22 10 0.226
130 × 1500 21 18.6 0.135
100 × 760 20 7.4 0.242
130 × 1200 18 12 0.161
130 × 1100 17 9.4 0.171
150 × 1400 15 11.4 0.143
160 × 1500 15 12.4 0.135
165 × 1500 14 11.4 0.135
174 × 1700 13 12.9 0.127
165 × 1400 13 8.8 0.143
174 × 1400 11 7.4 0.143
203 × 1600 10 9.3 0.114

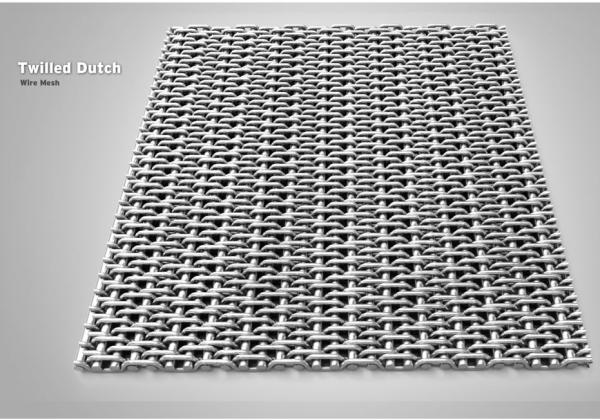

Weaving Method

Stainless steel 304 Plain Twill Dutch Woven Wire Mesh, 70×400 dutch weave wire mesh

The plain dutch weave wire mesh is similar to plain weave but with a greater diameter warp wire. The weft wires are driven up close to each other.

so the opening is tapers or wedge-shaped instead of square.

This type wire mesh is woven tightly together and produce a strong wire cloth while allowing a good flow rate.


Stainless steel 304 Plain Twill Dutch Woven Wire Mesh, 70×400 dutch weave wire mesh

Good finish

Stainless steel 304 Plain Twill Dutch Woven Wire Mesh, 70×400 dutch weave wire mesh


Packing of stainless steel woven wire mesh

Stainless steel 304 Plain Twill Dutch Woven Wire Mesh, 70×400 dutch weave wire mesh

Stainless steel 304 Plain Twill Dutch Woven Wire Mesh, 70×400 dutch weave wire mesh

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen

Stainless steel 304 Plain Twill Dutch Woven Wire Mesh, 70×400 dutch weave wire mesh

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.
