Stainless Steel Crimped Wire Mesh 10mm 15mm 20mm Opening Size For Construction
Stainless Steel Crimped Wire Mesh 10mm 15mm 20mm Opening Size For Construction
Stainless Steel Crimped Wire Mesh 10mm 15mm 20mm Opening Size For Construction
Stainless Steel Crimped Wire Mesh 10mm 15mm 20mm Opening Size For Construction
Specifications
Brand Name :
TL
Model Number :
TL CM09
Place of Origin :
Hengshui,China
MOQ :
1 roll
Price :
According to order quantity can be negotiable
Supply Ability :
2300 Meter/Meters per Month
Packaging Details :
inner kraft, outside plastic cloth, put into wooden pallet or case
Technique :
Woven
Feature :
High quality with good prices
Length :
30m or customized
Width :
1m, 1.2m, 2m or customized
Application :
Fence,filter
Advantage :
Rust resistance
Description

Crimped Wire Mesh for Construction,10mm,15mm,20mm opening size stainless steel wire mesh

Material : stainless steel

Diameter: 0.35-22mm

Aperture :1mm-100mm

Width :0.6m-2.8m

Length :2m-10m

Wire Gauge (SWG) Wire Diameter (mm) Mesh Aperture (mm) weight (kg/m2)
14 2.0 21 1 4.2
8 4.05 18 1 15
25 0.50 20 0.61 2.6
23 0.61 18 0.8 3.4
24 0.55 16 0.1 2.5
24 0.55 14 0.12 4
22 0.71 12 0.14 2.94
19 1 2.3 0.18 1.45
6 4.8 1.2 2 20
6 4.8 1 2 20
6 4.8 0.7 3 14
14 2.0 5.08 0.3 12
14 2.0 2.1 1 2.5
14 2.0 3.6 1.5

1.9

Double-Crimp

Stainless Steel Crimped Wire Mesh 10mm 15mm 20mm Opening Size For Construction

Lock-Crimp

For light to medium wire in relation to screen opening size. Wire is locked in place for long wear and accurate screen openings for the life of the screen. This specification is also referred to as "Scalping Weave". Generally used in extremely heavy screen cloths and those with relatively small openings.

Flat-Top

Improves material flow with flatter surface than other weaves. Lock

weave maintains accurate openings. Also called "Smooth-Top". Most

efficient weave for heavy-duty screens when ratio between width and wire diameter permits its use. As a general rule, opening width should be at least 5 times the wire diameter. It is extremely durable because each wire is locked in place to maintain accuracy of openings for the life of the screen.

Stainless Steel Crimped Wire Mesh 10mm 15mm 20mm Opening Size For Construction

Tri-Loc

Long openings will keep sticky or wet material flowing freely. Weave holds wires securely yet permits slight vibration to keep openings clear. This specification is often called "Triple Shoot".

This specification is also referred to as "Vibro Type Weave".

Stainless Steel Crimped Wire Mesh 10mm 15mm 20mm Opening Size For Construction

Efficient and long wearing in a variety of applications Providing a level, smooth surface, the Smooth weave employs a type of rigidity interlocked crimp that insures maintenance of accurate, uniform openings. When used in the correct application, because of the level weave, there is considerable reduction of friction from material passing over the screen and, in many cases, far less wear from abrasion than in screens made with surface crimps.

Stainless Steel Crimped Wire Mesh 10mm 15mm 20mm Opening Size For Construction

Specifications

SWG Wire diameter(mm) Mesh Aperture(mm) Weight(kg/m2)
6 4.8 0.7 3 14
6 4.8 1 2 20
6 4. 1.2 2 20
8 4.05 18 1 15
14 2 3.6 1.5 1.9
14 2 5.08 0.3 12
14 2 2.1 1 2.5
14 2 21 1 4.2
19 1 2.3 0.18 1.45
22 0.71 12 0.14 2.94
23 0.61 18 0.8 3.4
24 0.55 16 0.1 2.5
24 0.55 14 0.61 4
25 0.5 20 1.5 2.6

Stainless Steel Crimped Wire Mesh 10mm 15mm 20mm Opening Size For Construction

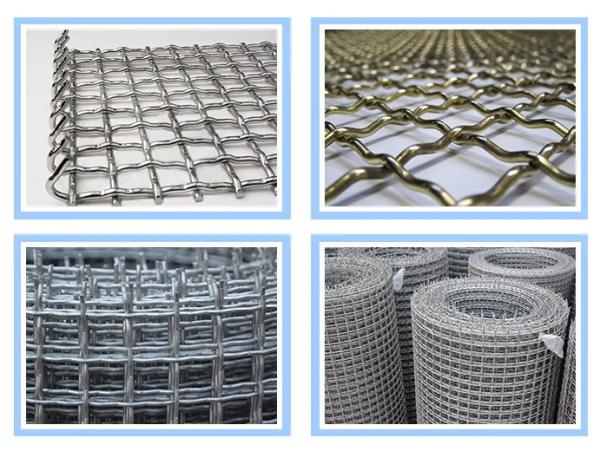

Crimped wire mesh product details

Stainless Steel Crimped Wire Mesh 10mm 15mm 20mm Opening Size For Construction

Stainless Steel Crimped Wire Mesh 10mm 15mm 20mm Opening Size For Construction

Stainless Steel Crimped Wire Mesh 10mm 15mm 20mm Opening Size For Construction Stainless Steel Crimped Wire Mesh 10mm 15mm 20mm Opening Size For Construction

Stainless Steel Crimped Wire Mesh 10mm 15mm 20mm Opening Size For Construction

About our company

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.

Stainless Steel Crimped Wire Mesh 10mm 15mm 20mm Opening Size For Construction

We are specialized in manufacture and export of stainless steel wire mesh product,if you have request please contact us.We will provide professional service and guarantee on time delivery.
