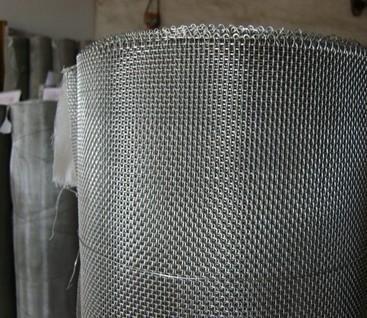

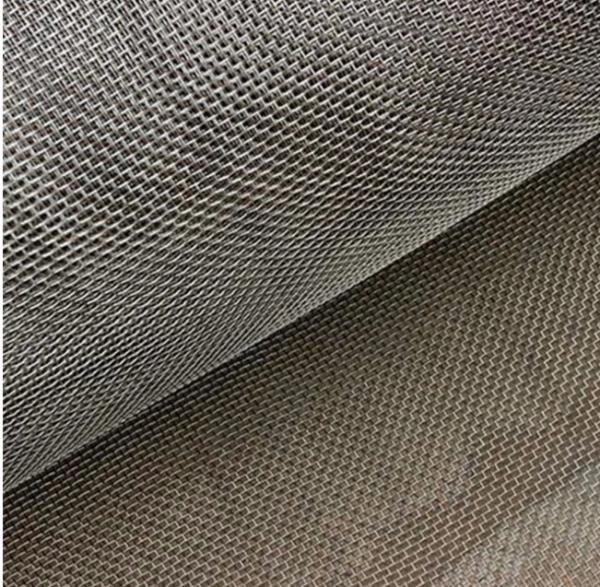

Ultra Thin Stainless Steel Woven Wire Mesh 0.5 Micro 1 Micron Sieve
Ultra Thin Stainless Steel Woven Wire Mesh 0.5 Micro 1 Micron Sieve
Ultra Thin Stainless Steel Woven Wire Mesh 0.5 Micro 1 Micron Sieve
Ultra Thin Stainless Steel Woven Wire Mesh 0.5 Micro 1 Micron Sieve
Ultra Thin Stainless Steel Woven Wire Mesh 0.5 Micro 1 Micron Sieve
Ultra Thin Stainless Steel Woven Wire Mesh 0.5 Micro 1 Micron Sieve
Specifications
Brand Name :
TL
Model Number :
TLU 01
Place of Origin :
Hengshui,China
MOQ :
1 roll
Price :
2 to 20 us dollar/square meter
Supply Ability :
5000 rolls per week
Delivery Time :
14-30 working days
Packaging Details :
wooden carton
Material :
Stainless steel wire 304.316
Type :
Woven
Mesh Size :
1x30m / Roll
Usage :
printing wire mesh, filter
Hole shape :
Square hole
Width :
0.5m-3m or customized
Length :
standard 30m per roll
Description

0.5 micro 1 micron stainless steel ultra thin filter wire sieve mesh

Products Ultra thin 0.5 1 micron stainless steel wire sieve mesh
Material sus 201 202 304 304l 316 316l 310s 904l 2205 410 430 2205 2507 stainless steel wire.

Mest count

plain weave can be woven from 1- 400 mesh

twill weave can be woven from 2- 635 mesh

dutch wevae can be woven up to 500*3500 mesh
Hole shape square/round hole
Wire diameter 0.018-2.03mm
Stock size 1*30m/roll, 1.22*30m/roll, 1.5*30m/roll or customized.

Features:

Corrosion resistance.

Anti-acid and alkai

Anti-high temperature.

Good filter performance.

Long using life

Applicatiosn:

In acid, alkali environment conditions sieving and filtering.

Petroleum industry as mud mesh,.

Chemical fiber industry as screen mesh.

Plating industry as acid cleaning mesh.

Ultra Thin Stainless Steel Woven Wire Mesh 0.5 Micro 1 Micron SieveUltra Thin Stainless Steel Woven Wire Mesh 0.5 Micro 1 Micron Sieve

Stainless steel wire mesh size

Mesh/inch Wire diameter mm Aperture mm Mesh/inch Wire diameter mm Aperture mm
2mesh 1.8 10.90 60 mesh 0.15 0.273
3 mesh 1.6 6.866 70 mesh 0.14 0.223
4 mesh 1.20 5.15 80 mesh 0.12 0.198
5 mesh 0.91 4.17 90 mesh 0.11 0.172
6 mesh 0.80 3.433 100 mesh 0.10 0.154
8 mesh 0.60 2.575 120 mesh 0.08 0.132
10 mesh 0.55 1.990 140 mesh 0.07 0.111
12 mesh 0.50 1.616 150 mesh 0.065 0.104
14 mesh 0.45 1.362 160 mesh 0.065 0.094
16 mesh 0.40 1.188 180 mesh 0.053 0.088
18 mesh 0.35 1.060 200 mesh 0.053 0.074
20 mesh 0.30 0.970 250 mesh 0.04 0.061
26 mesh 0.28 0.696 300 mesh 0.035 0.049
30 mesh 0.25 0.596 325 mesh 0.03 0.048
40 mesh 0.21 0.425 350 mesh 0.03 0.042
50 mesh 0.19 0.318 500 mesh 0.025 0.0385

Plain dutch weave mesh

Mesh per inch(warp×weft) Wire diameter(warp×weft)
12×64mesh 0.58×0.40mesh
14×88mesh 0.50×0.33mesh
24×110mesh 0.355×0.25mesh
30×150mesh 0.23×0.18mesh
40×200mesh 0.18×0.14mesh
50×250mesh 0.14×0.11mesh
60×300mesh 0.14×0.09mesh
70×400mesh 0.12×0.08mesh

Twill weave mesh

Type Wire diameter aperture
inch mm inch mm
50×50 .010 .250 .0110 .28
50×50 .011 .280 .0120 .31
60×60 .006 .160 .0092 .23
60×60 .007 .180 .0097 .25
70×70 .007 .170 .0078 .20
80×80 .007 .180 .0060 .15
80×80 .006 .180 .0070 .18
90×90 .006 .140 .0061 .16
100×100 .005 .120 .0055 .14
110×110 .005 .120 .0051 .1295
120×120 .0037 .0940 .0064 .1168
150×150 .0026 .0660 .0041 .1041
160×160 .0025 .0635 .0038 .0965
180×180 .0023 .0584 .0033 .0838
200×200 .0021 .0533 .0029 .0737
250×250 .0016 .0406 .0024 .0610
270×270 .0016 .0406 .0021 .0533
300×300 .0051 .0381 .0018 .0457
325×325 .0014 .0356 .0017 .0432

Twilled dutch weave mesh

Mesh per inch(warp×weft) Wire diameter(warp×weft)
24mesh×220mesh 0.3×0.25
20mesh×250mesh 0.3×0.2
50mesh×500mesh 0.14×0.11
80mesh×700mesh 0.1×0.08
165mesh×800mesh 0.071×0.045
200mesh×600mesh 0.071×0.050
200mesh×1400mesh 0.14×0.09
165mesh×1400mesh 0.071×0.04
325mesh×2300mesh 0.035×0.025
400mesh×2800mesh 0.03×0.02

Reverse dutch weave mesh

Mesh per inch25.4mm warp×weft Wire diameter (warp×weft) Fineness of filtering micron
48×10 0.5×0.5 330
63×18 0.40×0.60 220
72×15 0.45×0.55 210
100×16 0.35×0.45 190
107×20 0.24×0.60 210
120×16 0.35×0.45 180
132×17 0.32×0.45 170
152×24 0.27×0.40 160
160×17 0.27×0.45 160
170×18 0.27×0.45 160
171×46 0.15×0.30 130
180×20 0.27×0.45 170
200×40 0.17×0.27 120
240×40 0.15×0.25 70
260×40 0.15×0.27 55
290×76 0.09×0.19 40
300×40 0.15×0.25 50
300×80 0.15×0.20 35
400×120 0.058×0.10 30
615×105 0.04×0.11 27
615×125 0.04×0.11 25
615×130 0.04×0.13 22
615×132 0.04×0.11 22
625×104 0.04×0.15 28
720×150 0.036×0.1 17
