SS Dutch Weave Wire Cloth 100 Micron Filter Mesh With Wear Resistant
SS Dutch Weave Wire Cloth 100 Micron Filter Mesh With Wear Resistant
SS Dutch Weave Wire Cloth 100 Micron Filter Mesh With Wear Resistant
SS Dutch Weave Wire Cloth 100 Micron Filter Mesh With Wear Resistant
Specifications
Brand Name :
TL
Model Number :
TL D03
Place of Origin :
Hengshui,China
MOQ :
1 roll
Price :
Negotiable according to quantity of order
Supply Ability :
3000 rolls per month
Packaging Details :
1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements.
Material :
Stainless steel 304
Width :
1.2m,1.5m or customized
Length :
30m or customized
Color :
Silver
Hole shape :
Square or customized
Wire diameter :
0.0183mm-2.03mm, 1-635mesh
Mesh size :
1-635mesh
Description

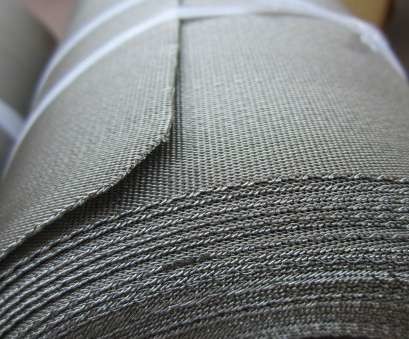

Stainless Steel Woven Wire Cloth 100 micron filter mesh,Wear-resistant stainless steel wire cloth

Stainless steel wire raw material is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth. T304 is the most common

Wire Materials: SUS302, 304, 316, 304L, 316L.
Characteristics: Square aperture, less rigid than plain weave, especially suitable for deforming, strong

wire cloth due to ratio of wire diameter and aperture, it is mostly used for filtration less than 63 μm .
Stainless steel wire meshTypical Weaving Patterns: Plain weave, twill weave, dutch weave.

Packing

stainless steel mesh made in small rolls,outside wooden cases.


Corrosion resistance.Main Features

Anti-acid and alkali.
Anti-high temperature.
Good filter performance.
Long using life
Applications:
Mining, chemical, food, petroleum, medicine, etc., mainly used in gas, liquid filtration and other media separation
1.Petroleum industry
2.Pharmaceutical industry
3.Food industry
4.Water treatment industry
5.Chemical industry
6.Paper making industry
7.Plastic recycling industry

Details sheet:

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
Inch MM Inch MM
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.91 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8
100X100 .0045 .114 .0055 .14 30.3 14.2
100X100 .004 .102 .0060 .15 36.0 11.0
100X100 .0035 .089 .0065 .17 42.3 8.3
110X110 .0040 .1016 .0051 .1295 30.7 12.4
120X120 .0037 .0940 .0064 .1168 30.7 11.6
150X150 .0026 .0660 .0041 .1041 37.4 7.1
160X160 .0025 .0635 .0038 .0965 36.4 5.94
180X180 .0023 .0584 .0033 .0838 34.7 6.7
200X200 .0021 .0533 .0029 .0737 33.6 6.2
250X250 .0016 .0406 .0024 .0610 36.0 4.4
270X270 .0016 .0406 .0021 .0533 32.2 4.7
300X300 .0051 .0381 .0018 .0457 29.7 3.04
325X325 .0014 .0356 .0017 .0432 30.0 4.40
400X400 .0010 .0254 .0015 .370 36.0 3.3
500X500 .0010 .0254 .0010 .0254 25.0 3.8
635X635 .0008 .0203 .0008 .0203 25.0 2.63

SS Dutch Weave Wire Cloth 100 Micron Filter Mesh With Wear ResistantSS Dutch Weave Wire Cloth 100 Micron Filter Mesh With Wear Resistant

Delivery Time
We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.

Mutual Benefit
If the products of our distributors are unmarketable due to the influence by market factors,we will seek customers in the same market or near market who are in need of the products to help the distributors to handle unsalable products.

Our other products

SS Dutch Weave Wire Cloth 100 Micron Filter Mesh With Wear Resistant

SS Dutch Weave Wire Cloth 100 Micron Filter Mesh With Wear Resistant

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.
