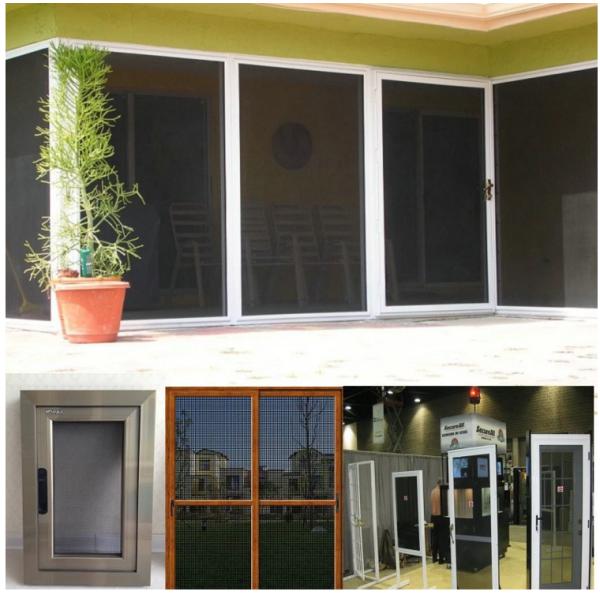

Window screen black powder coating stainless steel woven wire mesh
Window screen black powder coating stainless steel woven wire mesh
Window screen black powder coating stainless steel woven wire mesh
Window screen black powder coating stainless steel woven wire mesh
Specifications
Brand Name :
TL
Place of Origin :
Hengshui,China
MOQ :
1 roll
Price :
30-50 us dollar/square meter
Supply Ability :
3000 rolls per month
Delivery Time :
20 working days
Packaging Details :
Inside, each roll with waterproof material,according to your requirement
Material :
SUS201, 304/316,316L
Type :
Wire Cloth
Application :
Screen, Window screen
Weave Style :
Plain Weave
Technique :
Woven
Surface treatment :
powder coated,epoxy coacted,pvc coated
Common color :
Black , gray
Mesh :
14x14,14x16,16x16,16x18 and 14x18
Width :
100cm(39"),60cm,90cm,120cm,150cm
Length :
10m or 30m
Description

Window screen black powder coating stainless steel woven wire mesh

Product name Stainless Steel Security Bulletproof Mesh/security Steel Mesh Screen Door
Common material SUS 201, 304, 316, 316L
Mesh count 11-20 mesh
Role size 1x30m, 0.914x30m,1.22x30m, or as required
Application diamond mesh is also called super security screen bulletproof mesh, King kong network, super safety netting. It is a new type of high-end home market and suitable for assembly in the relatively new high-end doors and windows,. It meets the needs of the high-end customers. It can play the effect of pest control can play the role of security, but does not affect the appearance. Net perception: transparent without a sense of vertigo, indoor to outdoor look such as a layer of colored glass lit, outdoor to indoor look is vague and ambiguous.
Surface treatment High quality powder coated
Technique Woven wire mesh

Window screen black powder coating stainless steel woven wire mesh

Window screen black powder coating stainless steel woven wire mesh

Stainless steel mesh are classified in sorts:

1, stainless steel plain weave mesh.2. Stainless steel twill weave mesh

3. Stainless steel bamboo pattern mesh.4. Five comprehensive stainless steel mesh

5. Stainless steel perforated metal.6. Stainless steel crimped wire mesh

7. Stainless steel chain link wire mesh.8. Stainless steel expanded metal

9.Stainless steel welded wire mesh 10. Stainless steel hexagonal wire mesh

11. Stainless steel dutch wire mesh.12. Stainless steel barbecue wire mesh

13. Stainless steel mine screen mesh 14. Stainless steel hexmetal mesh

Window screen black powder coating stainless steel woven wire mesh

Details sheet:

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
Inch MM Inch MM
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.91 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8
100X100 .0045 .114 .0055 .14 30.3 14.2
100X100 .004 .102 .0060 .15 36.0 11.0
100X100 .0035 .089 .0065 .17 42.3 8.3
110X110 .0040 .1016 .0051 .1295 30.7 12.4
120X120 .0037 .0940 .0064 .1168 30.7 11.6
150X150 .0026 .0660 .0041 .1041 37.4 7.1
160X160 .0025 .0635 .0038 .0965 36.4 5.94
180X180 .0023 .0584 .0033 .0838 34.7 6.7
200X200 .0021 .0533 .0029 .0737 33.6 6.2
250X250 .0016 .0406 .0024 .0610 36.0 4.4
270X270 .0016 .0406 .0021 .0533 32.2 4.7
300X300 .0051 .0381 .0018 .0457 29.7 3.04
325X325 .0014 .0356 .0017 .0432 30.0 4.40
400X400 .0010 .0254 .0015 .370 36.0 3.3
500X500 .0010 .0254 .0010 .0254 25.0 3.8
635X635 .0008 .0203 .0008 .0203 25.0 2.63

Stainless steel wire mesh processing

--Stainless steel mesh panels

Materials: stainless steel woven mesh, copper mesh, dutch wire mesh, stainless steel sinter mesh, stainless steel square mesh, metal plate mesh, perforated metal and other metal mesh.

--Stainless steel covered edging mesh

Edge wrapping material: stainless steel plate.

Product shape:rectangular,square, round,elliptic, ring, rectangular, cap type, waist-shaped, special -shaped.

--Stainless steel spot welding screen.

Materials: stainless steel woven mesh, copper mesh, dutch mesh, stainless steel sinter mesh, stainless steel square mesh, metal plate mesh, expanded metal, perforated metal and other metal mesh.

Product structure: single, double, three, four, five, multi-layer.

Processing size: 6 mm to 650 mm.

Product classification: single layer filter screen, multilayer spot welding filter, packet edge filter, combined filter screen.
