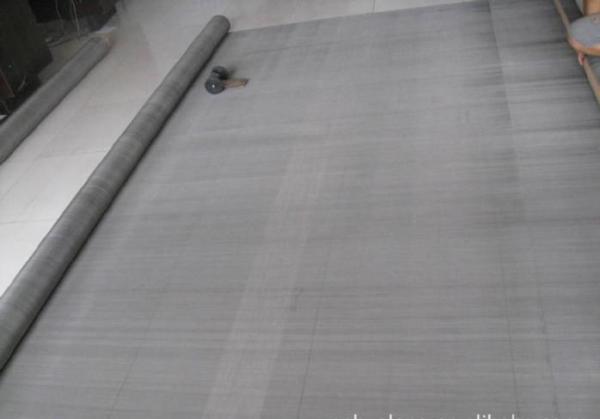

Plain Weave Stainless Steel Filter Screen 25 30 Micron Corrosion Resistance
Plain Weave Stainless Steel Filter Screen 25 30 Micron Corrosion Resistance
Plain Weave Stainless Steel Filter Screen 25 30 Micron Corrosion Resistance
Plain Weave Stainless Steel Filter Screen 25 30 Micron Corrosion Resistance
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui,China
MOQ :
1 rolls
Price :
According to quantity negotiated
Supply Ability :
500 Square Meter
Packaging Details :
Inside waterproof paper,outside plastic paper and wooden carton or as per client requirement
Material :
Stainless steel
Technique :
Woven
Weave type :
Plain weave
Mesh size :
1-2800
Feature :
Corrosion and rust resistance
Roll size :
1mx30m, 1.22mx30m, 1.5mx30m
Description

25 30 micron plain weave stainless steel wire mesh

Stainless steel wire cloth refers to stainless steel woven wire mesh used in filtering liquid gas and pulp. The opening can be square ,rectangular or special opening. Normally, this kind of wire mesh has standard opening sizes, uniform opening ,good permeability and high strength. The raw materials should be chosen according to different environment of applications.

Plain Weave Stainless Steel Filter Screen 25 30 Micron Corrosion ResistancePlain Weave Stainless Steel Filter Screen 25 30 Micron Corrosion ResistancePlain Weave Stainless Steel Filter Screen 25 30 Micron Corrosion Resistance

Material SS wire 201, 304, 304L, 316, 316L, 431, 321 347 etc.
Wire diameter 0.018-2.03mm
Woven style plain weave,twill weave,dutch weave,reversed dutch weave,crimped weave
Mesh counts

Plain weave wire mesh can be woven up to 400 mesh.

Twill weave wire mesh can be woven from 30 to 635 mesh.
Packaging Details inner kraft, outside plastic cloth, put into wooden pallet or case
Application Plain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets.

Woven type of stainless steel plain weave wire mesh

Plain Weave Stainless Steel Filter Screen 25 30 Micron Corrosion Resistance

Plain Weave Stainless Steel Filter Screen 25 30 Micron Corrosion Resistance

Data sheet of plain weave stainless steel wire mesh

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
Inch MM Inch MM
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.91 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8
100X100 .0045 .114 .0055 .14 30.3 14.2
100X100 .004 .102 .0060 .15 36.0 11.0
100X100 .0035 .089 .0065 .17 42.3 8.3
110X110 .0040 .1016 .0051 .1295 30.7 12.4
120X120 .0037 .0940 .0064 .1168 30.7 11.6
150X150 .0026 .0660 .0041 .1041 37.4 7.1
160X160 .0025 .0635 .0038 .0965 36.4 5.94
180X180 .0023 .0584 .0033 .0838 34.7 6.7
200X200 .0021 .0533 .0029 .0737 33.6 6.2
250X250 .0016 .0406 .0024 .0610 36.0 4.4
270X270 .0016 .0406 .0021 .0533 32.2 4.7
300X300 .0051 .0381 .0018 .0457 29.7 3.04
325X325 .0014 .0356 .0017 .0432 30.0 4.40
400X400 .0010 .0254 .0015 .370 36.0 3.3
500X500 .0010 .0254 .0010 .0254 25.0 3.8
635X635 .0008 .0203 .0008 .0203 25.0 2.63

Packing

Plain Weave Stainless Steel Filter Screen 25 30 Micron Corrosion Resistance
