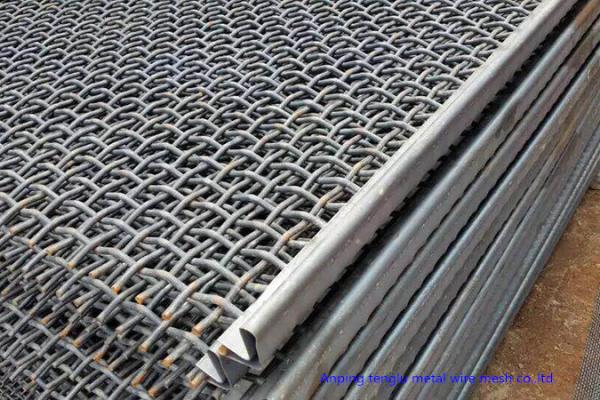

Hooked Vibrating Sieve Screen Mesh SUS304 Crimped Customized For Mining / Quarry
Hooked Vibrating Sieve Screen Mesh SUS304 Crimped Customized For Mining / Quarry
Hooked Vibrating Sieve Screen Mesh SUS304 Crimped Customized For Mining / Quarry
Hooked Vibrating Sieve Screen Mesh SUS304 Crimped Customized For Mining / Quarry
Hooked Vibrating Sieve Screen Mesh SUS304 Crimped Customized For Mining / Quarry
Hooked Vibrating Sieve Screen Mesh SUS304 Crimped Customized For Mining / Quarry
Specifications
Place of Origin :
Hengshui,China
MOQ :
2 rolls
Price :
According to order quantity can be negotiable
Supply Ability :
2300 Meter/Meters per Month
Packaging Details :
inner kraft, outside plastic cloth, put into wooden pallet or case
Material :
Galvanized Steel Wire
Technique :
Woven, Crimped
Weave Style :
plain crimped/flat top crimped, plain crimped/flat top crimped
Wire gauge :
1-10mm
Length :
30m or customized
Width :
1m, 1.2m, 2m or customized
Hole shape :
Square
Sample :
Available
Description

Hooked vibrating sieve screen mesh for Mining and Quarry, SUS304 Crimped Wire Mesh crusher screen mesh

Vibrating screen mesh material:

Manganese stee(65Mn,30Mn)l,high carbon steel(72a,82b,60,55,45),spring steel,stainless steel(316,304,202).

Specification Of vibrating Screen Mesh

Wire Diameter: 0.5mm to 15mm;

Mesh size: 1mm to 100mm;

Length & width: can be required;

Vibrating screen mesh advantage:

The manganese steel is very abrasive and corrosive. And the stainless steel material is very corrosive.According to the different application, also choose different materials.Crimped wire offers stable structure and good strength

Hooked Vibrating Sieve Screen Mesh SUS304 Crimped Customized For Mining / Quarry


Hooked Vibrating Sieve Screen Mesh SUS304 Crimped Customized For Mining / Quarry

Stainless Steel Wire Mesh
Mesh/inch Wire Diameter
(mm)		 Aperture
(mm)		 Mesh/inch Wire diameter
(mm)		 Aperture
(mm)
2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 400mesh 0.025 0.0385
Width of Stainless Steel Wire Mesh: 0.6m-1.5m

About our company

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.

Hooked Vibrating Sieve Screen Mesh SUS304 Crimped Customized For Mining / Quarry

We are specialized in manufacture and export of stainless steel wire mesh product,if you have request please contact us.We will provide professional service and guarantee on time delivery.
