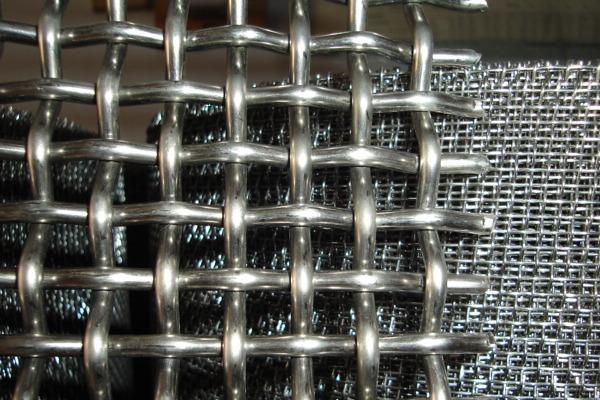

500 micron 304 stainless steel wire mesh / cloth / woven meshultra thin fine 304 stainless steel woven wire mesh

• Stainless steel wire mesh or wire cloth can be plain weave, twill weave, Dutch plain weave or Dutch twill weave, while square woven wire mesh is made by either plain weave or twill weave. Woven wire mesh with equal mesh count horizontally or vertically has square opening, hence also called square opening wire mesh, or single layer wire mesh.
  Material: SUS304, SUS304L, SUS316 SUS316L SUS201,SUS202,SUS430 ect.

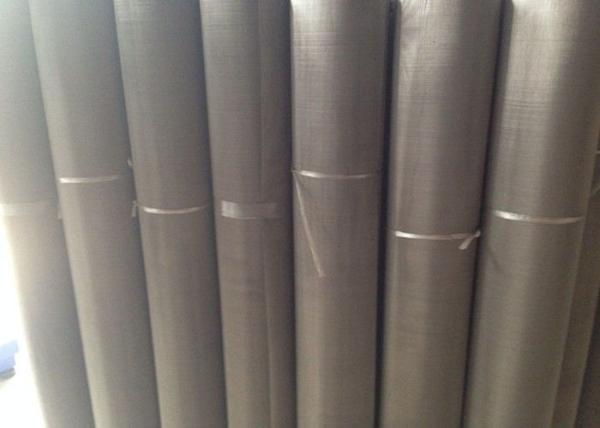

  Standard roll size: Standard width of stainless steel wire mesh: 1m or 48"standard roll length of stainless steel wire mesh: 30m or 100'.
  Wire Mesh Packing: wrapped with moister-proof paper, then in wooden cases.

  mesh/inch	wire gage SWG	aperture mm
  3	14	6.27
  4	16	4.27
  5	18	3.86
  6	18	3.86
  8	20	2.26
  10	20	1.63
  20	30	0.95
  30	34	0.61
  40	36	0.44
  50	38	0.36
  60	40	0.30
  80	42	0.21
  100	44	0.172
  120	44	0.13
  150	46	0.108
  160	46	0.097
  180	47	0.09
  200	47	0.077
  250	48	0.061
  280	49	0.060
  300	49	0.054
  350	49	0.042
  400	50	0.0385
  Roll width:0.6m-1.5m

Stainless steel wire cloth refers to stainless steel woven wire mesh used in filtering liquid gas and pulp. The opening can be square ,rectangular or special opening. Normally, this kind of wire mesh has standard opening sizes, uniform opening ,good permeability and high strength. The raw materials should be chosen according to different environment of applications.

Available woven type for choose of stainless steel wire mesh

»Standard opening sizes,uniform opening,good permeability and high strength.

» Acid,alkali,high temperature resistance

» Excellent capbility for rub and tensile

» Stable filtering effect

» Filter layer ,easy cleaning

Stainless Steel Wire Mesh Application:

used in acid, alkali conditions

screening and filtering, the oil industry make mud network, chemical

industry, screen filters,electroplating industry for pickling network.

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
