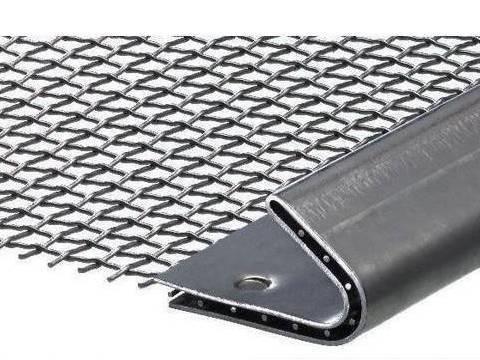

Lock Crimped Wire Mesh Vibrating Woven Wire Screen Stainless Steel 1-10mm Wire Gauge
Lock Crimped Wire Mesh Vibrating Woven Wire Screen Stainless Steel 1-10mm Wire Gauge
Lock Crimped Wire Mesh Vibrating Woven Wire Screen Stainless Steel 1-10mm Wire Gauge
Lock Crimped Wire Mesh Vibrating Woven Wire Screen Stainless Steel 1-10mm Wire Gauge
Specifications
Place of Origin :
Hengshui,China
MOQ :
2 rolls
Price :
According to order quantity can be negotiable
Supply Ability :
2300 Meter/Meters per Month
Packaging Details :
inner kraft, outside plastic cloth, put into wooden pallet or case
Material :
Galvanized Steel Wire, galvanized stainless
Technique :
Woven, Crimped
Weave Style :
plain crimped/flat top crimped
Wire gauge :
1-10mm
Roll size :
1mx30m, 1.22mx30m, 1.5mx30m
Wire diameter :
0.71mm-12.7mm
Sample :
Available
Usage :
Mineral,vibrating screen
Description

Lock Crimped Vibrating Woven Wire Screen/Stainless Steel Crimped Wire Mesh,Crimped Wire Vibrating Screen Mesh for Coal m

Vibrating Screen Mesh is available in different wire diameters, mesh opening and open area. This is widely used for various applications such as screening, sizing, grading, shifting, separating, scalping and washing. This wire mesh can be also custom designed in case plungers and vibrating rods are needed to insert for protection against tearing. It is installed above rubber beads to avoid metal to metal contacts.

Name
Vibrating Screen Mesh
High carbon steel:
65Mn,45#,50#,55#,60#,70#,,72A
Wire diameter
0.8mm-12.7mm,Our finished wire is inspected by third party SGS,Tolerance+_0.03mm .
Aperture/Opening
2mm to 100mm,tolerance +-3%

Weaving style:
Plain weave Double crimped Intermediate crimped Flat top crimped

Wire Gauge(SWG) Wire Diameter( mm) Mesh/Inch Aperture(mm) Weight(kg)
6 4.8 1 20.6 11.5
8 4.05 2 9 16.5
10 3.2 2 10 10.5
12 2.6 3 5.9 10.5
14 2.0 3 6.5 6
16 1.6 4 5 5.5
17 1.4 5 5.1 5.0
18 1.2 5 4 3.6
19 1.0 6 3.2 3.0
21 0.8 7 2.8 2.3
22 0.7 8 2.5 2

Stainless steel crimped wire mesh features:

  • Great strength and solid structure;
  • Good rust and corrosion resistance;
  • High loading capacity;
  • Long service life;
  • Beautiful surface.

Stainless steel crimped wire mesh applications:

  • Serves as vibrating screen, filter element, infill panel, barbecue grill, baking rack;
  • Used in mining, chemical, petroleum, construction industries;
  • Designed into decoration, artwork.

Lock Crimped Wire Mesh Vibrating Woven Wire Screen Stainless Steel 1-10mm Wire Gauge

About our company

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.

Lock Crimped Wire Mesh Vibrating Woven Wire Screen Stainless Steel 1-10mm Wire Gauge

We are specialized in manufacture and export of stainless steel wire mesh product,if you have request please contact us.We will provide professional service and guarantee on time delivery.
