500 300 250 Micron 304 stainless steel wire mesh for filter,1.2m wide 30m length sand filter woven wire mesh
500 300 250 Micron 304 stainless steel wire mesh for filter,1.2m wide 30m length sand filter woven wire mesh
500 300 250 Micron 304 stainless steel wire mesh for filter,1.2m wide 30m length sand filter woven wire mesh
500 300 250 Micron 304 stainless steel wire mesh for filter,1.2m wide 30m length sand filter woven wire mesh
Specifications
Place of Origin :
Hengshui,China
MOQ :
50 square meter
Price :
0.15-10 us dollar/square meter
Supply Ability :
3000 rolls per month
Delivery Time :
5 working days for item in stock
Packaging Details :
Water proof paper inner plastic bags with wooden cases on pallet;or as customer request
Material :
Stainless steel wire
Product Name :
Stainless steel wire mesh
Weave type :
Twill
Application :
Screen
Wire diameter :
0.018mm-6mm
Characteristics :
acid and alkali resistant
Width :
0.9144m, 1.22m or customized
Length :
30m or customized
Description

500 300 250 Micron 304 stainless steel wire mesh for filter,1.2m wide 30m length sand filter woven wire mesh

Stainless steel woven wire mesh offer flat surface, firm structure and good integrity. It is widely used in industry, agriculture, construction, breeding, transport, mining exploitation, transport, entertainment facilities and other public places.

Materials: Stainless steel woven wire meshes are generally made of stainless steel Type 302,304,304L,316,316L,321 and 430 etc. Many different grades of stainless are used in wire cloth.T304 is the most common one, but others are also used in specific applications

Weaving Types: Plain or Twilled Weave, Plain or Twilled Dutch Weave, Five heddle Weave, Reverse Plain or Twilled Dutch Weave

The weaving is determined according to our customers' specific requirements, such as the material, the wire diameter, the size of the mesh , width and length.

Stainless steel woven wire mesh is widly used in mining, petroleum, chemical industry, food industry , pharmaceutical industry and sifting and screening mesh in chemical and chemical fiber industry.

Specifications
Mesh Inch S.W.G Aperture (mm) Wire Diameter (mm) Effective (%) Weight (Kg/m2)
3mesh 14 6.27 2.2 62 7
5mesh 22 4.36 0.711 76 1.3
6mesh 22 3.52 0.711 63 1.6
8mesh 24 2.5 0.559 67 1.5
10mesh 26 2.08 0.46 67 1.1
12mesh 26 1.74 0.457 68 1.4
14mesh 26 1.36 0.46 57 1.4
16mesh 28 1.21 0.376 55 1.2
18mesh 30 1.1 0.315 60 0.85
20mesh 30 0.95 0.315 58 0.95
24mesh 32 0.78 0.274 55 0.85
26mesh 32 0.74 0.274 51 0.7
28mesh 34 0.67 0.234 50 0.75
32mesh 34 0.56 0.234 50 0.84
36mesh 34 0.47 0.234 45 0.95
40mesh 36 0.44 0.193 50 0.8
50mesh 38 0.36 0.152 46 0.58
60mesh 40 0.3 0.122 50 0.45
80mesh 40 0.198 0.12 44 0.58
100mesh 42 0.154 0.1 37 0.5
120mesh 44 0.13 0.081 40 0.39
160mesh 46 0.097 0.61 32 0.3
170mesh 47 0.09 0.05 41 0.213
180mesh 47 0.09 0.051 410 0.24
190mesh 47 0.083 0.051 40 0.24
200mesh 48 0.086 0.041 46 0.17
220mesh 48 0.074 0.041 41 0.19
240mesh 48 0.065 0.041 39 0.2
250mesh 48 0.061 0.041 38 0.22
260mesh 48 0.057 0.041 34 0.22
280mesh 49 0.06 0.031 31 0.14
300mesh 49 0.054 0.031 40 0.15
320mesh 49 0.048 0.031 39 0.16
350mesh 49 0.042 0.031 36 0.16
400mesh 50 0.0385 0.025 39 0.013
450mesh 50 0.0314 0.025 37 0.14
500mesh 50 0.0258 0.025 35 0.156
Product Description

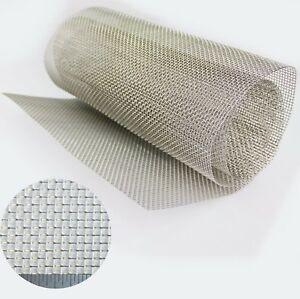

Stainless steel wire mesh

Plain weave stainless steel wire mesh
Plain weave is the most commonly used and simple of weaving.it adopted one over one under way,As 1*1 weave.The wire hole is square shape.
Twill Weave stainless steel wire mesh
Twill weave is done by passing the weft thread over one or more warp threads and then under two or more warp threads and so on,For example, 2*2,4*4 weave.
Dutch Weave stainless steel wire mesh
It is woven with a large wire diameter in the warp direction and a relatively smaller wire in the weft direction.

Details sheet:

Stainless steel wire mesh plain weave

500 300 250 Micron 304 stainless steel wire mesh for filter,1.2m wide 30m length sand filter woven wire mesh

500 300 250 Micron 304 stainless steel wire mesh for filter,1.2m wide 30m length sand filter woven wire mesh

Our products series

500 300 250 Micron 304 stainless steel wire mesh for filter,1.2m wide 30m length sand filter woven wire mesh



Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.It have been 15 years that we manufacture and exported wire mesh product,our main product is stainless steel woven wire mesh,we keep the good manufacture technique of wire mesh product,to client orders,we will finish it within our shortest production time while keep mesh quality.

500 300 250 Micron 304 stainless steel wire mesh for filter,1.2m wide 30m length sand filter woven wire mesh
