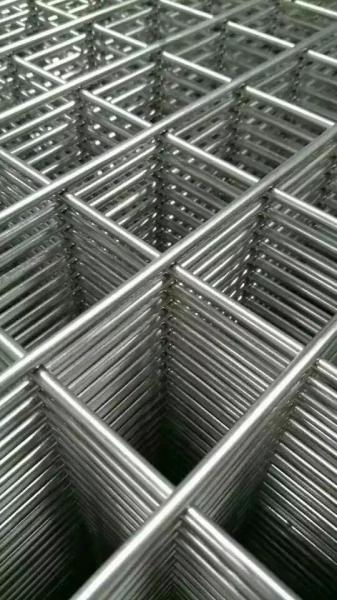

8 10 Gauge Welded Wire Mesh 2x2 3x3 4x4 6x6 10/10 Galvanized Hign Tensile Strength
8 10 Gauge Welded Wire Mesh 2x2 3x3 4x4 6x6 10/10 Galvanized Hign Tensile Strength
8 10 Gauge Welded Wire Mesh 2x2 3x3 4x4 6x6 10/10 Galvanized Hign Tensile Strength
8 10 Gauge Welded Wire Mesh 2x2 3x3 4x4 6x6 10/10 Galvanized Hign Tensile Strength
Specifications
Place of Origin :
Hengshui,China
MOQ :
500 square meter
Supply Ability :
1500 square meters per day
Packaging Details :
plastic film inside and waterproof paper outside
Material :
Stainless steel
Type :
Welded mesh,wire mesh
Hole shape :
Square
Application :
Fence mesh
Yield Strength :
hign tensile,steel wire mesh
Width :
0.5-1.8M
Description

Steel welded wire mesh,8 10 gauge 2x2 3x3 4x4 6x6 10/10 galvanized welded wire mesh,stainless steel welded wire mesh

We supply Galvanized Welded Wire Mesh, Stainless Steel Welded Wire Mesh and

PVC Welded Wire Mesh with high quanlity,favorable price and excellent service.


1) Material about welded wire mesh

Electro galvanized wire, hot-dipped galvanized.

[Electro galvanized]

Electro galvanizing, uniform coating and thin thickness. Coating are usually only 3-15 microns with bright appearance. Common electro galvanized wire on zinc amount is 8-13 g/m².
[Hot-dipped galvanized]
Hot-dipped galvanized, coated thickness and nonuniform coating. Coating are usually 45-300 microns with darker color and good corrosion resistance. Hot-dip galvanized wire amout of zinc: 30-60 g/m²

2) Welding Type

Electro galvanized before welded wire mesh

Electro galvanized after welded wire mesh

Hot-dipped galvanized before welded wire mesh

Hot-dipped galvanized after welded wire mesh

Iron/galvanized wire+pvc coated


PVC Coated Welded Mesh:
Opening Wire Diameter(BWG)
In inch In metric unit(mm)
1/4"x1/4" 6.35mx6.35mm 21,22,23,24,24,25
1/2"x1/2" 12.7mmx12.7mm 16,17,18,19,20,21
3/4"x3/4" 19mmx19mm 16,17,18,19,20,21
1"x1" 25.4mmx25.4mm 15,16,17,18,19,20

Technical Note:
1.Standard roll length:30m;width:0.5m to 2.5
2.Special sizes avaliable as request
3.Packing:in wooden pallet or in rolls .Custom packing available at request








8 10 Gauge Welded Wire Mesh 2x2 3x3 4x4 6x6 10/10 Galvanized Hign Tensile Strength

8 10 Gauge Welded Wire Mesh 2x2 3x3 4x4 6x6 10/10 Galvanized Hign Tensile Strength

8 10 Gauge Welded Wire Mesh 2x2 3x3 4x4 6x6 10/10 Galvanized Hign Tensile Strength


8 10 Gauge Welded Wire Mesh 2x2 3x3 4x4 6x6 10/10 Galvanized Hign Tensile Strength





Our other products


We have manufacture and export stainless steel wire mesh for 15 years so far,during this period of time we have gathered rich experience in terms of production technique of wire mesh and export standard,this lead us have ability to provide good quality wire mesh product while ensure shortest lead time.
Our stainless steel woven wire mesh woven type cover plain weave,twill weave,dutch weave,plain dutch weave,twill dutch weave.
For plain weave,our mesh size range is 1-500 mesh,
twill weave 325×325mesh,
plain dutch 70×400mesh,
twill dutch 400×2800mesh,
reverse dutch weave 720×150mesh.
Our company website is www.stainlesssteelwiremeshfactory.com,our product range also cover following items,
  • stainless steel woven wire mesh
  • welded wire mesh
  • crimped wire mesh
  • hexagonal wire mesh
  • expanded wire mesh

8 10 Gauge Welded Wire Mesh 2x2 3x3 4x4 6x6 10/10 Galvanized Hign Tensile Strength

8 10 Gauge Welded Wire Mesh 2x2 3x3 4x4 6x6 10/10 Galvanized Hign Tensile Strength

The available material for choose of wire mesh include stainless steel,low carbon steel,galvanized,brass,copper,epoxy,zinc coated.
We welcome clients enquiry from all over the world.
