4×4 Mesh Size 100 Micron Square Wire Mesh Filter Multifunctional For Vibrating Screens
4×4 Mesh Size 100 Micron Square Wire Mesh Filter Multifunctional For Vibrating Screens
4×4 Mesh Size 100 Micron Square Wire Mesh Filter Multifunctional For Vibrating Screens
4×4 Mesh Size 100 Micron Square Wire Mesh Filter Multifunctional For Vibrating Screens
4×4 Mesh Size 100 Micron Square Wire Mesh Filter Multifunctional For Vibrating Screens
4×4 Mesh Size 100 Micron Square Wire Mesh Filter Multifunctional For Vibrating Screens
4×4 Mesh Size 100 Micron Square Wire Mesh Filter Multifunctional For Vibrating Screens
4×4 Mesh Size 100 Micron Square Wire Mesh Filter Multifunctional For Vibrating Screens
Specifications
Place of Origin :
Hengshui
MOQ :
2 rolls
Supply Ability :
600 rolls per month
Packaging Details :
Inside:bubble wrap Outside :wooden case or as required
Material: :
ss201 304 304L 316 316L stainless steel wire
Sample :
Available
Technique :
Woven
Hole shape :
Square Hole
Mesh count :
2-650mesh
Weave style :
Plain weave
Description

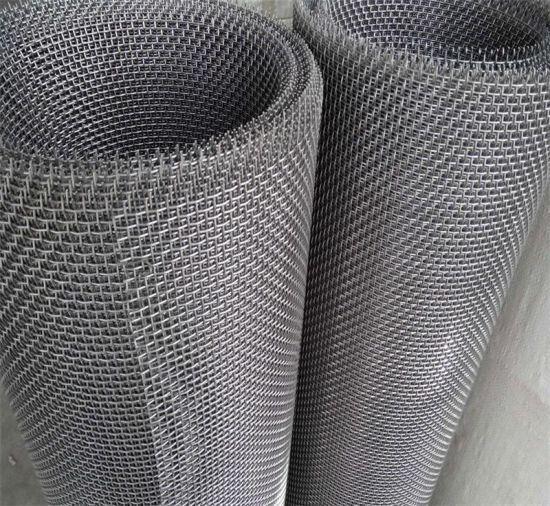

Multifunctional woven stainless steel wire mesh for vibrating screens,4×4 mesh size 100 micron square wire mesh filter

Stainless steel woven wire mesh offer flat surface, firm structure and good integrity. It is widely used in industry, agriculture, construction, breeding, transport, mining exploitation, transport, entertainment facilities and other public places.

Stainless steel wire mesh specification

Mesh count: 0.5 mesh - 2800 mesh

Wire diameter: 0.025mm - 2.0mm

Weave type: plain, twill, plain dutch, twill dutch, reverse dutch

Material: AISI/SUS 201,202,304,304L,316,316L,310,310S,430

Width: 2FT, 3FT, 4FT, 5FT etc

Standard: A580 , JIS6 , GBT

Material SS wire 201, 304, 304L, 316, 316L, 431, 321 347 etc.
Wire diameter 0.018-2.03mm
Woven style plain weave,twill weave,dutch weave,reversed dutch weave,crimped weave
Mesh counts

Plain weave wire mesh can be woven up to 400 mesh.

Twill weave wire mesh can be woven from 30 to 635 mesh.
Packaging Details inner kraft, outside plastic cloth, put into wooden pallet or case
Application Plain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets.





We can design various types of products according to our customers needs, you can find any products here, for special designs please send your sample to us.



1. Mesh Rolls

2. Mesh Belts

3. Mesh Sheets

4. Mesh Ribbon

5. Mesh Tubes

6. Sintered mesh

7. Crimped mesh

8. Decoration mesh

Available woven type for choose of stainless steel wire mesh

4×4 Mesh Size 100 Micron Square Wire Mesh Filter Multifunctional For Vibrating Screens

Stainless Steel Weaving Wire Mesh Plain Weave
Mesh/inch Diameter Opening
mm inch mm inch
60 0.16 0.006 0.26 0.01
70 0.12 0.005 0.24 0.01
80 0.12 0.005 0.2 0.008
100 0.1 0.004 0.15 0.006
104 0.06 0.002 0.18 0.007
120 0.08 0.003 0.13 0.005
140 0.07 0.003 0.11 0.004
150 0.05 0.002 0.12 0.005
160 0.04 0.002 0.12 0.005
165 0.05 0.002 0.1 0.004
180 0.05 0.002 0.09 0.004
180 0.04 0.002 0.1 0.004
200 0.05 0.002 0.08 0.003
200 0.04 0.002 0.09 0.003
220 0.05 0.002 0.07 0.003
230 0.03 0.001 0.08 0.003
250 0.04 0.002 0.06 0.002
250 0.03 0.001 0.07 0.003
270 0.03 0.001 0.06 0.003
280 0.035 0.001 0.06 0.002
300 0.03 0.001 0.05 0.002
325 0.025 0.001 0.05 0.002
325 0.03 0.001 0.05 0.002
350 0.022 0.001 0.05 0.002
370 0.022 0.001 0.05 0.002
400 0.022 0.001 0.04 0.002
420 0.022 0.001 0.04 0.002
450 0.02 0.001 0.04 0.001

4×4 Mesh Size 100 Micron Square Wire Mesh Filter Multifunctional For Vibrating Screens

4×4 Mesh Size 100 Micron Square Wire Mesh Filter Multifunctional For Vibrating Screens

4×4 Mesh Size 100 Micron Square Wire Mesh Filter Multifunctional For Vibrating Screens
