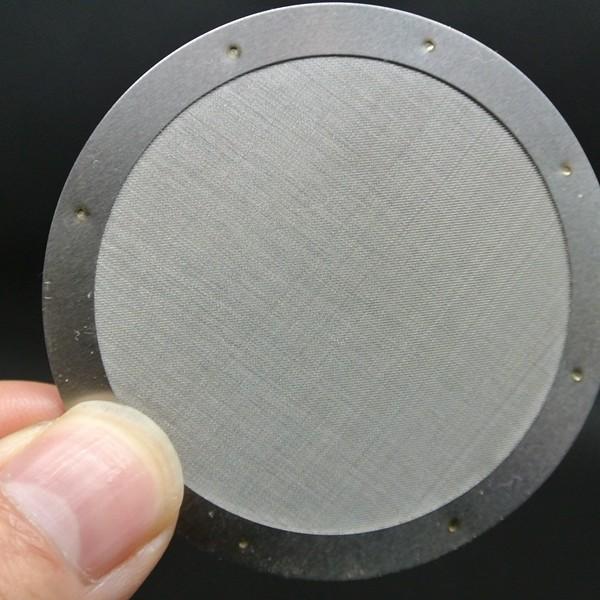

Round Disc 304 Stainless Steel Filter Mesh 0.25 1 1.5 Inch Plain Weave Style
Round Disc 304 Stainless Steel Filter Mesh 0.25 1 1.5 Inch Plain Weave Style
Round Disc 304 Stainless Steel Filter Mesh 0.25 1 1.5 Inch Plain Weave Style
Round Disc 304 Stainless Steel Filter Mesh 0.25 1 1.5 Inch Plain Weave Style
Specifications
Place of Origin :
Hengshui,China
MOQ :
100 Pieces
Price :
According to order quantity,negotiable
Supply Ability :
5000 Pieces per week
Packaging Details :
1)Standard export packing in carton or wooden box. 2)According to the requirements of the customer.
Material :
Stainless steel 304.316
Hole Shape :
Round Square
Mesh count :
2-635 Mesh
Thickness :
0.35-0.5mmm
Weave style :
Plain
Diameter :
Usually 5-600mm
Description

14 16 mesh stainless steel round metal filter disc,304 Stainless steel 0.25 1 1.5 inch round screen filter mesh disc

Filter disc shape:Round, rectangle, square, oval, circular, cap, waist and abnormity.
Filter disc structure: Single layer, double layer and multi-layer.
Process Technique: Spot welded, edge covering and sintered.
Material: Stainless steel mesh, galvanized wire mesh, copper wire mesh, black wire mesh, brass wire mesh, nickel wire mesh, monel wire mesh and inconel wire mesh etc.
Edge material: Stainless steel sheet, copper sheet, galvanized sheet, aluminum sheet, lowcarbon iron sheet, rubber, plastic etc.
Filter packs out diameter: Usally 5mm-600mm
Filter disc is mainly used in distillation, absorption, evaporation and filteration process of rubber
plastic industry, the screening of grain and oil, petroleum, chemical industry, light industry, medicine.
metallurgy, machinery, shipbuilding and other industries. Can sol be used as air filter for car.
All the shapes of the disc can be customized.

Round Disc 304 Stainless Steel Filter Mesh 0.25 1 1.5 Inch Plain Weave Style

(filtermesh) is a filter mesh, which is processed by wire mesh of different meshes. Its function is to filter the melt flow and increase the flow resistance, so as to filter out mechanical impurities and improve the effect of mixing or plasticizing.

It has the properties of acid resistance, alkali resistance, temperature resistance and wear resistance; it is mainly used in mining, petroleum, chemical, food, pharmaceutical, machinery manufacturing and other industries. The filter is divided into a textile fiber filter and a metal filter. Machines that install filters are called filters that filter natural water and food.

Woven type of stainless steel filter disc

Details sheet:

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
Inch MM Inch MM
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.91 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8
100X100 .0045 .114 .0055 .14 30.3 14.2
100X100 .004 .102 .0060 .15 36.0 11.0
100X100 .0035 .089 .0065 .17 42.3 8.3
110X110 .0040 .1016 .0051 .1295 30.7 12.4
120X120 .0037 .0940 .0064 .1168 30.7 11.6
150X150 .0026 .0660 .0041 .1041 37.4 7.1
160X160 .0025 .0635 .0038 .0965 36.4 5.94
180X180 .0023 .0584 .0033 .0838 34.7 6.7
200X200 .0021 .0533 .0029 .0737 33.6 6.2
250X250 .0016 .0406 .0024 .0610 36.0 4.4
270X270 .0016 .0406 .0021 .0533 32.2 4.7
300X300 .0051 .0381 .0018 .0457 29.7 3.04
325X325 .0014 .0356 .0017 .0432 30.0 4.40
400X400 .0010 .0254 .0015 .370 36.0 3.3
500X500 .0010 .0254 .0010 .0254 25.0 3.8
635X635 .0008 .0203 .0008 .0203 25.0 2.63

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen

Round Disc 304 Stainless Steel Filter Mesh 0.25 1 1.5 Inch Plain Weave Style

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.
