AISI316 Reverse Dutch Weave Stainless Steel Woven Wire Mesh For Extruder Screen
AISI316 Reverse Dutch Weave Stainless Steel Woven Wire Mesh For Extruder Screen
Specifications
Place of Origin :
Hengshui,China
MOQ :
1 roll
Price :
1.99-50 us dollar per square meter
Supply Ability :
3000 rolls per month
Packaging Details :
1.packing with water-proof paper inside and outside with weaving bag or bubble film wooden pallet or wooden case 2.the special packing we can make it according to the customers' requirement.
Material :
Stainless steel 304 316
Type :
Woven wire mesh
Application :
Barbecue wire mesh/Industrial use
Weave Style :
Dutch weave
Wire Diameter :
0.3-10.0mm
Technique :
Woven
Aperture size :
0.5-50mm
name :
stainless woven wire mesh
Description

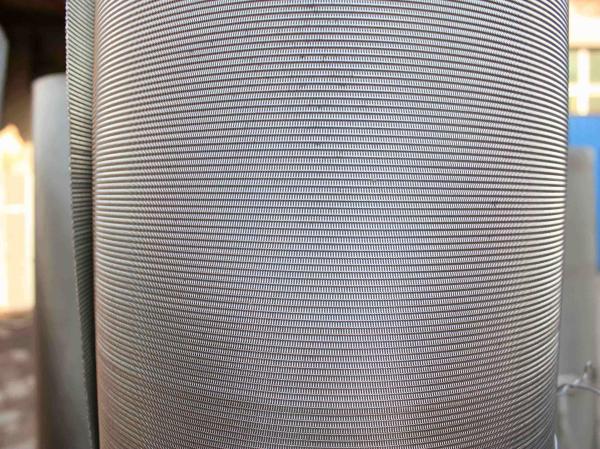

AISI316 Reverse Dutch Weave Stainless Steel Wire Mesh for Extruder Screen

Stainless steel dutch wire mesh is made of high quality stainless steel wire .The performance tested of Stainless steel is wear-resisting , heat-resisting , acid - resisting and corrosion resisting. Just because of these characteristics, the wire mesh made of stainless steel is extensively used in mining, chemical industry, food industry and pharmaceutical industry.

Plain dutch weave
Gauge No. Mesh Wire Dia.(MM) Reference Aperture
(um)
40 10×64 0.55×0.42 260
50 12×75 0.45×0.35 220
80 24×110 0.35×0.25 160
100 25×140 0.28×0.20 100
120 30×150 0.25×0.18 80
140 35×180 0.20×0.16 70
160 40×200 0.18×0.13 60
180 45×220 0.16×0.12 56
200 50×250 0.15×0.11 50
240 60×300 0.14×0.09 45
260 65×320 0.13×0.08 36
280 70×400 0.125×0.07 34
300 80×700 0.11×0.039 32
Twill dutch weave
Gauge No. Mesh Wire Dia.(MM) Reference Aperture
(um)
80II 20×250 0.28×0.2 38
120II 30×300 0.25×0.18 36
200II 50×500 0.14×0.11 34
320I 80×700 0.10×0.17 32
320II 80×780 0.10×0.07 30
360 90×780 0.10×0.07 25
400I 100×780 0.10×0.07 22
400II 100×900 0.10×0.063 20
500 120×1100 0.07×0.05 17
630 150×1400 0.063×0.04 16
650 165×1400 0.07×0.04 14
685 180×1800 0.063×0.032 13
795I 200×1400 0.07×0.04 12
795II 200×1800 0.05×0.032 10
850 210×1900 0.045×0.03 10
1000 250×2000 0.045×0.028 8
1125 280×2200 0.036×0.026 7
1200 300×2200 0.036×0.026 6
1280 325×2300 0.035×0.025 5
1600 400×2800 0.03×0.018 3


Features
Guard against theft
Guard against bulletproof
Guard against mosquitoe
High intensity
High hardness
Corrosion resistance
Packing & Shipping
1) Packing: one sheet with one foam paper /water proof paper, 50 pcs per carton
2) Delivery time: According to the final order. Usually within 15-20 days.
3) Payment: T/T, L/C at sight etc.

Packing of stainless steel woven wire mesh

AISI316 Reverse Dutch Weave Stainless Steel Woven Wire Mesh For Extruder Screen

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen

AISI316 Reverse Dutch Weave Stainless Steel Woven Wire Mesh For Extruder Screen

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
