25 50 100 200 250 Micron 316 Stainless Steel Wire Mesh , Dutch Weave Screen Mesh
25 50 100 200 250 Micron 316 Stainless Steel Wire Mesh , Dutch Weave Screen Mesh
Specifications
Place of Origin :
Hengshui,China
MOQ :
1 roll
Price :
Negotiable according to quantity of order
Supply Ability :
3000 rolls per month
Packaging Details :
1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements.
Material :
Stainless steel 304 316
Woven type :
Plain,dutch,twill,reverse dutch
Width :
0.5-2m,
Wire diameter :
0.5-8mm
Feature :
Corrosion Resistance
Color :
Silver
Description

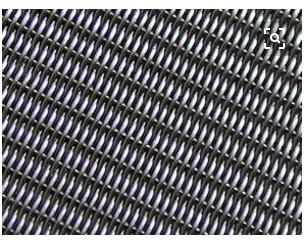

Dutch weave 25 50 100 200 250 micron 316 stainless steel wire mesh

aterial
SS302 304 304L 316 316L 321 430 410 2205 2507 904L 314
Weave type
Plain Weave Mesh: 1 mesh to 400 mesh
Twill Weave Mesh: 400 mesh to 635 mesh
Plain Dutch Weave Mesh: 10X64mesh to 80X700mesh
Twill Dutch Weave Mesh: 20x250mesh to 400X2800mesh
Reverse Dutch Weave Mesh: 48x10mesh to 720x150mesh
Wire diameter
0.025mm-1.8mm
Roll width
0.914m,1.2m,1.5m,1.8m,2.0m etc. any width available at request
Roll length
30m or 50m,any length available at request
Sample
Free sample sent on request
Main Features
Corrosion resistance.
Anti-acid and alkali
Anti-high temperture.
Good filter performance.
Long using life


Product infomation:
1) product range : usually,manufactured in 30m ( up to 200) long and in width of 36 48 1m 1.2m 1.5m 2.0m etc. or cut to length panels as per client’s requirement.
2) Packing: water-proof paper ,woven bag and also can be made as per client requirement
3) weave:This type of mesh is available in Plain Weave, Twill Weave ; Plain Dutch Weave, Dutch Twill Weave.
4) mesh counts: 1 mesh to 635 mesh.
5) sample: available.


Plain Dutch weave

Mesh
Wire Diameter mm
Filtration Fineness um
Weight / m2 kg
8x62
0.63x0.45
300
5.42
10x79
0.50x0.35
250
3.16
12x64
0.50x0.40
280
3.2
14x88
0.40x0.30
220
2.5
15x100
0.40x0.27
210
2.35
20x120
0.30x0.23
160
1.9
24x110
0.35x0.25
150
2.35
24x140
0.27x0.19
110
1.7
30x150
0.25x0.17
80
1.55
30x180
0.25x0.15
70
1.4
40x200
0.19x0.13
60
1.2
50x250
0.15x0.11
50
0.95
60x300
0.13x0.09
45
0.75
70x350
0.12x0.08
35
0.7
80x400
0.12x0.07
34
0.7
70x500
0.12x0.06
32
0.65
100x600
0.10x0.05
30
0.6

Dutch twilled weave

Mesh
Wire Diameter mm
Filtration Fineness um
Weight
(kg/sq.m)
20x200
0.335x0.28
118
4.58
20x260
0.25x0.20
119
3.14
24x300
0.28x0.18
110
3.01
30x250
0.28x0.20
77
3.41
30x340
0.28x0.16
89
2.84
40x560
0.18x0.10
70
1.73
80x700
0.12x0.08
30
1.26
80x780
0.12x0.07
28
1.22
90x780
0.10x0.07
26
1.24
100x780
0.10x0.07
25
1.13
120x1100
0.07x0.05
18
0.86
165x800
0.07x0.05
25
0.58
165x1400
0.07x0.04
14
0.75
200x600
0.06x0.04
28
0.5
200x1400
0.06x0.04
12
0.72
200x1600
0.06x0.035
11
0.7
200x1800
0.06x0.03
10
0.7
250x2000
0.045x0.028
8
0.65
325x2300
0.035x0.026
5
0.57
325x2500
0.035x0.023
4
0.52
400x2800
0.03x0.018
3
0.46
400x3000
0.03x0.16
2.
0.43
400x3500
0.03x0.15
1
0.38



Delivery Time
We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Mutual Benefit
If the products of our distributors are unmarketable due to the influence by market factors,we will seek customers in the same market or near market who are in need of the products to help the distributors to handle unsalable products.

25 50 100 200 250 Micron 316 Stainless Steel Wire Mesh , Dutch Weave Screen Mesh

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen

25 50 100 200 250 Micron 316 Stainless Steel Wire Mesh , Dutch Weave Screen Mesh



25 50 100 200 250 Micron 316 Stainless Steel Wire Mesh , Dutch Weave Screen Mesh

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
