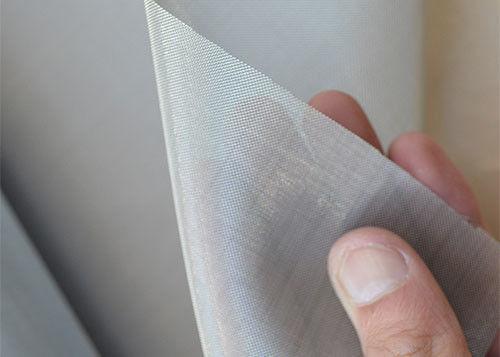

High Strength Stainless Steel Woven Wire Mesh Filter Ebay Long Service Life
High Strength Stainless Steel Woven Wire Mesh Filter Ebay Long Service Life
High Strength Stainless Steel Woven Wire Mesh Filter Ebay Long Service Life
High Strength Stainless Steel Woven Wire Mesh Filter Ebay Long Service Life
High Strength Stainless Steel Woven Wire Mesh Filter Ebay Long Service Life
High Strength Stainless Steel Woven Wire Mesh Filter Ebay Long Service Life
Specifications
Place of Origin :
Hengshui,China
MOQ :
1 roll
Price :
7-200 us dollar per square meter
Supply Ability :
3000 rolls per month
Packaging Details :
Inside waterproof paper,outside wooden carton
Material :
Hastelloy Alloy Wire
Mesh size :
2 mesh-500meshes
Wire diameter :
0.018mm-2.05mm
Technique :
Woven
Width :
1m,1.2m,1.3m or customized
Length :
30m or customized
Description

Stainless Steel Weave Wire Mesh,Stainless Steel Wire Mesh Screens,Plain Weavon Stainless Steel Wire Mesh for Filter Ebay

Stainless steel wire materials in SUS302, 304, 316, 304L, 316L.
Typical Weaving Patterns for Stainless Steel Wire Mesh: Plain weave, twill weave, Dutch weave.

Material SS 201,202,304,304L, 316,316L
Woven style plain,twill,dutch
Mesh size 1-635mesh
Standard Length 100'
Width 3' ,1m 4',5',6',8'----4m
Package In waterproof paper, PVC bag, wooden case, Custom packing available at request.
Application Widely used in petroleum industry, mine industry, chemical fiber industry,

electroplating industry, environment protection etc.
Advantage Stainless Steel Wire Mesh:Wear-resistant, high strength and long service life, unity-structure, not curly, easy to use, acid-resistant , alkali-resistant, corrosion-resistant, heat-resistant


Specification of stainless steel wire mesh

Type Mesh/Inch Wire diameter (inch) Open Area Weight (LB) /100 Square Foot
Plain,Twill Weave Wire Mesh 1 × 1-635 × 635 0.0008"-0.08" 25 to 84.6 2.53 to 41.1
Type Mesh/Inch Wire diameter (inch) Absolute Filtration Finess μm Nominal Filtration Finess μm
Plain Dutch Weave Wire Mesh 8 × 85-80 × 400 0.014'' × 0.0126''- 0.0049'' × 0.0028'' 318-340 to 43-48 250-255 to 35-40
Twill Duntch Weave Wire Mesh 20 × 250 - 500 × 3200 0.0098'' × 0.0079'' - 0.0015'' × 0.0010'' 110-120 to 8-9 98-105 to 2-3

Data sheet of the wire mesh

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
Inch MM Inch MM
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.9
1		 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8
100X100 .0045 .114 .0055 .14 30.3 14.2
100X100 .004 .102 .0060 .15 36.0 11.0
100X100 .0035 .089 .0065 .17 42.3 8.3
110X110 .0040 .1016 .0051 .1295 30.7 12.4
120X120 .0037 .0940 .0064 .1168 30.7 11.6
150X150 .0026 .0660 .0041 .1041 37.4 7.1
160X160 .0025 .0635 .0038 .0965 36.4 5.94
180X180 .0023 .0584 .0033 .0838 34.7 6.7
200X200 .0021 .0533 .0029 .0737 33.6 6.2
250X250 .0016 .0406 .0024 .0610 36.0 4.4
270X270 .0016 .0406 .0021 .0533 32.2 4.7
300X300 .0051 .0381 .0018 .0457 29.7 3.04
325X325 .0014 .0356 .0017 .0432 30.0 4.40
400X400 .0010 .0254 .0015 .370 36.0 3.3
500X500 .0010 .0254 .0010 .0254 25.0 3.8
635X635 .0008 .0203 .0008 .0203 25.0 2.63

High Strength Stainless Steel Woven Wire Mesh Filter Ebay Long Service Life

Deep processing products

High Strength Stainless Steel Woven Wire Mesh Filter Ebay Long Service Life

Concentrating on putting all the efforts into maintaining product standards. We have a full range of production equipment, advanced technology, scientific management and inspection systems so that we can meet the exact requirements of our customers for various of wire mesh products.
