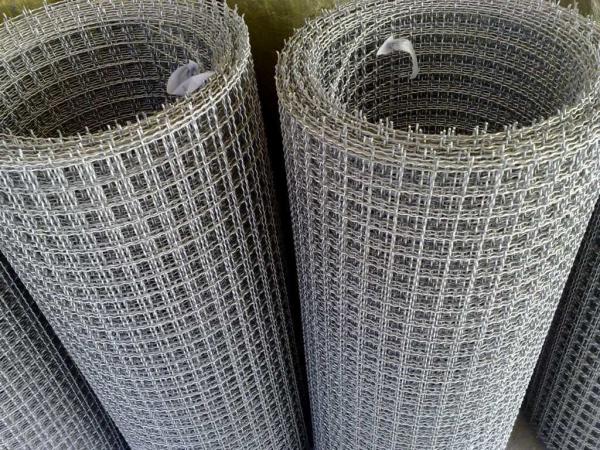

Metal/Ss/65 Mn Woven Crimped Wire Vibrating Screen Mesh for Vibrating Stone /Gold Ore/ Coal Mine /Copper Mine

Material: NO MAGNET NO NICKEL, AISI202, AISI302, AISI304, AISI 304 L, AISI 316, AISI 316 L, AISI317, 321 and 430 etc.

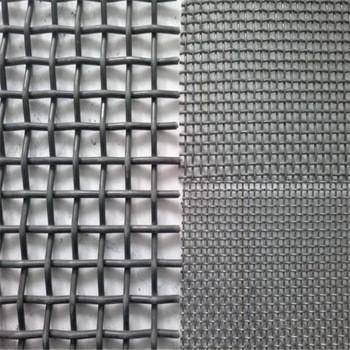

Weave Type:

Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.

Plain Dutch Weave.

Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.

Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.

Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
Reverse Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.

3. metal crimped wire mesh Specification

Normal Mesh sieze:

plain weave: 0.5X0.5mesh to 635X635 mesh;

twill weave:20x20mesh to 400x400mesh;

plain dutch weave:10X64mesh to 80X700mesh;

twill dutch weave:20x250mesh to 400X2800mesh;

reversed dutch weave: 48x10mesh to 720x150mesh.

Material: black wire, spring steel wire, manganese steel wire and stainless steel wire.
Surface treatment: galvanized or painted.
Wire diameter: 0.71mm - 12.5mm.
Mesh size: 1mm - 100mm.
Hole type: square, rectangular and long slot.

Specification:
Width of the grid: up to 2.200 mm
Length of the grid: up to 5.000 mm or in roll form up to 50 m
Dimensional tolerances in length and width: -0 mm /+1 mesh width (customary)
On request fixed measures with tolerances of +/-2 mm in length and width

Weaving type:
Plain weave.
Pre-crimped.
Flat top.
Intermediate crimped.
Lock crimped.

Application:
Mainly used as screen mesh, it is widely used in many industries, such as mining screen, quarrying screen, the screen deck, screen wire for stone crusher, Classifying Trommel; Vibrating screen; Road construction equipment; The Asphaltum mix round equipment and the mine vibrating screens, chemical industry, pharmacy, machinery, protection, construction.

About our company

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.

We are specialized in manufacture and export of stainless steel wire mesh product,if you have request please contact us.We will provide professional service and guarantee on time delivery.
