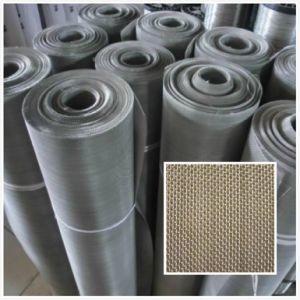

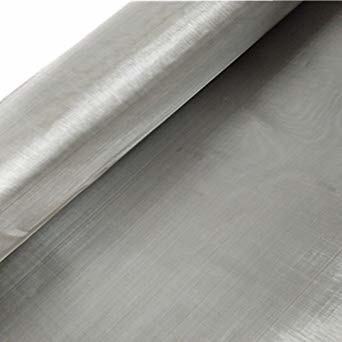

Plain Weave Stainless Steel Fine Mesh Screen , Woven Wire Mesh Sheets Long Lifespan
Plain Weave Stainless Steel Fine Mesh Screen , Woven Wire Mesh Sheets Long Lifespan
Plain Weave Stainless Steel Fine Mesh Screen , Woven Wire Mesh Sheets Long Lifespan
Plain Weave Stainless Steel Fine Mesh Screen , Woven Wire Mesh Sheets Long Lifespan
Plain Weave Stainless Steel Fine Mesh Screen , Woven Wire Mesh Sheets Long Lifespan
Plain Weave Stainless Steel Fine Mesh Screen , Woven Wire Mesh Sheets Long Lifespan
Specifications
Brand Name :
TL
Place of Origin :
Hengshui,China
MOQ :
1 roll
Price :
7-200 us dollar per square meter
Supply Ability :
3000 rolls per month
Packaging Details :
Inside waterproof paper,outside wooden carton
Material :
Stainless steel 201.202.304.316
Mesh size :
2 mesh-500meshes
Wire diameter :
0.018mm-2.05mm
Weave type :
Plain weave
Width :
1m,1.2m,1.3m or customized
Length :
30m or customized
Description

Stainless Steel Woven Wire Mesh Plain Weave SS Wire Mesh,Stainless Steel Woven Wire Mesh filter

Stainless steel :Stainless steel is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth.T304 is the most common, but other are used in specific applications to take advantage of each grade’s unique properties. The wire mesh made of stainless steel is extensively used in mining , chemical industry, food industry and pharmaceutical industry.

High Quality SUS 304/316 Metal Woven Wire Mesh Product Detail :

Material SS wire 201, 304, 304L, 316, 316L, 431, 321 347 etc.
Wire diameter 0.018-2.03mm
Woven style plain weave, twill weave,dutch weave, reversed dutch weave, crimped weave
Mesh counts

Plain weave wire mesh can be woven up to 400 mesh.

Twill weave wire mesh can be woven from 30 to 635 mesh.
Packaging Details inner kraft, outside plastic cloth, put into wooden pallet or case
Application Plain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets.

Plain Weave Stainless Steel Fine Mesh Screen , Woven Wire Mesh Sheets Long Lifespan

Data sheet of the wire mesh

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
Inch MM Inch MM
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.91 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8
100X100 .0045 .114 .0055 .14 30.3 14.2
100X100 .004 .102 .0060 .15 36.0 11.0
100X100 .0035 .089 .0065 .17 42.3 8.3
110X110 .0040 .1016 .0051 .1295 30.7 12.4
120X120 .0037 .0940 .0064 .1168 30.7 11.6
150X150 .0026 .0660 .0041 .1041 37.4 7.1
160X160 .0025 .0635 .0038 .0965 36.4 5.94
180X180 .0023 .0584 .0033 .0838 34.7 6.7
200X200 .0021 .0533 .0029 .0737 33.6 6.2
250X250 .0016 .0406 .0024 .0610 36.0 4.4
270X270 .0016 .0406 .0021 .0533 32.2 4.7
300X300 .0051 .0381 .0018 .0457 29.7 3.04
325X325 .0014 .0356 .0017 .0432 30.0 4.40
400X400 .0010 .0254 .0015 .370 36.0 3.3
500X500 .0010 .0254 .0010 .0254 25.0 3.8
635X635 .0008 .0203 .0008 .0203 25.0 2.63

Concentrating on putting all the efforts into maintaining product standards. We have a full range of production equipment, advanced technology, scientific management and inspection systems so that we can meet the exact requirements of our customers for various of wire mesh products.
