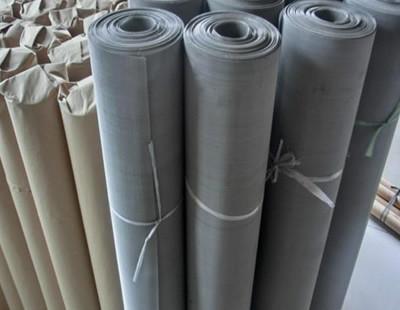

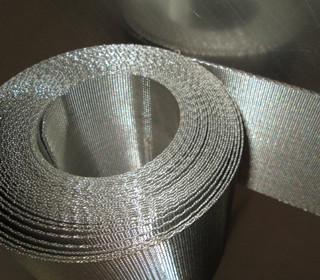

Stainless Steel Wire Mesh Plain Weave/Twill Weave /Dutch Weaving,Stainless Steel Filter Mesh Screen/Wire Mesh
Stainless Steel Wire Mesh Plain Weave/Twill Weave /Dutch Weaving,Stainless Steel Filter Mesh Screen/Wire Mesh
Stainless Steel Wire Mesh Plain Weave/Twill Weave /Dutch Weaving,Stainless Steel Filter Mesh Screen/Wire Mesh
Stainless Steel Wire Mesh Plain Weave/Twill Weave /Dutch Weaving,Stainless Steel Filter Mesh Screen/Wire Mesh
Specifications
Place of Origin :
Hengshui,China
MOQ :
1 roll
Price :
7-200 us dollar per square meter
Supply Ability :
3000 rolls per month
Packaging Details :
Inside waterproof paper,outside wooden carton
Material :
Stainless steel wire
Mesh size :
2 mesh-500meshes
Wire diameter :
0.018mm-2.05mm
Method :
Hot Dipped or Electro Galvanized Bef.or Afterweave
Width :
0.5-6.5m
Length :
30m or customized
Feature :
Wear-Resisting,Heat-Resisting,Acid-Resisting
Packing :
Wooden carton
Description

Stainless Steel Wire Mesh Plain Weave/Twill Weave /Dutch Weaving,Stainless Steel Filter Mesh Screen/Wire Mesh

Stainless steel wire materials in SUS302, 304, 316, 304L, 316L.
Typical Weaving Patterns for Stainless Steel Wire Mesh: Plain weave, twill weave, Dutch weave.

General Use of: Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc
Mesh size of stainless steel wire mesh: From 3mesh to 600mesh

Stainless Steel Wire Mesh Plain Weave/Twill Weave /Dutch Weaving,Stainless Steel Filter Mesh Screen/Wire Mesh

Stainless Steel Woven Wire Mesh Material
Stainless steel wire mesh is made stainless steel wire and then woven together to form a square opening or oblong opening. Stainless steel woven wire mesh has characteristics of resistance to the rust, corrosion, acid, alkali, heat and chemical, high strength and durability. Stainless steel woven wire cloth has widely applications in the industries, architecture, residences and other places.

SS 430: Non Nickel and have magnetic;
SUS 202: non-magnetic, low anti-corrosion resistence;
SUS 304/304L: low-magnetic, good anti-corrosion resistence;
SUS 316/316L: low-magnetic, better anti-corrosion resistence;
SUS 310S: anti-oxidization,anti-corrosive and high temperature resistence

Stainless Steel Woven Wire Mesh Count

SUS 202/310s sutiable for mesh count from 1 to 100( plain weave);
SUS 304/304L suitable for mesh count from 1 to 400(plain/dutch weave);
SUS 316/316L 430 suitable for mesh count from 1 to 600(plain/twill/dutch weave .

Stainless Steel Woven Wire Mesh Specification
Plain Weave Technical Data
Meshes Per Linear Inch Wire Diameter Aperture Size Open Area, %
Inches mm Inches mm
1 0.135 3.5 0.865 21.97 74.8
1 0.120 3.0 0.880 22.35 77.4
1 0.105 2.5 0.895 22.73 80.1
1 0.080 2.0 0.920 23.36 84.6
3/4" 0.120 3.0 0.630 16.00 70.5
3/4" 0.080 2.0 0.670 17.01 79.8
2 × 2 0.120 3.0 0.380 9.65 57.8
2 × 2 0.105 2.5 0.395 10.03 62.4
2 × 2 0.080 2.0 0.420 10.66 70.6
2 × 2 0.063 1.6 0.437 11.10 76.4
2 × 2 0.047 1.2 0.453 11.50 82.1
3 × 3 0.080 2.0 0.253 6.42 57.6
3 × 3 0.063 1.6 0.270 6.85 65.6
3 × 3 0.047 1.2 0.286 7.26 73.6
4 × 4 0.080 2.0 0.170 4.31 46.2
4 × 4 0.063 1.6 0.187 4.75 56.0
4 × 4 0.047 1.2 0.203 5.15 65.9
5 × 5 0.047 1.2 0.153 3.88 58.5
5 × 5 0.041 1.0 0.159 4.01 63.2
6 × 6 0.063 1.6 0.104 2.64 38.9
6 × 6 0.047 1.2 0.120 3.04 51.8
6 × 6 0.035 0.9 0.132 3.35 62.7
8 × 8 0.063 1.6 0.062 1.57 24.6
8 × 8 0.047 1.2 0.078 1.98 38.9
8 × 8 0.035 0.9 0.090 2.28 51.8
8 × 8 0.032 0.8 0.093 2.36 55.4
8 × 8 0.028 0.7 0.097 2.46 60.2
10 × 10 0.047 1.2 0.053 1.34 28.1
10 × 10 0.035 0.9 0.065 1.65 42.3
10 × 10 0.032 0.8 0.068 1.27 46.2
10 × 10 0.025 0.63 0.075 1.90 56.3
12 × 12 0.041 1.0 0.042 1.06 25.4
12 × 12 0.035 0.9 0.048 1.22 33.2
12 × 12 0.032 0.8 0.051 1.29 37.5
12 × 12 0.028 0.7 0.055 1.39 43.6
12 × 12 0.023 0.58 0.060 1.52 51.8
14 × 14 0.032 0.8 0.039 1.52 29.8
14 × 14 0.025 0.63 0.046 0.99 41.5
14 × 14 0.023 0.58 0.048 1.22 45.2
14 × 14 0.020 0.5 0.051 1.30 51.0
16 × 16 0.028 0.7 0.035 0.89 30.5
16 × 16 0.023 0.58 0.040 1.01 39.9
16 × 16 0.018 0.45 0.045 1.14 50.7
18 × 18 0.020 0.5 0.036 0.91 41.1
18 × 18 0.018 0.45 0.038 0.96 48.3
20 × 20 0.023 0.58 0.027 0.68 29.2
20 × 20 0.020 0.5 0.030 0.76 36.0
20 × 20 0.018 0.45 0.032 0.81 41.0
20 × 20 0.016 0.40 0.034 0.86 46.2
24 × 24 0.014 0.35 0.028 0.71 44.2
28 × 28 0.010 0.25 0.026 0.66 51.8
30 × 30 0.013 0.33 0.020 0.50 37.1
30 × 30 0.012 0.30 0.021 0.53 40.8
35 × 35 0.012 0.30 0.017' 0.43 33.8
35 × 35 0.010 0.25 0.019 0.48 42.4
40 × 40 0.014 0.35 0.011 0.28 19.3
40 × 40 0.012 0.30 0.013 0.33 27.4
40 × 40 0.010 0.25 0.015 0.38 36.0
40 × 40 0.0095 0.24 0.016 0.40 38.4
50 × 50 0.009 0.23 0.011 0.28 30.3
60 × 60 0.0075 0.19 0.009 0.22 30.5
70 × 70 0.0065 0.17 0.008 0.20 29.8
80 × 80 0.0070 0.18 0.006 0.15 19.4
80 × 80 0.0055 0.14 0.007 0.17 31.4
90 × 90 0.0055 0.14 0.006 0.15 25.4
100 × 100 0.0045 0.11 0.006 0.15 30.3
120 × 120 0.0040 0.10 0.0043 0.11 26.6
120 × 120 0.0037 0.09 0.005 0.12 30.7
150 × 150 0.0026 0.066 0.0041 0.10 37.4
165 × 165 0.0019 0.048 0.0041 0.10 44.0
180 × 180 0.0023 0.058 0.0032 0.08 33.5
180 × 180 0.0020 0.050 0.0035 0.09 41.1
200 × 200 0.0020 0.050 0.003 0.076 36.0
200 × 200 0.0016 0.040 0.0035 0.089 46.0
220 × 220 0.0019 0.048 0.0026 0.066 33.0
230 × 230 0.0014 0.035 0.0028 0.071 46.0
250 × 250 0.0016 0.040 0.0024 0.061 36.0
270 × 270 0.0014 0.040 0.0022 0.055 38.0
300 × 300 0.0012 0.030 0.0021 0.053 40.1
325 × 325 0.0014 0.040 0.0017 0.043 30.0
325 × 325 0.0011 0.028 0.0020 0.050 42.0
400 × 400 0.0010
