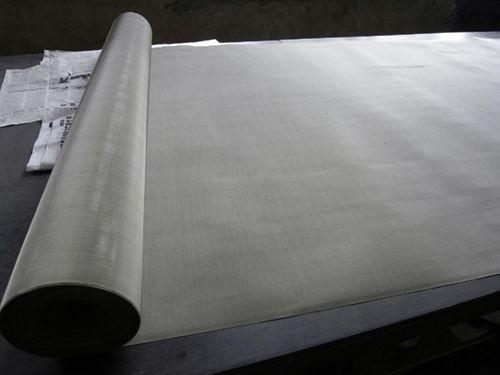

High Temperature Stainless Steel Woven Wire Mesh Dutch Weave Iron For Powder Particles Screening
High Temperature Stainless Steel Woven Wire Mesh Dutch Weave Iron For Powder Particles Screening
High Temperature Stainless Steel Woven Wire Mesh Dutch Weave Iron For Powder Particles Screening
High Temperature Stainless Steel Woven Wire Mesh Dutch Weave Iron For Powder Particles Screening
Specifications
Place of Origin :
Hengshui,China
MOQ :
1 roll
Price :
7-200 us dollar per square meter
Supply Ability :
3000 rolls per month
Packaging Details :
Inside waterproof paper,outside wooden carton
Material :
Stainless steel wire
Mesh size :
2 mesh-500meshes
Wire diameter :
0.018mm-2.05mm
Method :
Woven
Width :
0.5-6.5m
Length :
30m or customized
Feature :
Wear-Resisting,Heat-Resisting,Acid-Resisting
Usage industry :
Chemical Industry,Filtering,Sieving
Description

400 Micron High Temperature Stainless Steel Wire Mesh,Dutch Weave Iron Wire Cloth for Screening of Powder Particles

Stainless Steel Wire Net, Netting, Mesh, Woven Wire Mesh , Sieve Mesh


Plain weave mesh from 1 x 1mesh to 635mesh x 635mesh.

Plain dutch mesh: 10 x 64; 12 x 75; 24 x 110; 25 x 140; 30 x 150; 35 x 180; 40 x 200; 45 x 220; 50 x 250; 60 x 300; 65 x 320; 70 x 400; 80 x 700.

Twill weave mesh: 250; 300; 325; 350; 400; 450; 500;

Twill dutch mesh: 20 x 250; 30 x 300; 50 x 500; 80 x 700; 80 x 780; 90 x 780; 100 x 780; 100 x 900; 120 x 1100; 150 x 1400; 180 x 1800; 165 x 1400; 200 x 1400; 200 x 1800;210 x 1900; 250 x 2000; 280 x 2200; 300 x 2200; 325 x 2300;400 x 2800.

Stainless steel material: 302,304,304L,316,316L,321 and 430 etc.

Standard rolls size:1m x 30m; 1.22m x 30.5m. Other sizes can be customized

Processed stainless steel wire mesh products, such as mesh discs,mesh filters,mesh bag,etc can be customized according to clients' drawing or details.

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /
100 Square Foot
Inch MM Inch MM %
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.91 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8
100X100 .0045 .114 .0055 .14 30.3 14.2
100X100 .004 .102 .0060 .15 36.0 11.0
100X100 .0035 .089 .0065 .17 42.3 8.3
110X110 .0040 .1016 .0051 .1295 30.7 12.4
120X120 .0037 .0940 .0064 .1168 30.7 11.6
150X150 .0026 .0660 .0041 .1041 37.4 7.1
160X160 .0025 .0635 .0038 .0965 36.4 5.94
180X180 .0023 .0584 .0033 .0838 34.7 6.7
200X200 .0021 .0533 .0029 .0737 33.6 6.2
250X250 .0016 .0406 .0024 .0610 36.0 4.4
270X270 .0016 .0406 .0021 .0533 32.2 4.7
300X300 .0051 .0381 .0018 .0457 29.7 3.04
325X325 .0014 .0356 .0017 .0432 30.0 4.40
400X400 .0010 .0254 .0015 .370 36.0 3.3
500X500 .0010 .0254 .0010 .0254 25.0 3.8
635X635 .0008 .0203 .0008 .0203 25.0 2.63
325 x 325 0.0011 0.028 0.0020 0.050 42.0
400 x 400 0.0010 0.025 0.0015 0.038 36.0
500 x 500 0.0010 0.025 0.0011 0.028 25.0
635 x 635 0.0009 0.022 0.0006 0.015 14.5

High Temperature Stainless Steel Woven Wire Mesh Dutch Weave Iron For Powder Particles Screening

High Temperature Stainless Steel Woven Wire Mesh Dutch Weave Iron For Powder Particles Screening

Processing products

High Temperature Stainless Steel Woven Wire Mesh Dutch Weave Iron For Powder Particles Screening

Concentrating on putting all the efforts into maintaining product standards. We have a full range of production equipment, advanced technology, scientific management and inspection systems so that we can meet the exact requirements of our customers for various of wire mesh products.
