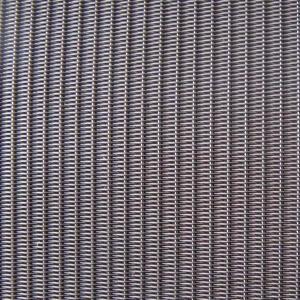

Dutch Weaving Stainless Steel Filter Wire Mesh 304 316L Sieving / Seperating
Dutch Weaving Stainless Steel Filter Wire Mesh 304 316L Sieving / Seperating
Dutch Weaving Stainless Steel Filter Wire Mesh 304 316L Sieving / Seperating
Dutch Weaving Stainless Steel Filter Wire Mesh 304 316L Sieving / Seperating
Specifications
Place of Origin :
Hengshui,China
MOQ :
1 roll
Price :
7-200 us dollar per square meter
Supply Ability :
3000 rolls per month
Packaging Details :
Inside waterproof paper,outside wooden carton
Material :
Stainless steel wire
Mesh size :
2 mesh-500meshes
Wire diameter :
0.018mm-2.05mm
Method :
Woven
Width :
0.5-6.5m
Length :
30m or customized
Feature :
Wear-Resisting,Heat-Resisting,Acid-Resisting
Usage industry :
Chemical Industry,Filtering,Sieving
Description

Dutch Weaving Stainless Steel Wire Mesh,304 316L Stainless Steel Sieving and Seperating Wire Mesh

Product Description
Plain/Twilled woven Filter Cloth

Available in Stainless steel 302 304 316 316L
Mesh Guage Wire dia (mm) Weave

8		 24 0.558

















Plain / Twill
26 0.457
27 0.400
28 0.376

10		 24 0.558
26 0.457
28 0.376

12
 24 0.558
26 0.457
27 0.400
28 0.376
30 0.315

14		 24 0.558
26 0.457
27 0.400

16		 27 0.400
28 0.376
30 0.315

18		 26 0.457
28 0.376

20		 26 0.457
28 0.376
30 0.315
32 0.274

30		 30 0.315
32 0.274
34 0.234

40		 32 0.274
33 0.254
34 0.234
36 0.193
37 0.173
50
 34 0.234
36 0.193
38 0.152
60 34 0.234
38 0.152

80		 38 0.152
40 0.122
42 0.102

100		 41 0.112
42 0.102
43 0.091
200 47 0.051

300		 48 0.041
49 0.031


Dutch Weave Filter Cloth
Plain Dutch Weave:
Plain Dutch Weave can accommodate high flow rates with a relatively low pressure drop.They are woven with each warp and weft wire passing over and under one wire.The weft wires are smaller in diameter than the warp wires and are drawn up close together,creating a dense filtration weave.

Mesh/Inch (warp×weft) Wire Dia. warp×weft (mm) Normal size (μm) Effective
area%		 Weight kg/sq.m Cloth thickness
(mm)
7×44 0.71×0.63 319 14.2 5.55 1.97
8×45 0.8×0.6 310 15.5 5.7 2.00
8×60 0.63×0.45 296 20.3 4.16 1.53
8×85 0.45×0.315 275 27.3 2.73 1.08
10×90 0.45×0.28 249 29.2 2.57 1.01
10×76 0.5×0.355 248 21.8 3.24 1.21
12×86 0.45×0.315 211 20.9 2.93 1.08
12×64 0.56×0.40 211 16.0 3.89 1.36
12×76 0.45×0.355 192 15.9 3.26 1.16
14×100 0.40×0.28 182 20.3 2.62 0.96
14×110 0.4×0.25 177 22.2 2.28 0.855
14×76 0.45×0.355 173 14.3 3.33 1.16
16×100 0.40×0.28 160 17.7 2.7 0.96
17×120 0.355×0.224 155 22.4 2.19 0.803
16×120 0.28×0.224 145 19.2 1.97 0.728
20×140 0.315×0.20 133 21.5 1.97 0.715
20×170 0.25×0.16 130 28.9 1.56 0.57
20×110 0.355×0.25 126 15.3 2.47 0.855
22×120 0.315×0.224 115 15.5 2.20 0.763
25×140 0.28×0.20 100 15.2 1.96 0.68
24×110 0.355×0.25 97 11.3 2.60 0.855
28×150 0.28×0.18 92 15.9 1.87 0.64
30×150 0.25×0.18 82 13.5 1.79 0.61
30×140 0.315×0.20 77 11.4 2.21 0.715
35×190 0.224×0.14 74 16.8 1.47 0.504
35×170 0.224×0.16 69 12.8 1.62 0.544
40×200 0.18×0.135 63 15.4 1.24 0.43
50×250 0.14×0.11 50 15.2 1 0.36
60×500 0.14×0.055 51 34.1 0.70 0.252
50×270 0.14×0.10 50 15.2 0.98 0.34
65×390 0.125×0.071 42 19.1 0.78 0.267
60×300 0.14×0.09 41 14.1 0.96 0.32
80×700 0.125×0.04 40 38.1 0.60 0.205
60×270 0.14×0.10 39 11.2 1.03 0.34
77×560 0.14×0.05 38 27.5 0.74 0.24
70×390 0.112×0.071 37 16.3 0.74 0.254
65×750 0.10×0.036 36 37.1 0.43 0.172
70×340 0.125×0.08 35 13.2 0.86 0.285
80×430 0.125×0.063 32 16.6 0.77 0.251
118×750 0.063×0.036 23 21.5 0.38 0.135

Twill dutch weave
The term "Twill" indicates the warp and weft wire pass alternately over two and under two wires.The term"Dutch" refer to the use of a heavier warp wire in conjunction with a lighter weft wire.
In a Twill Dutch Weave the weft wires are drawn up so tightly that there is always a weft wire above and below the warp wires,creating a weave with
