SS Johnson Wedge Wire Screens Cylinder Liquid Filter With Male - Female Thread
SS Johnson Wedge Wire Screens Cylinder Liquid Filter With Male - Female Thread
Specifications
Place of Origin :
Hengshui,China
MOQ :
50 Square meters
Supply Ability :
3000 square meters
Packaging Details :
Plastic film by crate
Material :
Metal, Stainless steel wedge wire,SS304,316,316L
Usage :
Liquid Filter
Thickness :
3mm-12mm
Slot Size :
1mm
Profile wire size :
1x2mm,2x3mm
Hs code :
8421299090
Description

Ss Johnson Wedge Wire Screens Cylinder with Male-Female Thread,

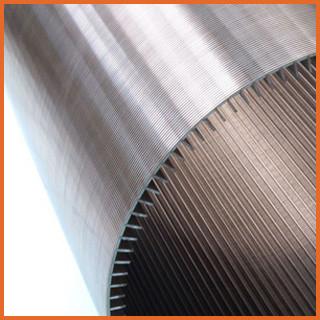

wire wrappd wedge wire screen pipe is manufactured by a v or wedge shaped wire around an internal array of

longitudinal support rods. Each intersecting point of these wire is fusion welded.

The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities,

while at the same time keeps the majority of sand and gravel out of the well.

Technical Specification of SS Johnson wedge wire screens cylinder

Specification (wedge wire): Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod): Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size 0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also achieved upon request.
Material: galvanized low carton (LCG), stainless steel (304,316 etc.)
Length up to 6 meters.
Diameter from 25mm to 1200mm.
End connection Plain beveled ends, flanged or threaded couplings


Packaging Information
Single with bubble bags and then in wooden case.
Each case is clearly marked with:
Batch number
Date of manufacture
Safe heating & application temperature

SS Johnson Wedge Wire Screens Cylinder Liquid Filter With Male - Female Thread

SS Johnson Wedge Wire Screens Cylinder Liquid Filter With Male - Female Thread


SS Johnson Wedge Wire Screens Cylinder Liquid Filter With Male - Female Thread

Our stainless steel woven wire mesh woven type cover plain weave,twill weave,dutch weave,plain dutch weave,twill dutch weave.
For plain weave,our mesh size range is 1-500 mesh,
twill weave 325×325mesh,
plain dutch 70×400mesh,
twill dutch 400×2800mesh,
reverse dutch weave 720×150mesh.
Our company website is www.stainlesssteelwiremeshfactory.com,our product range also cover following items,
  • stainless steel woven wire mesh
  • welded wire mesh
  • crimped wire mesh
  • hexagonal wire mesh
  • expanded wire mesh

OEM Yes
Special Sizes or Shape Yes
Customized packing Yes
Sample Can be offered or Made
Delivery time Usually within 7-15 working days
Payment terms T/T, Western Union, PayPal., Escrow, L/C
Optional Way of Transportation

Sea Transportation, Air Transportation
International Express: DHL,TNT,FEDEX,UPS,EMS

SS Johnson Wedge Wire Screens Cylinder Liquid Filter With Male - Female Thread

About us

We have manufacture and export stainless steel wire mesh for 15 years so far,during this period of time we have gathered rich experience in terms of production technique of wire mesh and export standard,this lead us have ability to provide good quality wire mesh product while ensure shortest lead time.

SS Johnson Wedge Wire Screens Cylinder Liquid Filter With Male - Female Thread
