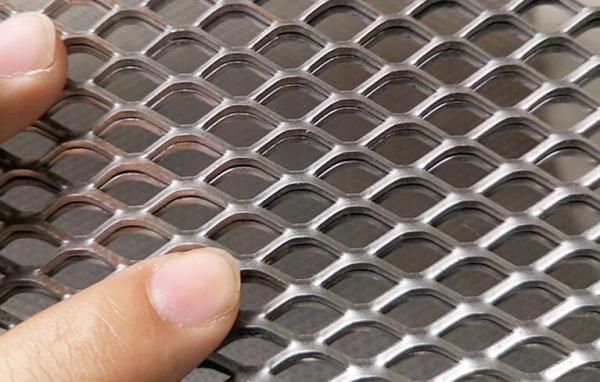

Pulled Plate Expanded Wire Mesh Customized Color 0.5-8mm Sheet Thickness Durable
Pulled Plate Expanded Wire Mesh Customized Color 0.5-8mm Sheet Thickness Durable
Pulled Plate Expanded Wire Mesh Customized Color 0.5-8mm Sheet Thickness Durable
Pulled Plate Expanded Wire Mesh Customized Color 0.5-8mm Sheet Thickness Durable
Specifications
Place of Origin :
Hengshui,China
MOQ :
20 Square meter
Price :
According to order quantity negotiated
Supply Ability :
10000 Square Meter/Square Meters per Day
Packaging Details :
In waterproof paper in rolls or in pallet. Custom packing available at request
Material :
Galvanized, Painting, Aluminum
Application :
Protecting Mesh
Color :
customized
Sheet Thickness :
0.5-8mm
Hole shape :
Diamond
Description
Expanded Metal Mesh/Pulled Plate Wire Mesh with High Quality Lower Price Is on Hot Sale
Expanded Metal Mesh products are produced from solid sheets or plates of carbon, galvanized and stainless steel, as well as aluminum and a variety of alloys of copper, nickel, silver, titanium and other metals. Because expanded metal is made from a solid sheet of metal, it can never unravel. The metal strands forming the open diamonds permit light, heat, air, liquids and sound to pass through yet present a virtually un-penetrable barrier to intruders. Expanded Metal is an extraordinary versatile material one with thousands of uses.


Expanded Metal Mesh Size:

SW 3mm-65mm, LW 6mm-180mm, Thickness 0.5mm-6mm. Weight 1.76kg-11.77kg per sqm. It is manufactured from a wide range of materials, mainly expanded steel mesh, Aluminum Expanded Metal, Flattended Expanded Metal, expanded nickel and other metal, as steel reinforcement materials in petroleum, chemical industry, building & decorations.



Expanded Metal Mesh Variety:

Small, Mini Expanded Metal and heavy expanded metal mesh. Expanded aluminum mesh, expanded platinum filtration mesh, expanded brass mesh, expanded copper mesh, expanded Stainless Steel Wire Mesh, expanded nickel mesh. Opening in the shape of diamond, hexagonal or special shape.


Expanded Metal Mesh Use:

Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.


Specification:


Thickness		 Open size Standard size of finished sheets Weight Reference
Short way pitch Long Way pitch Bond Sheet Width Sheet Length
D TL TB b B L kg/m2
0.5 3 6 __ 100
200		 2000 1.76
3.2 8
5 10
6 12.5 1800 3000 1.08
7 14
8 16 2000 3340
9 20
12 30 1.35 1800
2000		 3600
4000		 0.88
10 25 1.12
0.8 10 25 1.12
12 30 1.35 1.41
15 40 1.68
1.0 10 25 1.12
12 30 1.35 1.76
15 40 1.68
1.2 10 25 1.13
12 30 1.35 2.12
15 40 1.68
18 50 2.03
1.5 15 40 1.69 __ __ 2.64
18 50 2.03
22 60 2.47
29 80 3.25 3.53
2.0 18 50 2.03 1800
2000
2500		 3600
4000
5000
22 60 2.47
29 80 3.26 4.42
36 100 4.05
44 120 4.95 5.29
3.0 36 100 4.05
44 120 4.95
55 150 4.99 2000 5000 4.27
2500 6400
65 180 4.60 2000 6400 3.33
2500 8000
4 22 60 4.5 1500
|
2000		 2000-3000 12.84
30 80 5 2000-4000 10.46
38 100 6 2000-4500 9.91
5 24 60 6 2000-3000 19.62
35 80 6 2000-4000 14.71
38 100 7 2000-4500 14.67
56 150 6 2000-6000 8.41
76 200 6 2000-6000 6.19
6 32 80 7 __ 2000-4000 20.60
38 100 7 2000-4500 17.35
56 150 7 2000-6000 11.77

Pulled Plate Expanded Wire Mesh Customized Color 0.5-8mm Sheet Thickness Durable

LWD: diamond shaped hole, long way of the diagonal length

SWD: diamond shaped hole, short way of the diagonal length

Strand width:Steel plate mesh diamond hole edge Terrier is making a wide wire stem length of the metal plate.

plate thickness: 0.4-8mm


Pulled Plate Expanded Wire Mesh Customized Color 0.5-8mm Sheet Thickness Durable

Customize Design Anti-Corrosive Expanded Metal Mesh

Features:

Weight is light enough for outer wall hanging

Anti-corrosive

Rainstorm or isolation won`t hurt

Visibility and colorful

Used as decorative mesh for building outer wall ,radiator cover mesh

Easily fabricated, finished, installed and formed

Application

expanded metal used with concrete in buildings and construction, maintenance of equipment,

making of arts and crafts, covering screen for first class sound case. Also fencing for super highway,

studio,highway.

Expanded wire mesh application
Pulled Plate Expanded Wire Mesh Customized Color 0.5-8mm Sheet Thickness Durable
Our other wire mesh series

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.It have been 15 years that we manufacture and exported wire mesh product,our main product is stainless steel woven wire mesh,we keep the good manufacture technique of wire mesh product,to client orders,we will finish it within our shortest production time while keep mesh quality.

Pulled Plate Expanded Wire Mesh Customized Color 0.5-8mm Sheet Thickness Durable
Product series
Stainless steel woven wire mesh
welded wire mesh
knitted wire mesh
expanded wire mesh
hexagonal wire mesh
