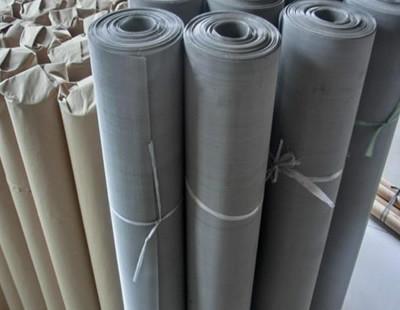

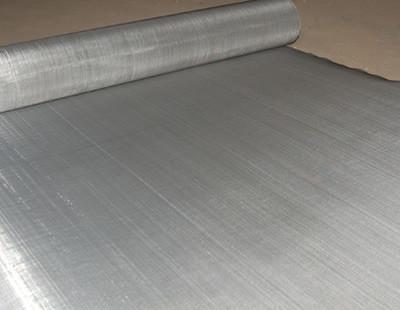

Customized Stainless Steel Wire Mesh Cloth , Stainless Steel Fine Mesh Screen
Customized Stainless Steel Wire Mesh Cloth , Stainless Steel Fine Mesh Screen
Customized Stainless Steel Wire Mesh Cloth , Stainless Steel Fine Mesh Screen
Customized Stainless Steel Wire Mesh Cloth , Stainless Steel Fine Mesh Screen
Specifications
Place of Origin :
Hengshui,China
MOQ :
1 roll
Price :
7-200 us dollar per square meter
Supply Ability :
3000 rolls per month
Packaging Details :
Inside waterproof paper,outside wooden carton
Material :
Stainless steel wire
Mesh size :
2 mesh-500meshes
Wire diameter :
0.018mm-2.05mm
Feature :
Anti-Corrosion
Width :
1m,1.2m,1.3m or customized
Length :
30m or customized
Description

201 202 302 304 304L 316 316L Stainless Steel Wire Mesh Cloth, Stainless Steel Fine Mesh Screen

www.stainlesssteelwiremeshfactory.com.

. Brief View
1)product range : usually,manufactured in 30m ( up to 200) long and in width of 36 48 1m 1.2m 1.5m 2.0m etc. or cut to length panels as per clients requirement.
2) Packing: water-proof paper ,woven bag and also can be made as per client requirement
3) weave:This type of mesh is available in Plain Weave, Twill Weave ; Plain Dutch Weave, Dutch Twill Weave.
4) mesh counts: 1 mesh to 635 mesh.
5) sample: available.

Weaving type: Plain weave, twill weave, Dutch weave (plain), Dutch weave (twill).

Customized Stainless Steel Wire Mesh Cloth , Stainless Steel Fine Mesh Screen
Application: used in mine,oil,chemical industry , food industry, pharmaceutical industry and machine producing.

Specifications

Available mesh specifications

Most of the below SS wire mesh are in stock.

If you did not find the mesh you want, please kindly contact us.


Plain Weave Stainless Steel Woven Wire Mesh

Normal Specification Maishi Plain Weave Stainless Steel Woven Wire Mesh
Mesh/inch Wire diameter
(mm)		 Aperture
(mm)		 -- Mesh/inch Wire diameter
(mm)		 Aperture
(mm)
2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 500mesh 0.025 0.0385
Technical Note:
1. Standard roll length: 15.24m, 30m, 30.5m, 61m
2. Standard roll width: 0.61m(2'), 0.9144m(3'), 1.22m(4'), 1.30m(4.265'), 1.524m(5), 1.60m(5.25')
3. Special sizes available at request
4. Packing: In waterproof paper, PVC bag, wooden case. Custom packing available at request.


Twill weave
Mesh/inch Diameter(mm) Aperture(mm) - Mesh/inch Diameter(mm) Aperture(mm)
100mesh 0.14 0.114 325mesh 0.035 0.043
120mesh 0.1 0.111 350mesh 0.032 0.0405
150mesh 0.09 0.079 400mesh 0.03 0.0335
180mesh 0.07 0.071 450mesh 0.026 0.0304
200mesh 0.06 0.067 500 mesh 0.025 0.0258
250mesh 0.045 0.0566 600 mesh 0.018 0.0243
300mesh 0.04 0.0446 635mesh 0.018 0.022


Plain Dutch Weave
Mesh/inch
Wrap*weft		 Wire diameter
Wrap*weft(mm)		 Aperture
(um)		 - Mesh/inch
Wrap*weft		 Wire diameter
Wrap*weft(mm)		 Aperture
(um)
8 X 62 0.63mm X 0.45mm 300 45 X 250 0.16mm X 0.112mm 56
10 X 79 0.50mm X 0.355mm 250 50 X 250 0.14mm X 0.11mm 53
12 X 64 0.58mm X 0.40mm 280 55.5 X 280 0.14mm X 0.10mm 50
14 X 88 0.40mm X 0.30mm 180 65 X 330 0.11mm X 0.08mm 36
19 X 140 0.315mm X 0.20mm 140 70 X 350 0.11mm X 0.08mm 35
20 X 300 0.35mm X 0.20mm - 70 X 385 0.11mm X 0.07mm 32
24 X 110 0.355mm X 0.25mm 120 78 X 700 0.11mm X 0.08mm 30
25 X 140 0.28mm X 0.20mm 100 80 X 400 0.10mm X 0.065mm 40
30 X 150 0.25mm X 0.18mm 80 80 X 600 0.10mm X 0.06mm -
35 X 175 0.224mm X 0.16mm 71 80 X 800 0.15mm X 0.04mm -
40 X 200 0.20mm X 0.14mm 60 81 X 780 0.10mm X 0.07mm 30
90 X 550 0.12mm X 0.05 -


Twill Dutch weave
Mesh/inch
Wrap*weft		 Wire diameter
Wrap*weft(mm)		 Aperture
(um)		 - Mesh/inch
Wrap*weft		 Wire diameter
Wrap*weft(mm)		 Aperture
(um)
91 X 787 0.10mm X 0.07 25 200 X 600 0.071mm X 0.06 -
101 X 900 0.10mm X 0.063 20 200 X 800 0.071mm X 0.06 -
120 X 400 0.10mm X 0.075 - 200 X 1400 0.071mm X 0.04 12
127 X 1100 0.07mm X 0.05 17 202 X 1760 0.05mm X 0.032 10
160 X 1500 0.063mm X 0.04 15 216 X 1860 0.045mm X 0.030 9
165 X 400 0.071mm X 0.06 - 254 X 2000 0.04mm X 0.028 8
165 X 600 0.071mm X 0.05 - 285 X 2235 0.036mm X 0.025 7
165 X 800 0.071mm X 0.05 25 312 X 2100 0.035mm X 0.025 -
165 X 1100 0.071mm X 0.045 - 318 X 2235 0.036mm X 0.025 -
165 X 1400 0.071mm X 0.04 16 325 X 2300 0.035mm X 0.025 5
174 X 1700 0.063mm X 0.032 13 400 X 3100 0.035mm X 0.019 3

Feature
1. Uniform mesh openings are suitable for filtration.
2. Flat and smooth surface with no sharp edges, burrs or acute angles.
3. High pressure and temperature resistance in reference to materiel selected.
4. Excellent flexibility are capable to forming the shape that you want.
5. Wide range of application: filtration, protection, decoration, art appreciation, etc.
6. Long service life. The raw material that we make the woven wire mesh meets the international standards. And if you need, we can provide the quality certification.
7. Easy maintenance. Woven wire mesh made of metal will need minimum maintenance compared with woven wire mesh made of cloth.

Application
1. Woven wire mesh is commonly used for filtration, protection decoration and art appreciation. And it can be used in construction industry, petroleum industry, coal industry, agricultural and food industry, etc.
2. Woven wire mesh can be made into filter disc or filter cartridge for gas, liquid or slurry filtration.
3. Woven wire mesh can be made into window screen or door screen for mosquito prevention and decoration.
4. Woven wire mesh can be made into multiple types of wire mesh crafts for decoration and appreciation.
5. Woven wire mesh can be made into decorative wire mesh for space dividing or building protection.
Package
6. Woven wire mesh is rolled on the paper core, then wrapped with craft paper and a layer
