Chrome Nickel Punch Bar Wire Expanded Metal Screen Mesh Stainless Steel Air Filter
Chrome Nickel Punch Bar Wire Expanded Metal Screen Mesh Stainless Steel Air Filter
Chrome Nickel Punch Bar Wire Expanded Metal Screen Mesh Stainless Steel Air Filter
Chrome Nickel Punch Bar Wire Expanded Metal Screen Mesh Stainless Steel Air Filter
Specifications
Place of Origin :
Hengshui,China
MOQ :
20 Square meter
Price :
According to order quantity negotiated
Supply Ability :
10000 Square Meter/Square Meters per Day
Packaging Details :
In waterproof paper in rolls or in pallet. Custom packing available at request
Material :
Galvanized, Painting, Aluminum
Type :
Expanded Mesh
Application :
Protecting Mesh
Color :
customized
Thickness :
0.5mm-15mm
Hole shape :
Diamond
Description
Chrome Nickel Punch Bar Wire Expanded Metal Mesh,Stainless Steel Air Filter Expanded Metal Wire Mesh

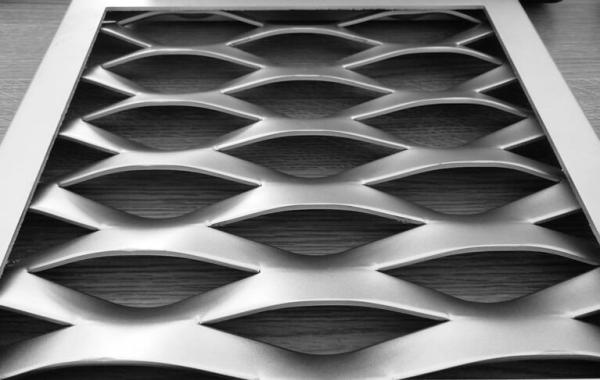

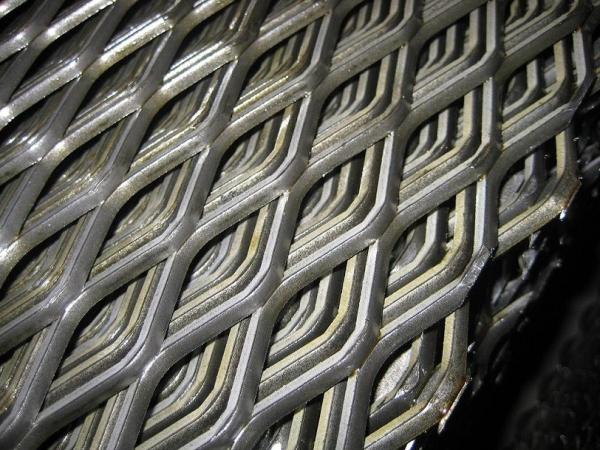

Expanded metal mesh is a form of metal stock made by stretching a metal plate in a press, so that the metal expands, leaving diamond-shaped hole surrounded by interlinked bars of the metal.

Material :Low Carbon Steel Plate, Stainless Steel Plate, Aluminium Plate, etc.

Thickness: 0.5mm-8mm

Roll width: 1.22m, 1.25m or according to your request


Roll lenght:1m-30 m or according to your request

Opening width:2.5mm-50mm


Opening length:4.5mm-100mm

Shape: daimond hole

Material plain steel sheet, galvanized steel sheet, stainless steel sheet, copper sheet, brass sheet, aluminum sheet
Thichness 0.2-3mm
Length 1m-20m
Hole Dia 0.8mm-10mm
Pitch 2-16mm
Perforated area percent from 7% to 83%
Hole forms Diamond,round, square, triangle, hexagon, cross ect
SurfaceTreatment Electric galvanized, Hot dipped galvanized, PVC coated, oxidation treatment etc

Chrome Nickel Punch Bar Wire Expanded Metal Screen Mesh Stainless Steel Air Filter

EXPENDED FLATTENED MESH
LWD(mm) SWD(mm) Strand Width Strand Gauge %Free Area Approx.Kg/m2
6.05 3.38 0.5 0.8 50 2.1
10.24 5.84 0.5 0.8 75 1.2
10.24 5.84 0.9 1.2 65 3.2
3.80 2.10 0.8 0.6 46 2.1
14.20 4.80 1.8 0.9 52 3.3
24.40 7.10 2.4 1.1 57 3.4
23.20 5.80 3.2 1.5 43 6.3
32.70 10.90 3.2 1.5 59 4
33.50 12.40 2.3 1.1 71 2.5
42.90 14.20 4.6 2.7 58 8.6
39.10 18.30 4.7 2.7 60 7.6
43.20 17.08 3.2 1.5 69 3.2
69.80 37.10 5.5 2.1 75 3.9

Chrome Nickel Punch Bar Wire Expanded Metal Screen Mesh Stainless Steel Air Filter

Chrome Nickel Punch Bar Wire Expanded Metal Screen Mesh Stainless Steel Air Filter
Chrome Nickel Punch Bar Wire Expanded Metal Screen Mesh Stainless Steel Air Filter
Expanded wire mesh application
Chrome Nickel Punch Bar Wire Expanded Metal Screen Mesh Stainless Steel Air Filter
Our other wire mesh series

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.It have been 15 years that we manufacture and exported wire mesh product,our main product is stainless steel woven wire mesh,we keep the good manufacture technique of wire mesh product,to client orders,we will finish it within our shortest production time while keep mesh quality.

Chrome Nickel Punch Bar Wire Expanded Metal Screen Mesh Stainless Steel Air Filter
Product series
Stainless steel woven wire mesh
welded wire mesh
knitted wire mesh
expanded wire mesh
hexagonal wire mesh
Chrome Nickel Punch Bar Wire Expanded Metal Screen Mesh Stainless Steel Air Filter
