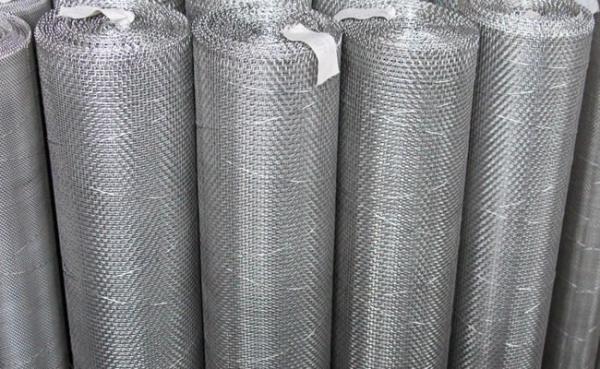

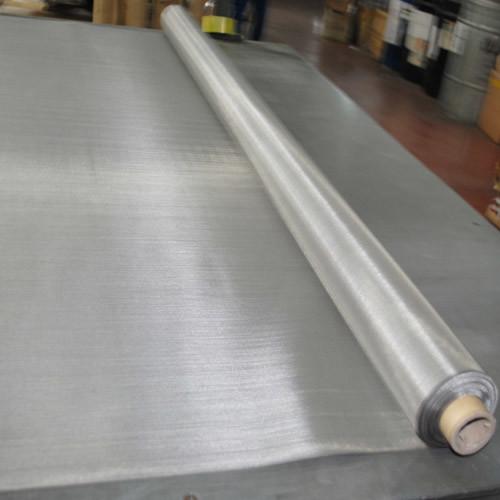

80 100 200 500 Mesh Stainless Steel Woven Wire Mesh Filter Cloth High Flow Through
80 100 200 500 Mesh Stainless Steel Woven Wire Mesh Filter Cloth High Flow Through
80 100 200 500 Mesh Stainless Steel Woven Wire Mesh Filter Cloth High Flow Through
80 100 200 500 Mesh Stainless Steel Woven Wire Mesh Filter Cloth High Flow Through
80 100 200 500 Mesh Stainless Steel Woven Wire Mesh Filter Cloth High Flow Through
80 100 200 500 Mesh Stainless Steel Woven Wire Mesh Filter Cloth High Flow Through
Specifications
Place of Origin :
Hengshui,China
MOQ :
2 Rolls
Price :
50-400 us dollar/roll
Supply Ability :
50000 Square Meter/Square Meters per Day
Delivery Time :
If we have in stock,10 days.For the product need to produce,according to order quantity,need to calculate
Packaging Details :
packed with water-proof paper, woven bag and also can be made as per client's requirement.
Material :
Stainless steel wire
Type :
Wire cloth
Mesh :
12 mesh, 14 mesh, 16 mesh, 18 mesh, 20 mesh, 22 mesh, etc.
Wire gauge :
0.025--2.0mm
Roll width :
0.5m to 6m
Roll length :
30m or customized
Size option :
full roll, square foot, swatch
Feature :
Alkali-resisting
Description

80 100 200 500 mesh stainless steel wire mesh filter cloth 1.0mx30m,fine micron filter cloth

Products

1.Material: AISI 202/304/316/304L/316L, etc.

2.Wire Dia:0.02--2.0mm.

3.Mesh: 1-- 635mesh.

4.Aperture(micron):25-- 25400μ

5.Weave pattern: dutch weave,twill weave,etc.

6. Sample: stainless steel mesh sapmle is available.

Plain Weave Each weft wire passes over one and under one warp wire, and each warp wire passes over one and under one weft wire, every weft wire have and warp wire the same diameter.

Characteristics Square aperture ,high flow through , relative high open area, as result less pressure drop during filtration suitable for all kinds of filtration up to 63 µm.

Twill Weave Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.We can supply the mesh from 30 mesh to 500 mesh.

Characteristics Square aperture, less rigid than plain weave, especially suitable for deforming, strong wire cloth due to ratio of wire diameter and aperture, it is mostly used for filtration less than 63 μm .

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch MM Inch MM
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.91 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8
100X100 .0045 .114 .0055 .14 30.3 14.2
100X100 .004 .102 .0060 .15 36.0 11.0
100X100 .0035 .089 .0065 .17 42.3 8.3
110X110 .0040 .1016 .0051 .1295 30.7 12.4
120X120 .0037 .0940 .0064 .1168 30.7 11.6
150X150 .0026 .0660 .0041 .1041 37.4 7.1
160X160 .0025 .0635 .0038 .0965 36.4 5.94
180X180 .0023 .0584 .0033 .0838 34.7 6.7
200X200 .0021 .0533 .0029 .0737 33.6 6.2
250X250 .0016 .0406 .0024 .0610 36.0 4.4
270X270 .0016 .0406 .0021 .0533 32.2 4.7
300X300 .0051 .0381 .0018 .0457 29.7 3.04
325X325 .0014 .0356 .0017 .0432 30.0 4.40
400X400 .0010 .0254 .0015 .370 36.0 3.3
500X500 .0010 .0254 .0010 .0254 25.0 3.8
635X635 .0008 .0203 .0008 .0203 25.0 2.63

Stainless Steel Wire Mesh Dutch Weave

Stainless Steel Wire Specification(Dutch Weave)
Mesh Wire Diameter (mm) Material(Alsl)
12*64 0.058*0.04 304 or 316
24*110 0.36*0.25 304 or 316
14*88 0.5*0.33 304 or 316
30*150 0.23*0.18 304 or 316
40*200 0.18*0.13 304 or 316
50*250 0.14*0.11 304 or 316
80*700 0.1*0.08 304 or 316
165*800 0.071*0.04 304 or 316
165*1400 0.06*0.04 304 or 316
200*1800 0.05*0.032 304 or 316
325*2300 0.035*0.025 304 or 316
400*2800 0.03*0.02 304 or 316

7. Stainless steel mesh Feature:

  • Corrosion resistance.
  • Anti-acid and alkali.
  • Anti-high temperture.
  • Good filter performance.
  • Long using life

8. Application:

  • In acid, alkali environment conditions sieving and filtering.
  • Petroleum industry as mud mesh,.
  • Chemical fiber industry as screen mesh.
  • Plating industry as acid cleaning mesh.

80 100 200 500 Mesh Stainless Steel Woven Wire Mesh Filter Cloth High Flow Through

About us

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
