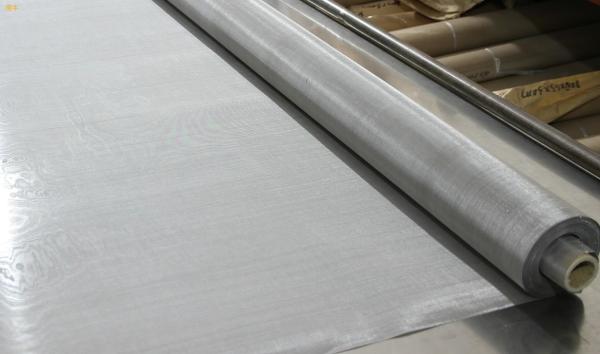

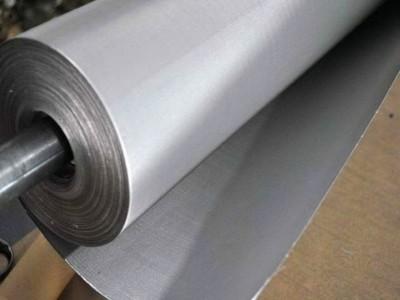

Screen Printing Stainless Steel Wire Mesh Fence 1m Wide X 30m Long For Circuit Board
Screen Printing Stainless Steel Wire Mesh Fence 1m Wide X 30m Long For Circuit Board
Screen Printing Stainless Steel Wire Mesh Fence 1m Wide X 30m Long For Circuit Board
Screen Printing Stainless Steel Wire Mesh Fence 1m Wide X 30m Long For Circuit Board
Screen Printing Stainless Steel Wire Mesh Fence 1m Wide X 30m Long For Circuit Board
Screen Printing Stainless Steel Wire Mesh Fence 1m Wide X 30m Long For Circuit Board
Screen Printing Stainless Steel Wire Mesh Fence 1m Wide X 30m Long For Circuit Board
Screen Printing Stainless Steel Wire Mesh Fence 1m Wide X 30m Long For Circuit Board
Specifications
Place of Origin :
Hengshui,China
MOQ :
2 Rolls
Price :
50-400 us dollar/roll
Supply Ability :
50000 Square Meter/Square Meters per Day
Delivery Time :
If we have in stock,10 days.For the product need to produce,according to order quantity,need to calculate
Packaging Details :
packed with water-proof paper, woven bag and also can be made as per client's requirement.
Material :
Stainless steel wire
Hope shape :
Square or rectangular
Application :
printing and filter
Wire gauge :
0.025--2.0mm
Roll width :
0.5m to 6m
Roll length :
1-30m or as per requirement
Mesh size :
1-635 Mesh
Stock :
in stock
Description

Stainless Steel 304 Wire Cloth 1m wide x 30m long,screen printing mesh for Circuit board

1.Stainless steel wire mesh brief introduction

material

common material:stainelss steel 304 316 904L 2205 2207 430 310 317 309 etc.

304L 316L 430 904 310S

special material:pure nickel wire, Ni-cr wire, monel, inconel wire etc.
wire diameter 0.023-2.8mm
weaving type

plain weave, twill weave and dutch weave, bamboo weave

Hollander weave etc.
mesh counts 1-2300meshes
micron size 500 400 300 200 100 80 70 25 micron
technique woven wire mesh
mesh rolls size 1x30m 2x30m 1.524x30m 0.914x30m etc.
sample free and avaliable
surface flat and bright

2.Feature of the stainless steel wire mesh

  • Corrosion resistance.
  • Anti-acid and alkali resistance
  • Anti-high temperture.
  • Good filter performance.
  • Long using life

3.Application of the stainelss steel wire mesh

  • In acid, alkali environment conditions sieving and filtering.
  • Petroleum industry as mud mesh,.
  • Chemical fiber industry as screen mesh.
  • Plating industry as acid cleaning mesh.

4.Stainless Steel Square Woven Wire Mesh Weaving Styles

Screen Printing Stainless Steel Wire Mesh Fence 1m Wide X 30m Long For Circuit Board

Note:The weaving is determined according to our customers' specific requirements, such as the material, the wire diameter, the size of the mesh , width and length.

5.Stainless Steel Square Woven Wire MeshCharacteristics

Square Wire Mesh made of selected plain steel wire offers precise construction, uniform opening, excellent corrosion and rust resistance.Square aperture,high flow through and relative high open area,as result less pressure drop during filtration.Meantime stainless steel square mesh also has the features of acid resistance , alkaline-resisting property, heat-resisting feature, wear-resistant and high temperature property.

6.Detail specification sheet of stainless steel wire mesh

  • Stainless Steel Wire Mesh
    mesh/inch wire diameter
    mm    		 aperture
    mm    		 mesh/inch wire diameter
    mm    		 aperture
    mm
    2mesh 1.80 10.90 60mesh 0.15 0.273
    3mesh 1.60 6.866 70mesh 0.14 0.223
    4mesh 1.20 5.15 80mesh 0.12 0.198
    5mesh 0.91 4.17 90mesh 0.11 0.172
    6mesh 0.80 3.433 100mesh 0.10 0.154
    8mesh 0.60 2.575 120mesh 0.08 0.132
    10mesh 0.55 1.990 140mesh 0.07 0.111
    12mesh 0.50 1.616 150mesh 0.065 0.104
    14mesh 0.45 1.362 160mesh 0.065 0.094
    16mesh 0.40 1.188 180mesh 0.053 0.088
    18mesh 0.35 1.060 200mesh 0.053 0.074
    20mesh 0.30 0.970 250mesh 0.04 0.061
    26mesh 0.28 0.696 300mesh 0.035 0.049
    30mesh 0.25 0.596 325mesh 0.03 0.048
    40mesh 0.21 0.425 350mesh 0.03 0.042
    50mesh 0.19 0.318 400mesh 0.025 0.0385
    Width of Stainless Steel Wire Mesh: 0.6m-6.0m

Screen Printing Stainless Steel Wire Mesh Fence 1m Wide X 30m Long For Circuit Board
