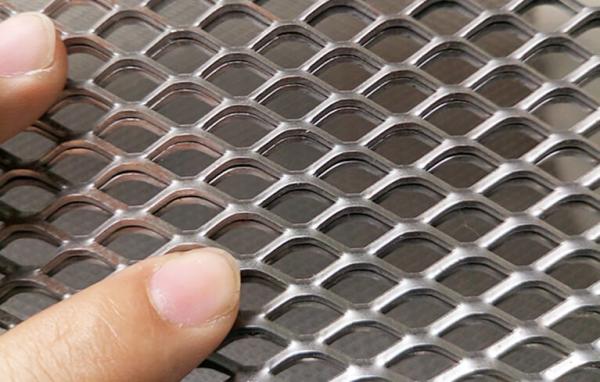

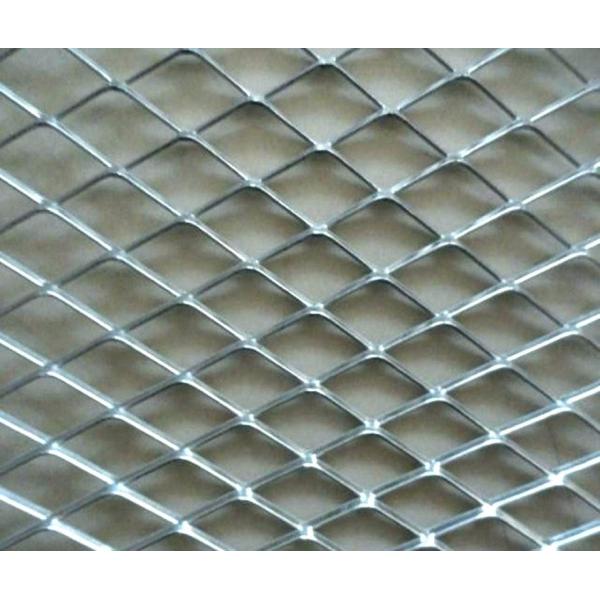

Stainless Steel Expanded Metal Diamond Wire Mesh 0.5mm-15mm Thickness For Filter
Stainless Steel Expanded Metal Diamond Wire Mesh 0.5mm-15mm Thickness For Filter
Stainless Steel Expanded Metal Diamond Wire Mesh 0.5mm-15mm Thickness For Filter
Stainless Steel Expanded Metal Diamond Wire Mesh 0.5mm-15mm Thickness For Filter
Specifications
Place of Origin :
Hengshui,China
MOQ :
20 Square meter
Price :
According to order quantity negotiated
Supply Ability :
10000 Square Meter/Square Meters per Day
Packaging Details :
In waterproof paper in rolls or in pallet. Custom packing available at request
Material :
Galvanized, Painting, Aluminum
Type :
Expanded Mesh
Application :
Protecting Mesh
Color :
customized
Thickness :
0.5mm-15mm
Hole shape :
Diamond
Description
Stainless Steel Expanded Metal Diamond Wire Mesh,stainless steel expanded metal wire mesh for filter
Product name Aluminium expanded metal
Material Aluminum plate, Al-Mg alloy plate.
Spec

Thickness:0.3-10mm

LWD:3-300mm

SWD:3-150mm
Mesh size 1220*2440mm,1200*2400mm,1000*2000mm or customized
Hole shape Diamond,square, hexagonal, round holes, triangle holes, scale, etc.
Surface treatment

1.Powder coated

2.Anodized

3.Paint

4.Fluorocarbon spraying

5.Polishing

6.Hot dipped galvanized/ cold galvanized
Packing

1.On pallet with waterproof cloth,the biggest width is 1500mm

2.In wooden case with waterproof paper

3.In carton box

4.In roll with woven bag,the biggest width is 3000mm

5.In bulk or In bundle

Stainless Steel Expanded Metal Diamond Wire Mesh 0.5mm-15mm Thickness For Filter

LWD: diamond shaped hole, long way of the diagonal length

SWD: diamond shaped hole, short way of the diagonal length

Strand width:Steel plate mesh diamond hole edge Terrier is making a wide wire stem length of the metal plate.

plate thickness: 0.4-8mm

Specification List of Expanded Metal sheet
Sheet Thickness Opening in Width Opening in Length Strand Width Roll Width Roll Length Weight
(mm) (mm) (mm) (mm) (m) (m) (kg/m2)
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5
4 50 100 4 2 2 11.15
4 60 120 4 2 7.5 4
4 80 180 4 2 10 3
4 100 200 4 2 12 2.5
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
5 75 150 5 2 10 3
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26


Stainless Steel Expanded Metal Diamond Wire Mesh 0.5mm-15mm Thickness For Filter

Customize Design Anti-Corrosive Expanded Metal Mesh

Features:

Weight is light enough for outer wall hanging

Anti-corrosive

Rainstorm or isolation won`t hurt

Visibility and colorful

Used as decorative mesh for building outer wall ,radiator cover mesh

Easily fabricated, finished, installed and formed

Application

expanded metal used with concrete in buildings and construction, maintenance of equipment,

making of arts and crafts, covering screen for first class sound case. Also fencing for super highway,

studio,highway.

Expanded wire mesh application
Stainless Steel Expanded Metal Diamond Wire Mesh 0.5mm-15mm Thickness For Filter
Our other wire mesh series

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.It have been 15 years that we manufacture and exported wire mesh product,our main product is stainless steel woven wire mesh,we keep the good manufacture technique of wire mesh product,to client orders,we will finish it within our shortest production time while keep mesh quality.

Stainless Steel Expanded Metal Diamond Wire Mesh 0.5mm-15mm Thickness For Filter
Product series
Stainless steel woven wire mesh
welded wire mesh
knitted wire mesh
expanded wire mesh
hexagonal wire mesh
Stainless Steel Expanded Metal Diamond Wire Mesh 0.5mm-15mm Thickness For Filter
