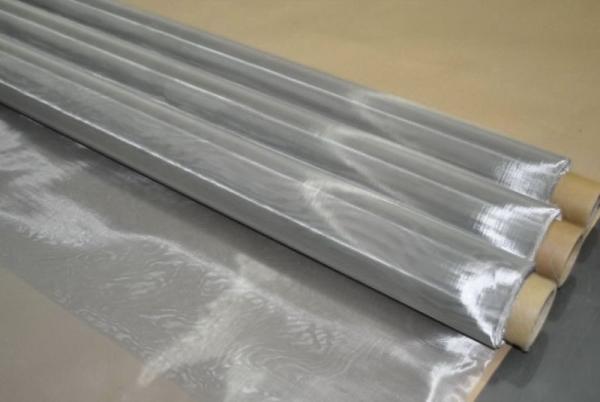

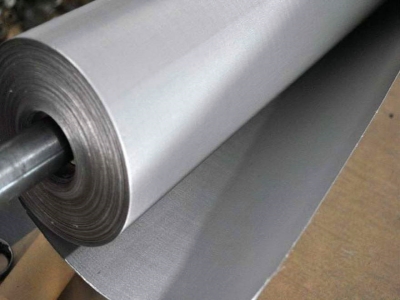

AISI 201 202 304 316 316l 310 430 904l plain dutch twill stainless steel wire mesh for filtration,(In stock)

introduce of 304 306 316 stainless steel wire mesh for filter(In stock) :

Material: SUS304N/304HPS/316L stainless steel wire

Weave Type: plain

Wire Diameter: 20 micron

Aperture: 68 micron

Thickness: 43-44 micron

Feature of 304 306 316 stainless steel wire mesh for filter(In stock) :

• High tension,
• high precision,
• low elongation,
• high yield strength,
• high wear resistance,
• static electricity,
• thermal resistance,

Stainless Steel Square Woven Wire Mesh Weaving Styles

Note:The weaving is determined according to our customers' specific requirements, such as the material, the wire diameter, the size of the mesh , width and length.

5.Stainless Steel Square Woven Wire MeshCharacteristics

Square Wire Mesh made of selected plain steel wire offers precise construction, uniform opening, excellent corrosion and rust resistance.Square aperture,high flow through and relative high open area,as result less pressure drop during filtration.Meantime stainless steel square mesh also has the features of acid resistance , alkaline-resisting property, heat-resisting feature, wear-resistant and high temperature property.

Detail specification sheet of stainless steel wire mesh

• Stainless Steel Wire Mesh
  mesh/inch	wire diameter mm	aperture mm		mesh/inch	wire diameter mm	aperture mm
  2mesh	1.80	10.90		60mesh	0.15	0.273
  3mesh	1.60	6.866		70mesh	0.14	0.223
  4mesh	1.20	5.15		80mesh	0.12	0.198
  5mesh	0.91	4.17		90mesh	0.11	0.172
  6mesh	0.80	3.433		100mesh	0.10	0.154
  8mesh	0.60	2.575		120mesh	0.08	0.132
  10mesh	0.55	1.990		140mesh	0.07	0.111
  12mesh	0.50	1.616		150mesh	0.065	0.104
  14mesh	0.45	1.362		160mesh	0.065	0.094
  16mesh	0.40	1.188		180mesh	0.053	0.088
  18mesh	0.35	1.060		200mesh	0.053	0.074
  20mesh	0.30	0.970		250mesh	0.04	0.061
  26mesh	0.28	0.696		300mesh	0.035	0.049
  30mesh	0.25	0.596		325mesh	0.03	0.048
  40mesh	0.21	0.425		350mesh	0.03	0.042
  50mesh	0.19	0.318		400mesh	0.025	0.0385
  Width of Stainless Steel Wire Mesh: 0.6m-6.0m

About us

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
