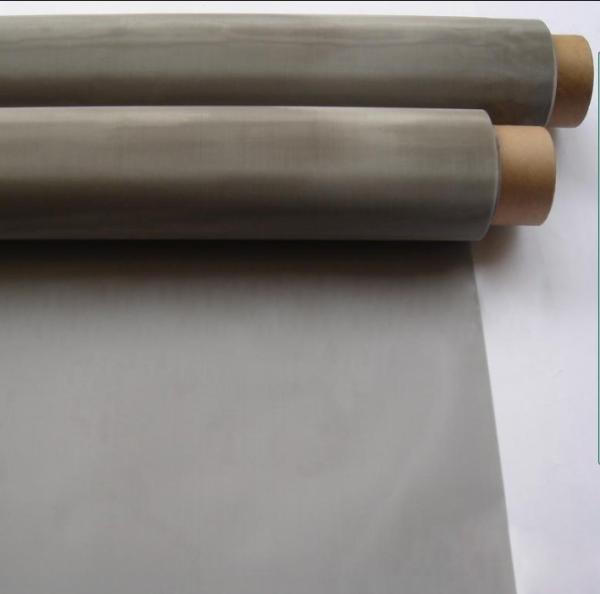

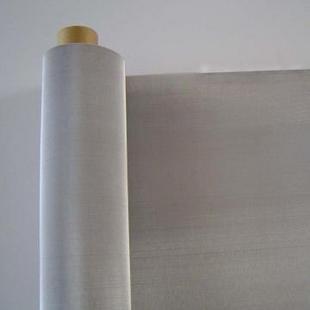

904 L Stainless Steel Woven Wire Mesh Filter Cloth With Rust / Corrosion Resistance
904 L Stainless Steel Woven Wire Mesh Filter Cloth With Rust / Corrosion Resistance
904 L Stainless Steel Woven Wire Mesh Filter Cloth With Rust / Corrosion Resistance
904 L Stainless Steel Woven Wire Mesh Filter Cloth With Rust / Corrosion Resistance
Specifications
Place of Origin :
Hengshui,China
MOQ :
2 Rolls
Price :
50-400 us dollar/roll
Supply Ability :
50000 Square Meter/Square Meters per Day
Delivery Time :
If we have in stock,10 days.For the product need to produce,according to order quantity,need to calculate
Packaging Details :
packed with water-proof paper, woven bag and also can be made as per client's requirement.
Material :
Stainless steel wire
Hope shape :
Square or rectangular
Type :
Weave Wire Mesh
Application :
sea water filtraion
Roll width :
0.5m to 6m
Roll length :
1-30m or as per requirement
Mesh size :
1-635 Mesh
Stock :
in stock
Description

904 L Stainless Steel Filter Cloth, filter cloth stainless steel with rust and corrosion resistance performance

1.Brief introduction of stainless steel woven filter cloth
Material 904L stainless steel wire
Wire diameter 0.0503-2.03mm
Weave style Plain weave/Twill weave/Dutch weave
Mesh counts 2-200 mesh
Width 2-6m,can be customized
Technique weave
Surfuce Smooth
Application

1. 904L stainless steel wire mesh is mainly used in manufacturing parts which are resistant to air,steam,water and oxidizing acid corrosion.

2. 904Lstainless steel wire mesh can be used for industrial filtering, food industry filtering, sugar industry filtering etc.

2.Stainless Steel Square Woven Wire Mesh Weaving Styles

904 L Stainless Steel Woven Wire Mesh Filter Cloth With Rust / Corrosion Resistance

Note:The weaving is determined according to our customers' specific requirements, such as the material, the wire diameter, the size of the mesh , width and length.

4.Stainless Steel Square Woven Wire MeshCharacteristics

Square Wire Mesh made of selected plain steel wire offers precise construction, uniform opening, excellent corrosion and rust resistance.Square aperture,high flow through and relative high open area,as result less pressure drop during filtration.Meantime stainless steel square mesh also has the features of acid resistance , alkaline-resisting property, heat-resisting feature, wear-resistant and high temperature property.

Features:

  • Corrosion resistance.
  • Anti-acid and alkali
  • Anti-high temperture.
  • Good filter performance.
  • Long using life
  • 3.Stainless steel woven wire mesh size
  • Stainless Steel Wire Mesh
    mesh/inch wire diameter
    mm    		 aperture
    mm    		 mesh/inch wire diameter
    mm    		 aperture
    mm
    2mesh 1.80 10.90 60mesh 0.15 0.273
    3mesh 1.60 6.866 70mesh 0.14 0.223
    4mesh 1.20 5.15 80mesh 0.12 0.198
    5mesh 0.91 4.17 90mesh 0.11 0.172
    6mesh 0.80 3.433 100mesh 0.10 0.154
    8mesh 0.60 2.575 120mesh 0.08 0.132
    10mesh 0.55 1.990 140mesh 0.07 0.111
    12mesh 0.50 1.616 150mesh 0.065 0.104
    14mesh 0.45 1.362 160mesh 0.065 0.094
    16mesh 0.40 1.188 180mesh 0.053 0.088
    18mesh 0.35 1.060 200mesh 0.053 0.074
    20mesh 0.30 0.970 250mesh 0.04 0.061
    26mesh 0.28 0.696 300mesh 0.035 0.049
    30mesh 0.25 0.596 325mesh 0.03 0.048
    40mesh 0.21 0.425 350mesh 0.03 0.042
    50mesh 0.19 0.318 400mesh 0.025 0.0385
    Width of Stainless Steel Wire Mesh: 0.6m-6.0m

904 L Stainless Steel Woven Wire Mesh Filter Cloth With Rust / Corrosion Resistance

About us

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
904 L Stainless Steel Woven Wire Mesh Filter Cloth With Rust / Corrosion Resistance
