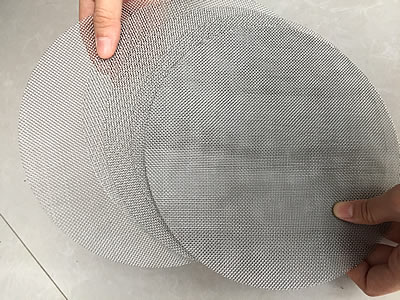

2-320L / Min Flow 316 Stainless Steel Knitted Wire Mesh Disc AISI304 0.04-1mm Thickness
2-320L / Min Flow 316 Stainless Steel Knitted Wire Mesh Disc AISI304 0.04-1mm Thickness
2-320L / Min Flow 316 Stainless Steel Knitted Wire Mesh Disc AISI304 0.04-1mm Thickness
2-320L / Min Flow 316 Stainless Steel Knitted Wire Mesh Disc AISI304 0.04-1mm Thickness
2-320L / Min Flow 316 Stainless Steel Knitted Wire Mesh Disc AISI304 0.04-1mm Thickness
2-320L / Min Flow 316 Stainless Steel Knitted Wire Mesh Disc AISI304 0.04-1mm Thickness
Specifications
Place of Origin :
Hengshui,China
MOQ :
100 Pieces
Price :
According to order quantity,negotiable
Supply Ability :
5000 Pieces per week
Packaging Details :
1)Standard export packing in carton or wooden box. 2)According to the requirements of the customer.
Material :
Stainless steel 201.304.316
Hole Shape :
Round Square
Mesh count :
2-635 Mesh
Thickness :
0.04-1mm
Weave style :
Plain,twill,dutch
Width :
20-80mm
Description

10 20 100 200 250 mesh round stainless steel mesh filter disc,AISI304 316 Stainless Steel Wire Mesh Metal Filter Disc

Product Shape

Rectangle,Square,Round,oval,Circular,Rectangular,Cap,Waist and Abnormity
Structure Single layer, Double layer, Multi-layers

Process Technique

 Woven, Perforated, Welded
Material

Stainless steel wire mesh, Brass Wire Mesh,etc

Edge Material

 Stainless steel, Brass, Aluminum

Out diameter

 2mm-800mm
Application Wire mesh filter disc is mainly used in distillation, absorption, evaporation and filtration process of rubber, plastic industry, the screening of grain and oil, petroleum, chemical industry, light industry, medicine, metallurgy, machinery, shipbuilding and other industries. Wire mesh filter disc also can be used as air filter for car.


SPL200 90 175
Technical parameters:
1. Applicable nominal diameter :15-200mm
2 Flow :2-320L / min
Filtration accuracy :5-400um
Material: phosphor bronze wire, stainless steel smooth mesh, twill mesh, I-Net
5 maximum operating temperature: 95 °C
6. Maximum working pressure: 0.8Mpa
Performance features:
1 made of wire mesh filter
2 has a high strength, the ability to pass oil
3 can be reused
4. Reliable filter for easy cleaning and features
Application of occasions:
Filter, filter press, ship, diesel engine oil system applicable to various types of thin oil lubrication device filtering
The chemical fiber industry, synthetic fibers and man-made fiber textile various models of spinning nozzle front side and other similar conditions, textile dope impurity filter, used in petroleum, electric power, chemical industry, metallurgy and other industrial fields to enhance oil cleanliness.

Woven type of stainless steel filter disc

2-320L / Min Flow 316 Stainless Steel Knitted Wire Mesh Disc AISI304 0.04-1mm Thickness

Details sheet:

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
Inch MM Inch MM
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.91 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8
100X100 .0045 .114 .0055 .14 30.3 14.2
100X100 .004 .102 .0060 .15 36.0 11.0
100X100 .0035 .089 .0065 .17 42.3 8.3
110X110 .0040 .1016 .0051 .1295 30.7 12.4
120X120 .0037 .0940 .0064 .1168 30.7 11.6
150X150 .0026 .0660 .0041 .1041 37.4 7.1
160X160 .0025 .0635 .0038 .0965 36.4 5.94
180X180 .0023 .0584 .0033 .0838 34.7 6.7
200X200 .0021 .0533 .0029 .0737 33.6 6.2
250X250 .0016 .0406 .0024 .0610 36.0 4.4
270X270 .0016 .0406 .0021 .0533 32.2 4.7
300X300 .0051 .0381 .0018 .0457 29.7 3.04
325X325 .0014 .0356 .0017 .0432 30.0 4.40
400X400 .0010 .0254 .0015 .370 36.0 3.3
500X500 .0010 .0254 .0010 .0254 25.0 3.8
635X635 .0008 .0203 .0008 .0203 25.0 2.63

2-320L / Min Flow 316 Stainless Steel Knitted Wire Mesh Disc AISI304 0.04-1mm Thickness

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen

2-320L / Min Flow 316 Stainless Steel Knitted Wire Mesh Disc AISI304 0.04-1mm Thickness

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.
