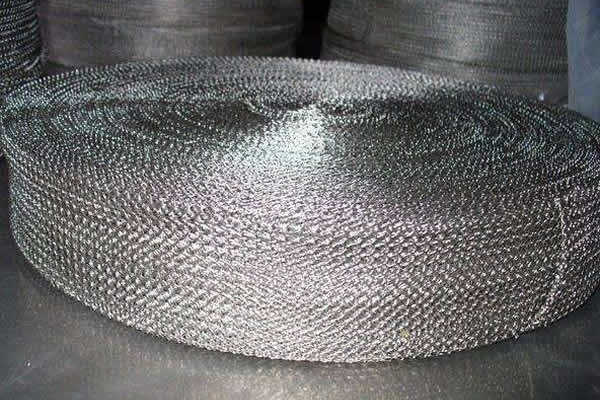

Stainless Steel Crimped Wire Mesh Compressed Knitted Irregular Hope Shape
Stainless Steel Crimped Wire Mesh Compressed Knitted Irregular Hope Shape
Stainless Steel Crimped Wire Mesh Compressed Knitted Irregular Hope Shape
Stainless Steel Crimped Wire Mesh Compressed Knitted Irregular Hope Shape
Stainless Steel Crimped Wire Mesh Compressed Knitted Irregular Hope Shape
Stainless Steel Crimped Wire Mesh Compressed Knitted Irregular Hope Shape
Specifications
Place of Origin :
Hengshui,China
MOQ :
1 Piece
Price :
600-1000 us dollar per ton
Supply Ability :
500 rolls per week
Delivery Time :
For the mesh we have in stock,5 working days,custom made depend on quantity
Material :
Stainless Steel Wire
Type :
Knitted Wire Mesh
Hope shape :
Irregular
Weave Style :
Crochet Weaving
Weight :
20kg/roll, 25kg/roll, 30kg/roll
Width :
40,100,150,300,600mm
Description

stainless steel wire compressed knitted wire mesh customized,Knitted Stainless Steel Wire Mesh/Knitted Wire

Material:Gas-liquid Filter mesh is made of Stainless steel wire304,316,316L, copper wire,

titanium wire ,Monel wire,galvanized iron wire, polyamide fiber or F46 wire.

Wire dia: 0.10mm-0.55mm .Most common:0.20mm-0.25mm.The wire could be flat silk or round silk.

Mesh size:4mm×3mm,5mm×6mm,2mmx4mm,4mmx5mm etc.

Width:40mm,80mm,100mm,150mm,200mm,300mm,400mm,500mm,600mm,800mm,1000mm,1200mm,1400mm,1500mm.

Length: 10m,20m,50m,100m,200m.

Application:

Gas liquid filter mesh serves well in filtering and deleting the particle mixture in foam, liquid and air, by way of distillating, absorbing, evaporating and filtering process, in petroleum, chemicals, metallurgy, machine, pharmaceuticals, automobile and environmental protection.

Features of gas-liquid filter:
A variety of metal wire and non-metallic silk production, the specific absorption of evaporation, and high temperatures, strong corrosion resistance, the elimination of steam in the attach the gas or liquid droplets.

Specification of Flattened wire demister mesh
Items Wire Dimeter(mm) Mesh Opening/loop size(mm) Number of Needles Maximum Width(mm) Minimum Width(mm)
DM-36 0.1 X 0.3 2 X 4 36 60 55
DM-34 0.1 X 0.3 4.5X4 2.5X4 34 150 100
DM-40 0.1 X 0.4 4.5X5.5 2.5X5.5 40 150 120
DM-56 0.1 X 0.4 4X3.5 2.5X3.5 56 205 180
DM-65 0.1 X 0.4 4X4 3X4 65 260 240
DM-94 0.2 X 0.4 5.2X3.5 3X3.5 94 420 380
DM-102 0.2 X 0.4 7.5X5 5X5 102 565 490
DM-128 0.2 X 0.5 5X4 2.5X4 128 560 470

Common type Demister Mesh Specification Table

Wire Diameter

0.07-0.55(round wire or pressed into flat wire)

Commonly used is 0.20mm-0.25mm
Mesh Size 2X3mm 4X5mm 5X7mm 12X6mm (according to customer request for fine-tuning)
Opening Form Big holes and small holes cross configuration
Width Range 40mm 80mm 100mm 150mm 200mm 300mm 400mm 500mm 600mm 800mm 1000mm 1200mm 1400mm
Mesh Shape Planar and Corrugated type(also named V waving type)

Specification of Flattened wire demister mesh
Items Wire Dimeter(mm) Mesh Opening/loop size(mm) Number of Needles Maximum Width(mm) Minimum Width(mm)
DM-36 0.1 X 0.3 2 X 4 36 60 55
DM-34 0.1 X 0.3 4.5X4 2.5X4 34 150 100
DM-40 0.1 X 0.4 4.5X5.5 2.5X5.5 40 150 120
DM-56 0.1 X 0.4 4X3.5 2.5X3.5 56 205 180
DM-65 0.1 X 0.4 4X4 3X4 65 260 240
DM-94 0.2 X 0.4 5.2X3.5 3X3.5 94 420 380
DM-102 0.2 X 0.4 7.5X5 5X5 102 565 490
DM-128 0.2 X 0.5 5X4 2.5X4 128 560 470

Specification of single round wire demister mesh
Wire Diameter(mm) Width (mm) Number of Stitches Per cm on length Number of Stitches Per cm Across Lay Flat
Fine Mesh 0.08-0.18 6-300 3.5 4.4
Medium-Fine Mesh 0.16 40-600 2.4 3.5
Standard Mesh 0.18-0.35 30-1000 1.6 1.9
Coarse Mesh 0.25-0.40 30-1000 1.6 0.74
Super Coarse Mesh 0.4-0.5 100-350 0.5 0.5

Note: Demister Mesh Pad is made of knitted wire mesh, Demister mesh pad can be in different shape and at customer’s request. Can be round, half round, square and other shapes . And the frame of the demister mesh pad can be made of stainless steel flat trip or stainless steel round wire. Welded together with knitted mesh.

Note: Demister Mesh Pad is made of knitted wire mesh, Demister mesh pad can be in different shape and at customer’s request. Can be round, half round, square and other shapes . And the frame of the demister mesh pad can be made of stainless steel flat trip or stainless steel round wire. Welded together with knitted mesh.

Stainless Steel Crimped Wire Mesh Compressed Knitted Irregular Hope Shape

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

Stainless Steel Crimped Wire Mesh Compressed Knitted Irregular Hope Shape

In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.
