Liquid Filter Wedge Wire Screen Panels For Mining / Oil Field Screening Filtration
Liquid Filter Wedge Wire Screen Panels For Mining / Oil Field Screening Filtration
Liquid Filter Wedge Wire Screen Panels For Mining / Oil Field Screening Filtration
Liquid Filter Wedge Wire Screen Panels For Mining / Oil Field Screening Filtration
Liquid Filter Wedge Wire Screen Panels For Mining / Oil Field Screening Filtration
Liquid Filter Wedge Wire Screen Panels For Mining / Oil Field Screening Filtration
Specifications
Place of Origin :
Hengshui,China
MOQ :
50 Square meters
Supply Ability :
3000 square meters
Packaging Details :
Plastic film by crate
Material :
Metal, Stainless steel wedge wire,SS304,316,316L
Usage :
Liquid Filter
Thickness :
3mm-12mm
Slot Size :
200 500 700 1000 microns
Profile wire size :
1x2mm,2x3mm
Support rod size :
25x3mm,3x5mm
Description

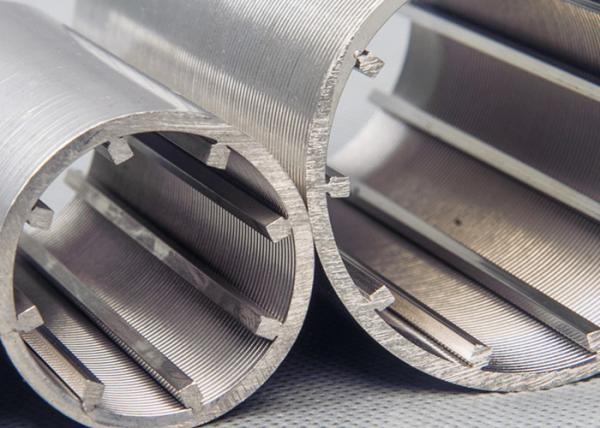

Wedge Wire Screen for mining and oilfield screening filtration,Wedge wire v wrap screen pipe/tube

Product Description

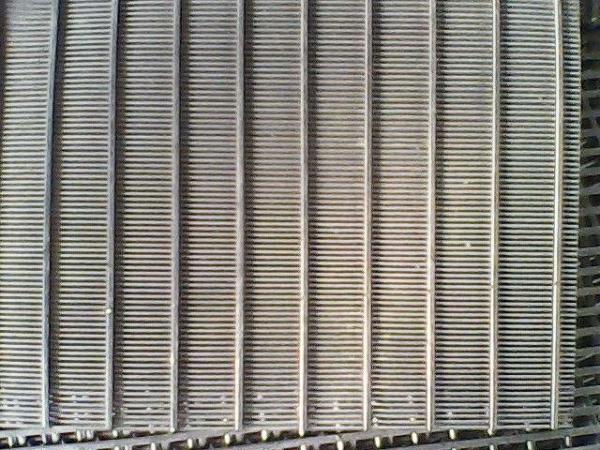

Wedge Wire Screen is welded by profile V-wire and support wires,also called Johnson screen.It has large filter area because of slot opening,vee wire structure is easy for automatic back washing and avoid pipe blocking.The pressure will be reduced when water flows in greater filter area,avoid the grains of sand flow in the wedge wire tube in the high pressure conditions,so extend the pipe's life.

Stainless steel mine sieving filter wedge wire mesh screen are producing by profile wire and support rods with the materials of galvanized steel, stainless steel and low carbon steel.

Wedge wire is a welded steel structure, mainly used for filtration, separation and retention media.
1.Material: 304 316 316L stainless steel wedge wire
2.Slot: 0.2mm-5mm
3.Profile wire size: 1x2mm, 1.5x2.5mm, 2x3mm, 3x4mm etc
4.Support bar size: 2x3mm, 3x4mm, 3x5mm etc
5.If you have drawing, please send us.

Applications of stainless steel mine sieving filter wedge wire mesh screen

Stainless steel mine sieving filter wedge wire mesh screen is the widely using screen for filtration and separation in liquid/gas, mining, food, water wasting, and so on.

Wire Width Wire Height Relief Angle Typical Support Rods
30V .030" .06" 10 .125" round
45V .045" .09" 10 .125" round
63V .063" .11" 13 .156" round
69U .069" .17" 8 .075" x 1" bar
93V .093" .15" 13 .25" round or .075" bar
93U .093" .17" 5 .25" or .38" round
125V .125" .20" 13 .38" round

Liquid Filter Wedge Wire Screen Panels For Mining / Oil Field Screening Filtration

Liquid Filter Wedge Wire Screen Panels For Mining / Oil Field Screening Filtration

Liquid Filter Wedge Wire Screen Panels For Mining / Oil Field Screening Filtration

Our stainless steel woven wire mesh woven type cover plain weave,twill weave,dutch weave,plain dutch weave,twill dutch weave.
For plain weave,our mesh size range is 1-500 mesh,
twill weave 325×325mesh,
plain dutch 70×400mesh,
twill dutch 400×2800mesh,
reverse dutch weave 720×150mesh.
Our company website is www.stainlesssteelwiremeshfactory.com,our product range also cover following items,
  • stainless steel woven wire mesh
  • welded wire mesh
  • crimped wire mesh
  • hexagonal wire mesh
  • expanded wire mesh

Liquid Filter Wedge Wire Screen Panels For Mining / Oil Field Screening Filtration

About us

We have manufacture and export stainless steel wire mesh for 15 years so far,during this period of time we have gathered rich experience in terms of production technique of wire mesh and export standard,this lead us have ability to provide good quality wire mesh product while ensure shortest lead time.
