Stainless Steel Woven Crimped Wire Mesh Corrosion Resisting For Car Grille Mesh
Stainless Steel Woven Crimped Wire Mesh Corrosion Resisting For Car Grille Mesh
Stainless Steel Woven Crimped Wire Mesh Corrosion Resisting For Car Grille Mesh
Stainless Steel Woven Crimped Wire Mesh Corrosion Resisting For Car Grille Mesh
Specifications
Place of Origin :
Hengshui,China
MOQ :
1 roll
Price :
According to order quantity can be negotiable
Supply Ability :
2300 Meter/Meters per Month
Packaging Details :
inner kraft, outside plastic cloth, put into wooden pallet or case
Technique :
Woven
Feature :
High quality with good prices
Length :
30m or customized
Width :
0.5-2m
Hole size :
0.1-8"
Product name :
Stainless Steel Wire Mesh Screen
Description

Stainless Steel Woven Crimped Wire Mesh for Car Grille MeshStainless Steel Woven Crimped Wire Mesh/Sand Gravel screen

stainless steel crimped wire mesh, mining screen mesh, square wire mesh description:

Crimped wire mesh made of low carbon steel, galvanized steel wire or stainless steel wire. It is widely

used in industries, where sieving is prevalent. The screens are generally employed in series in order to

generate and separate the finest of particles of chemicals, fertilizers and pharmaceuticals.

Crimped Wire Mesh Weaving: Pre-crimping before Weaving. In two-way separated wave bending, locked bending, flat-topped curved, two-way bending, one-way separated wave bending.

Material:

The Product is made by low carbon iron wire, galvanized steel wire or stainless steel wire.

Specifications:

Specification
Wire diameter (mm) Aperture(mm) Wire diameter(mm) Aperture(mm)
22.0 200 4.0 15
20.0 180 3.2 30
16.0 150 3.0 30
16.0 120 3.2 25
12.0 100 3.0 25
12.0 90 2.6 30
12.0 80 2.5 30
12.0 75 2.6 25
12.0 70 2.5 25
10.0 60 2.6 20
10.0 50 2.5 20
9.0 45 2.0 25
8.0 40 1.9 25
7.5 38 2.0 20
7.0 37.5 1.9 20
7.0 35 2.0 18
7.0 32.5 1.9 18
6.5 32 2.0 15
6.0 30 1.9 15
6.0 27.5 2.0 12
6.0 25 1.9 12
6.0 20 2.0 10
5.0 25 1.9 10
5.0 22.5 1.6 15
5.0 20 1.5 15
4.5 22 1.6 12
4.5 17.5 1.5 12
4.5 15 1.6 10
4.0 20 1.5 10
wire diameter and mesh list
Wire diameter(mm) Aperture(mm) Wire diameter(mm) Aperture(mm)
2.0--1.6 3mesh 1.0--0.6 10mesh
1.8--1.2 3.5mesh 0.8--0.5 12mesh
1.6--0.7 4mesh 0.7--0.5 14mesh
1.6--0.6 5mesh 0.60--0.4 16mesh
1.5--0.8 6mesh 0.6--0.4 18mesh
1.2--0.7 8mesh 0.5--0.35 20mesh

Crimped Wire Mesh Features

Crimped wire mesh offers a general feature of strong structure, loading capacity and keeping forms.Crimped wire mesh of different materials offers different specific features.

Galvanized crimped mesh offers firm structure, good strength and economic cost.

Stainless Steel Crimped Mesh Features:
High temperature resisting, acid resisting, alkali resisting, corrosion resisting, etc.

Stainless Steel Woven Crimped Wire Mesh Corrosion Resisting For Car Grille Mesh

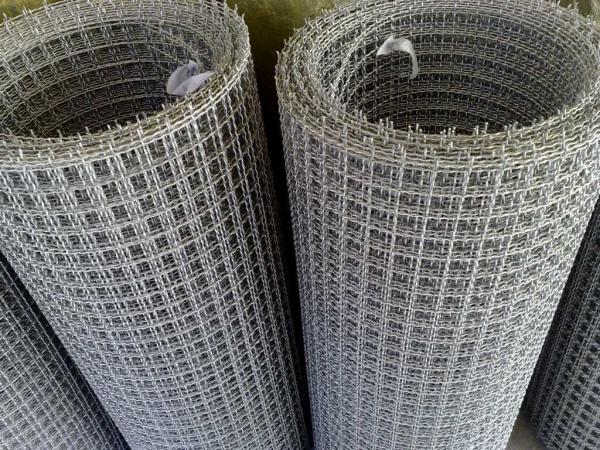

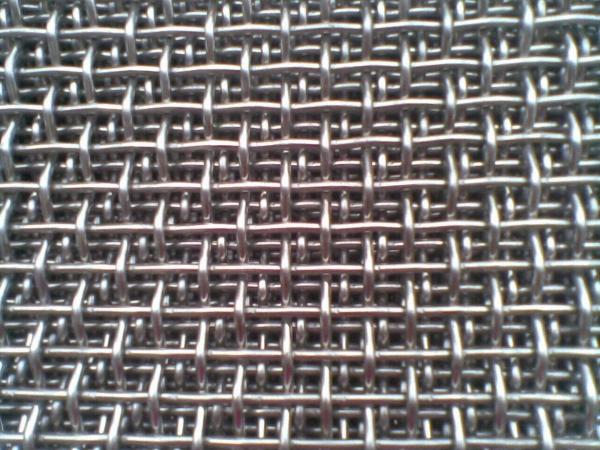

Crimped wire mesh product details

Stainless Steel Woven Crimped Wire Mesh Corrosion Resisting For Car Grille Mesh

Stainless Steel Woven Crimped Wire Mesh Corrosion Resisting For Car Grille Mesh

About our company

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.

Stainless Steel Woven Crimped Wire Mesh Corrosion Resisting For Car Grille Mesh

We are specialized in manufacture and export of stainless steel wire mesh product,if you have request please contact us.We will provide professional service and guarantee on time delivery.
