Plain Weave Stainless Steel Filter Mesh 10-200 Micron 0.35-0.5mm Thickness
Plain Weave Stainless Steel Filter Mesh 10-200 Micron 0.35-0.5mm Thickness
Plain Weave Stainless Steel Filter Mesh 10-200 Micron 0.35-0.5mm Thickness
Plain Weave Stainless Steel Filter Mesh 10-200 Micron 0.35-0.5mm Thickness
Specifications
Place of Origin :
Hengshui,China
MOQ :
100 Pieces
Price :
According to order quantity,negotiable
Supply Ability :
5000 Pieces per week
Packaging Details :
1)Standard export packing in carton or wooden box. 2)According to the requirements of the customer.
Material :
Stainless steel 201.304.316
Hole Shape :
Round Square
Mesh count :
2-635 Mesh
Thickness :
0.35-0.5mm
Weave style :
Plain
Customized :
Yes
Description

10 20 25 50 75 100 200 micron stainless steel filter mesh round disc,stainless steel mesh fabric stainless steel mesh

1. Material: Mainly AISI304, 304L, 316, 316L, 321 and SS302
2. Size: Customization
3. Standard: Stainless steel
4.Shape:circle, disc, square, oval, rectangular, kidney, cones and other special shape
5.Diameter of the filter :1-500mm, as per require
6.Type:disk, bounded type, spot-welded,more layers,single layer etc.
7.Edge material :stainless steel
8.Instruction: The main filter made by stainless steel wire mesh.
The stainless steel wire mesh is made of stainless steel plain woven, has a smooth channel, easy to clean, high temperature resistance, corrosion resistance, the screen will not fall off, the filter cycle is long.

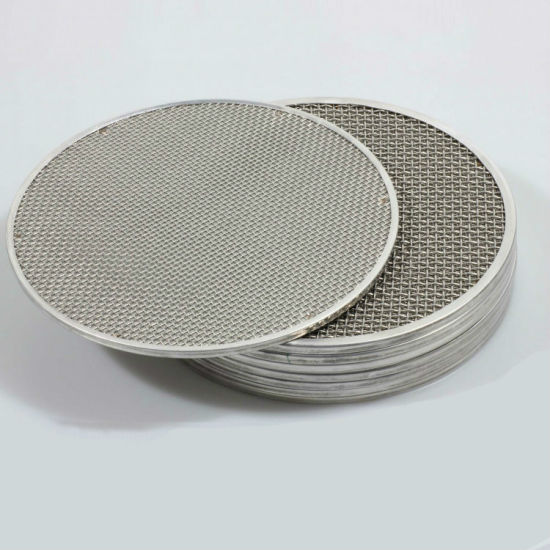

Stainless Steel Disc Filter Screen
Woven types :Plain woven.Dutch woven.
Bound edge width :1.5mm.1.8mm,2.0mm,3.0mm.in normal working .
Bound edge plate thickness :0.4mm,0.5mm.0.8mm.
Layer:single,double,multilayer.
9.Application:
coffee filtration.
Oil & Fuel Filters
Suction line strainers
Pressure line filters.
Filters for Polyester fiber production
Microfiber,leather.
woven fabrics,color masterbatch,
plastic and rubber ,PVC granulation,
sheet extrusion, carbon fiber.

Woven type of stainless steel filter disc

Plain Weave Stainless Steel Filter Mesh 10-200 Micron 0.35-0.5mm Thickness

Details sheet:

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
Inch MM Inch MM
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.91 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8
100X100 .0045 .114 .0055 .14 30.3 14.2
100X100 .004 .102 .0060 .15 36.0 11.0
100X100 .0035 .089 .0065 .17 42.3 8.3
110X110 .0040 .1016 .0051 .1295 30.7 12.4
120X120 .0037 .0940 .0064 .1168 30.7 11.6
150X150 .0026 .0660 .0041 .1041 37.4 7.1
160X160 .0025 .0635 .0038 .0965 36.4 5.94
180X180 .0023 .0584 .0033 .0838 34.7 6.7
200X200 .0021 .0533 .0029 .0737 33.6 6.2
250X250 .0016 .0406 .0024 .0610 36.0 4.4
270X270 .0016 .0406 .0021 .0533 32.2 4.7
300X300 .0051 .0381 .0018 .0457 29.7 3.04
325X325 .0014 .0356 .0017 .0432 30.0 4.40
400X400 .0010 .0254 .0015 .370 36.0 3.3
500X500 .0010 .0254 .0010 .0254 25.0 3.8
635X635 .0008 .0203 .0008 .0203 25.0 2.63

Plain Weave Stainless Steel Filter Mesh 10-200 Micron 0.35-0.5mm Thickness

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen

Plain Weave Stainless Steel Filter Mesh 10-200 Micron 0.35-0.5mm Thickness

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.
