Diamond Hole Shape Expanded Metal Mesh 0.5-6.0mm Thickness Flat Surface For Decoration
Diamond Hole Shape Expanded Metal Mesh 0.5-6.0mm Thickness Flat Surface For Decoration
Specifications
Place of Origin :
Hengshui,China
MOQ :
20 Square meter
Price :
According to order quantity negotiated
Supply Ability :
10000 Square Meter/Square Meters per Day
Packaging Details :
In waterproof paper in rolls or in pallet. Custom packing available at request
Material :
Galvanized, Painting, Aluminum
Application :
Protecting Mesh
Color :
customized
Sheet Thickness :
0.5-8mm
Hole shape :
Diamond
Description
Expanded Metal Mesh for Decoration,Expanded Metal Mesh in 0.5mm - 6.0mm Thickness

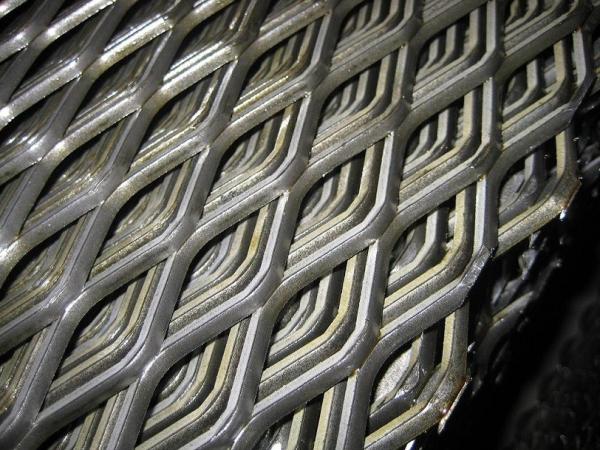

Expanded metal mesh is also called pulled plate wire mesh. A rigid piece of metal that has been slit and drawn into an open mesh pattern in a single operation. It is stronger, lighter in weight and more rigid than the original base metal.

Expanded metal mesh material are carbon steel plate, stainless steel, galvanized steel, aluminum, aluminum foil, lead, nickel plate, titanium, aluminum-magnesium alloy panels. Conventional mesh is formed in a diamond pattern. It has other pattern of hexagonal, round, triangle, scale-like opening.

Material: Low carbon steel plate, Galvanized plate, stainless steel plate, copper plate, nickel plate.

Features: Flat surface, smooth, beautiful, strong and durable, wide application.

Specifications: Coil sheet 1X20cm, flat sheet 1X2m. Or do as customer requirment
Processing: Punching

Opening: Round, oval, square, rectangular, rhombus, hexagon, scale shape and compisition of difference shapes, also other specical shape.
Process: Stamping, leveling, cutting, bending, reeling, welding, shaping and surface treatment.



Specifications of Aluminium Expanded Metal Mesh
Item
No.		 Thickness
of Aluminium Sheets
(mm)		 Nominal Size of Mesh Opening (mm) Standard Dimension of AL Expanded Mesh Calculated Weight
(kgs/m2)
SWD
(mm)		 LWD
(mm)		 Strand
(Strand Width, mm)		 LWM
(Width, mm)		 SWM
(Length, mm)
1 0.5 3 6 RC 100 RC 0.6
2 0.5 3.2 8 RC 200 2000 0.6
3 0.5 5 10 RC RC RC 0.6
4 0.5 6 12.5 RC 1800 3000 0.37
5 0.5 7 14 RC 1800 3000 0.37
6 0.5 8 16 RC 2000 3340 0.37
7 0.5 9 20 RC 2000 3340 0.37
8 0.5 10 25 1.12 2000 4000 0.3
9 0.5 12 30 1.35 1800 3600 0.3
10 0.8 10 25 1.12 RC RC 0.3
11 0.8 12 30 1.35 RC RC 0.48
12 0.8 15 40 1.68 RC RC 0.48
13 1 10 25 1.12 RC RC 0.48
14 1 12 30 1.35 RC RC 0.6
15 1 15 40 1.68 RC RC 0.6
16 1.2 10 25 1.13 RC RC 0.6
17 1.2 12 30 1.35 RC RC 0.73
18 1.2 15 40 1.68 RC RC 0.73
19 1.2 18 50 2.03 RC RC 0.73
20 1.5 15 40 1.69 RC RC 0.91
21 1.5 18 50 2.03 RC RC 0.91
22 1.5 22 60 2.47 RC RC 0.91
23 1.5 29 80 3.25 RC RC 1.21
24 2 18 50 2.03 1800 3600 1.21
25 2 22 60 2.47 2000 4000 1.21
26 2 29 80 3.26 2500 5000 1.52
27 2 36 100 4.05 RC RC 1.52
28 2 44 120 4.95 RC RC 1.82
29 3 36 100 4.05 RC RC 1.82
30 3 44 120 4.95 RC RC 1.82
31 3 55 150 4.99 2000 5000 1.47
2500 6400
32 3 65 180 4.60 2000 6400 1.14
2500 8000
33 4 22 60 4.50 1500 2000-3000 4.42
34 4 30 80 5 RC 2000-4000 3.60
35 4 38 100 6 2000 2000-4500 3.41
36 5 24 60 6 RC 2000-3000 6.76
37 5 35 80 6 RC 2000-4000 5.07
38 5 38 100 7 RC 2000-4500 5.05
39 5 56 150 6 RC 2000-6000 2.90
40 5 76 200 6 RC 2000-6000 2.13
41 6 32 80 7 RC 2000-4000 7.10
42 6 38 100 7 RC 2000-4500 5.98
43 6 56 150 7 RC 2000-6000 4.05
Note:
RC: Reasonably Customized.
Any other specifications of aluminium expanded metal mesh sheets with reasonable technical parameters, including LWM and SWM, are also available upon request.



Diamond Hole Shape Expanded Metal Mesh 0.5-6.0mm Thickness Flat Surface For Decoration

Customize Design Anti-Corrosive Expanded Metal Mesh
Features:
Weight is light enough for outer wall hanging
Anti-corrosive
Rainstorm or isolation won`t hurt
Visibility and colorful
Used as decorative mesh for building outer wall ,radiator cover mesh
Easily fabricated, finished, installed and formed

Application
expanded metal used with concrete in buildings and construction, maintenance of equipment,
making of arts and crafts, covering screen for first class sound case. Also fencing for super highway,
studio,highway.

Expanded wire mesh application
Diamond Hole Shape Expanded Metal Mesh 0.5-6.0mm Thickness Flat Surface For Decoration
Our other wire mesh series

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.It have been 15 years that we manufacture and exported wire mesh product,our main product is stainless steel woven wire mesh,we keep the good manufacture technique of wire mesh product,to client orders,we will finish it within our shortest production time while keep mesh quality.

Diamond Hole Shape Expanded Metal Mesh 0.5-6.0mm Thickness Flat Surface For Decoration
