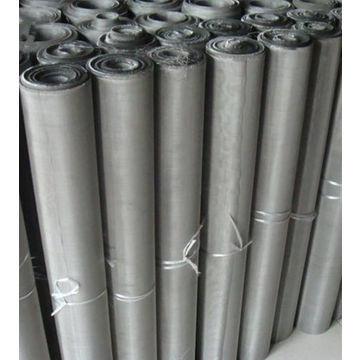

Stainless Steel Wire Mesh for Cylinder Mould in Paper Machine,316 Fine Stainless Steel Wire Mesh for Filter

• Product description:

  Stainless steel is acid resistance, alkali resistance, corrosion resistance, high temperature resistance.It is widely used in aviation, aerospace, petroleum chemical industry, food, pharmaceutical and other industries.

  Application:	be used to make toilet paper,tissue paper,writing paper,printing paper,etc
  Wire diameter:	0.06mm-1.800mm
  Weaving method:	plain weave, plain dutch weave, twill weave, dutch twilled weave

  304 Stainless Steel Wire Cloth is the most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.

304L Stainless Steel Wire Cloth has similar properties as 304ss but lower carbon content to permit better welding.


316 Stainless Steel Wire Cloth has similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.


316L Stainless Steel Wire Cloth has similar properties as 316ss but lower carbon content to permit better welding.
Weaving Type
TDR, Twilled Reverse Dutch Weave
RPD Reverse Plain Dutch Weave
PRD Plian Reverse Dutch Weave
1,Plain Weave: Each weft wire passes over one and under one warp wire, and each warp wire passes over one and under one weft wire, every weft wire have and warp wire the same diameter.
2,Twill: Wire Cloth in which each warp wire and each shute wire passes successively over and under the two adjacent wires -- in both the warp and shute directions. This over and under movement is shifted one wire with each pass of the shuttle. This pattern permits the weaving of heavier wires in varying meshes.
3,Plain Dutch Weave: Similar interlacing as in Plain Weave, except the warp wires are larger diameter than the shute wires. The lighter shute wires are driven up close thus forming a dense filtering medium. This weave displays a tapered or wedge-shaped opening.
4,Twill Dutch: This filter cloth specification technically combines the Twill Weave and Dutch Weave described above. The larger diameter warp wires successively pass over and under the lighter diameter shute wires. Each pass of the shute wires shifts the over and under movement one wire. The shute wires are driven up close, resulting in a tightly woven filter cloth with tapered or wedge shaped openings.
5,Twill Dutch Double: Very similar to Twill Dutch Weave, but by proper selection of the wire sizes, the shute wires actually overlap each other when driven up tight into position. This permits double the wires per inch in the shute direction. This type of wire cloth is usually considered a Micronic Grade filter cloth.
6,Stranded: In this type of weave, both the warp and shute wires are made up of separate wires, rather than a single wire. This weave is woven in the twill pattern, producing an exceptionally strong and tight mesh.

Processing products

Concentrating on putting all the efforts into maintaining product standards. We have a full range of production equipment, advanced technology, scientific management and inspection systems so that we can meet the exact requirements of our customers for various of wire mesh products.
