Specifications
Place of Origin :
Hengshui,China
MOQ :
2 rolls
Price :
According to order quantity can be negotiable
Supply Ability :
2300 Meter/Meters per Month
Packaging Details :
inner kraft, outside plastic cloth, put into wooden pallet or case
Material :
Galvanized Steel Wire, galvanized stainless
Technique :
Woven, Crimped
Weave Style :
plain crimped/flat top crimped, plain crimped/flat top crimped
Wire gauge :
1-10mm
Roll size :
1mx30m, 1.22mx30m, 1.5mx30m
Hole shape :
Square
Sample :
Available
Mesh size range :
1-3200mesh
Description

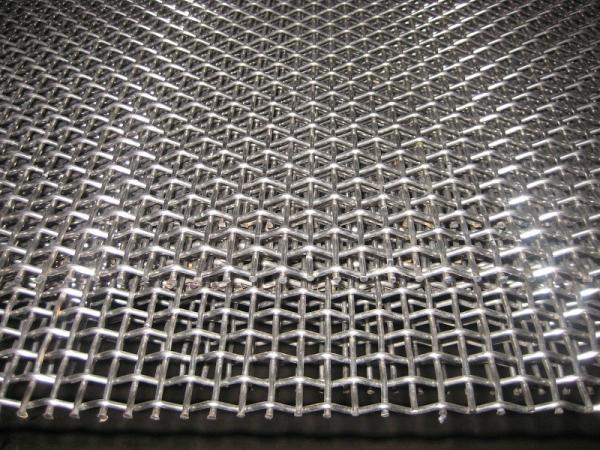

Supplier Crimped Woven Wire Mesh,Crimped Wire Mesh in 100mmx100mm for Mine Sieving


General Use of Crimped Wire Mesh: Construction, chemical and fertilizer industries. Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.


Material of Crimped Wire Mesh: Low carbon steel wire, high carbon steel wire, stainless steel wire, Weaving Patterns of Crimped Wire Mesh: Weaving type is supplied on required.
General Use of Crimped Wire Mesh: Construction, chemical and fertilizer industries. Hole size and wire diameterof Crimped Wire Mesh according to your requirement.
Hole size: 25mm to 200mm
Wire diameter from 0.4mm to 10.0mm

Opening Type Wire Dia Weight Per Sq. Foot Percent of Open Area
2.00" x 2.00" Clear Opening Space Cloth .250" 1.79 79.00%
1.75" x 1.75" Clear Opening Space Cloth .192" 1.22 81.20%
1.50" x 1.50" Clear Opening Space Cloth .162" 1.02 81.50%
1.25" x 1.25" Clear Opening Space Cloth .120" 0.68 83.20%
1" x 1" Clear Opening Space Cloth .105" 0.5 83.90%
3/4" x 3/4" Clear Opening Space Cloth .092" 0.65 79.30%
1/2" x 1/2" Clear Opening Space Cloth .080" 0.71 74.30%
3/8" x 3/8" Clear Opening Space Cloth .080" 0.91 67.90%
1/4" x 1/4" Clear Opening Space Cloth .080" 1.28 57.40%
.395" 2 mesh .105" 1.442 62.40%
.420" 2 mesh .080" 0.83 70.60%
.437" 2 mesh .063" 0.512 76.40%
.453" 2 mesh .047" 0.284 82.10%
.253" 3 mesh .080" 1.264 57.60%
.270" 3 mesh .063" 0.776 61.30%
.286" 3 mesh .047" 0.428 73.60%
.170" 4 mesh .080" 1.721 46.20%
.187" 4 mesh .063" 1.048 56.00%
.203" 4 mesh .047" 0.576 65.90%

Square Hole Shape Vibrating Screen Wire Mesh 100mmx100mm Durable For Mine Sieving

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.

Square Hole Shape Vibrating Screen Wire Mesh 100mmx100mm Durable For Mine Sieving

We are specialized in manufacture and export of stainless steel wire mesh product,if you have request please contact us.We will provide professional service and guarantee on time delivery.
