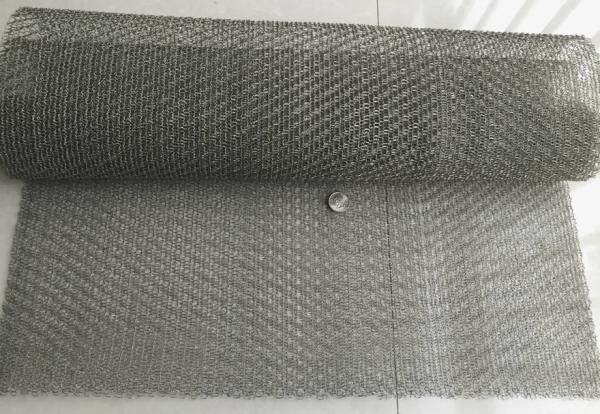

321 304 Stainless Steel Woven Wire Mesh Screen Liquid Gas Filter Irregular Hole
321 304 Stainless Steel Woven Wire Mesh Screen Liquid Gas Filter Irregular Hole
321 304 Stainless Steel Woven Wire Mesh Screen Liquid Gas Filter Irregular Hole
321 304 Stainless Steel Woven Wire Mesh Screen Liquid Gas Filter Irregular Hole
Specifications
Brand Name :
TL
Model Number :
TL k 06
Place of Origin :
Hengshui,China
MOQ :
5 rolls
Price :
8-40 per square meter
Supply Ability :
3000 rolls per month
Delivery Time :
14 working days
Packaging Details :
Inside waterproof paper,outside wooden carton flat-type and corrugated
Material :
stainless steel wire AISI201, 202, 301, 302, 304, 304L, 321, 316, 316 L
Type :
Weave wire mesh
Weave style :
Plain weave
Wire Diameter :
0.025mm-2mm, 0.025mm-10mm
Usage :
Filter strainers demister pad
Width :
0.5-2m
Length :
Customized
Feature :
Corrosion Resistance
application :
Air & Liquid Filtration
Hole shape :
irregular
Description

321, 304 Stainless Liquid Gas Filter Knitted Wire Mesh,Hot Sale Stainless Steel Knitted Mesh From China

Air and Liquid Filter Mesh also is called gas liquid separate filter mesh, knitted filter
mesh.

1. Material : stainless steel wire(AISI201,202,301,304,304L,321,316,316L,etc)galvanized wire,red copper wire,nickel wire, teflon wire,PEFT, terylene wire,polythylene wire,etc

2. Wire scope: 0.1-0.55mm (common wire is 0.2-0.25mm), wire can be single and multi-strand;round and flat.

3. Hole size: mesh can be from 2×3mm, 4×5mm to 12×6mm, other sizes as customers' demands.

4. Surface treatment for filter: Flat and crimped ,if wavy should provide crimped width and depth

5. Filter mesh width: 40mm ,80mm ,100mm,150mm,200mm,300mm,400mm,500mm,600mm.
Filter mesh Length: 30m, 50m, 100m, others as customers' demands.

6. Usage:
(1) In order to make demister mesh
(2) As screens/disc to let Gas-liquid separation, gas water separation, water-oil separation
(3) All kinds of filter elements which used on engine on car, tractor
(4) Used on other electron, electrical product.


Sheet of Air and Liquid Filter Mesh
type Mesh quantity and Width Wire diameter (MM) material Weight (kgs/sqm)
standard 40-100 0.1X0.4 1Cr18Ni9 1/0.5
60-180 0.1X0.4 1Cr18Ni9 1/0.5
140-400 0.1X0.4 1Cr18Ni9 1/0.5
40-100 0.27 Gal. Lead wire 1/0.7
40-100 0.1X0.4 Copper wire 1/0.7
40-100 0.25 polyamide fibre 1/0.7
40-100 0.2 polyethylene wire 1/0.7
40-100 0.2 Polypropylene wire 1/0.7
Efficient type1 60-100 0.15 Polypropylene wire 1/0.7
70-100 0.1X0.3 Stainless steel wire 1/0.6
80-100 0.1X0.3 Stainless steel wire 1/0.6
90-150 0.1X0.3 Stainless steel wire 1/0.6
200-400 0.1X0.3 Stainless steel wire 1/0.6
60-100 0.1X0.5 polyamide fibre 1/0.6
80-100 0.1X0.5 polyamide fibre 1/0.6
Efficient type2 20-160 0.1X0.4 Stainless steel wire 1/0.4
30-150 0.1X0.4 Stainless steel wire 1/0.4
70-400 0.1X0.4 Stainless steel wire 1/0.4
We can weave the special size for you according to your requirements
