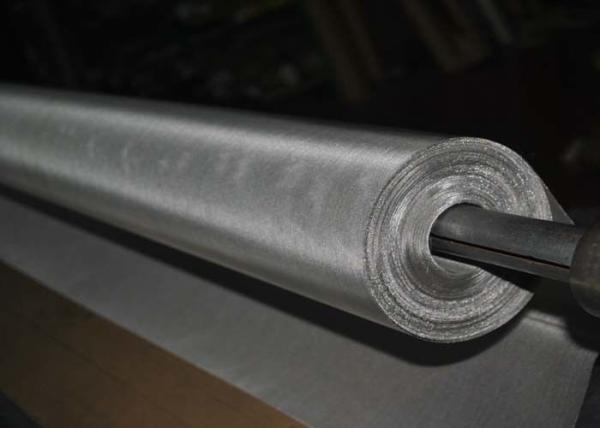

Acid Resisting Stainless Steel Woven Wire Mesh 60 Micron 0.01-1mm Wire Diameter
Acid Resisting Stainless Steel Woven Wire Mesh 60 Micron 0.01-1mm Wire Diameter
Acid Resisting Stainless Steel Woven Wire Mesh 60 Micron 0.01-1mm Wire Diameter
Acid Resisting Stainless Steel Woven Wire Mesh 60 Micron 0.01-1mm Wire Diameter
Specifications
Place of Origin :
Hengshui,China
MOQ :
1 roll
Price :
7-200 us dollar per square meter
Supply Ability :
3000 rolls per month
Packaging Details :
Inside waterproof paper,outside wooden carton
Material :
Stainless steel wire
Mesh size :
2 mesh-500meshes
Wire diameter :
0.01-1mm
Technique :
Woven
Width :
0.5-6.5m
Length :
30m or customized
Feature :
Wear-Resisting,Heat-Resisting,Acid-Resisting
Usage industry :
Chemical Industry,Filtering,Sieving
Description

Ss 316 Stainless Steel Wire Mes,Stainless Steel Screen Wire Mesh,60 Micron 304 Stainless Steel Filter Mesh

The stainless steel filtration mesh is also known as stainless steel Dutch woven filter cloth or stainless steel Dutch woven filtration mesh. For weave types have stainless steel plain Dutch wire mesh and stainless steel twilled Dutch mesh.

Stainless Steel Woven Wire Mesh Material


Stainless steel wire mesh is made stainless steel wire and then woven together to form a square opening or oblong opening. Stainless steel woven wire mesh has characteristics of resistance to the rust, corrosion, acid, alkali, heat and chemical, high strength and durability. Stainless steel woven wire cloth has widely applications in the industries, architecture, residences and other places.

SS 430: Non Nickel and have magnetic;
SUS 202: non-magnetic, low anti-corrosion resistence;
SUS 304/304L: low-magnetic, good anti-corrosion resistence;
SUS 316/316L: low-magnetic, better anti-corrosion resistence;
SUS 310S: anti-oxidization,anti-corrosive and high temperature resistence

Stainless Steel Woven Wire Mesh Count

SUS 202/310s sutiable for mesh count from 1 to 100( plain weave);
SUS 304/304L suitable for mesh count from 1 to 400(plain/dutch weave);
SUS 316/316L 430 suitable for mesh count from 1 to 600(plain/twill/dutch weave .

Stainless steel wire mesh is heat-resisting, acid-resisting and corrosion-resisting. This kind of wire mesh is widely used in mining, chemicals, food products and others.


Stainless Steel Woven Wire Mesh Specification

Plain Weave Technical Data
Meshes Per Linear Inch Wire Diameter Aperture Size Open Area, %
Inches mm Inches mm
1 0.135 3.5 0.865 21.97 74.8
1 0.120 3.0 0.880 22.35 77.4
1 0.105 2.5 0.895 22.73 80.1
1 0.080 2.0 0.920 23.36 84.6
3/4" 0.120 3.0 0.630 16.00 70.5
3/4" 0.080 2.0 0.670 17.01 79.8
2 × 2 0.120 3.0 0.380 9.65 57.8
2 × 2 0.105 2.5 0.395 10.03 62.4
2 × 2 0.080 2.0 0.420 10.66 70.6
2 × 2 0.063 1.6 0.437 11.10 76.4
2 × 2 0.047 1.2 0.453 11.50 82.1
3 × 3 0.080 2.0 0.253 6.42 57.6
3 × 3 0.063 1.6 0.270 6.85 65.6
3 × 3 0.047 1.2 0.286 7.26 73.6
4 × 4 0.080 2.0 0.170 4.31 46.2
4 × 4 0.063 1.6 0.187 4.75 56.0
4 × 4 0.047 1.2 0.203 5.15 65.9
5 × 5 0.047 1.2 0.153 3.88 58.5
5 × 5 0.041 1.0 0.159 4.01 63.2
6 × 6 0.063 1.6 0.104 2.64 38.9
6 × 6 0.047 1.2 0.120 3.04 51.8
6 × 6 0.035 0.9 0.132 3.35 62.7
8 × 8 0.063 1.6 0.062 1.57 24.6
8 × 8 0.047 1.2 0.078 1.98 38.9
8 × 8 0.035 0.9 0.090 2.28 51.8
8 × 8 0.032 0.8 0.093 2.36 55.4
8 × 8 0.028 0.7 0.097 2.46 60.2
10 × 10 0.047 1.2 0.053 1.34 28.1
10 × 10 0.035 0.9 0.065 1.65 42.3
10 × 10 0.032 0.8 0.068 1.27 46.2
10 × 10 0.025 0.63 0.075 1.90 56.3
12 × 12 0.041 1.0 0.042 1.06 25.4
12 × 12 0.035 0.9 0.048 1.22 33.2
12 × 12 0.032 0.8 0.051 1.29 37.5
12 × 12 0.028 0.7 0.055 1.39 43.6
12 × 12 0.023 0.58 0.060 1.52 51.8
14 × 14 0.032 0.8 0.039 1.52 29.8
14 × 14 0.025 0.63 0.046 0.99 41.5
14 × 14 0.023 0.58 0.048 1.22 45.2
14 × 14 0.020 0.5 0.051 1.30 51.0
16 × 16 0.028 0.7 0.035 0.89 30.5
16 × 16 0.023 0.58 0.040 1.01 39.9
16 × 16 0.018 0.45 0.045 1.14 50.7
18 × 18 0.020 0.5 0.036 0.91 41.1
18 × 18 0.018 0.45 0.038 0.96 48.3
20 × 20 0.023 0.58 0.027 0.68 29.2
20 × 20 0.020 0.5 0.030 0.76 36.0
20 × 20 0.018 0.45 0.032 0.81 41.0
20 × 20 0.016 0.40 0.034 0.86 46.2
24 × 24 0.014 0.35 0.028 0.71 44.2
28 × 28 0.010 0.25 0.026 0.66 51.8
30 × 30 0.013 0.33 0.020 0.50 37.1
30 × 30 0.012 0.30 0.021 0.53 40.8
35 × 35 0.012 0.30 0.017' 0.43 33.8
35 × 35 0.010 0.25 0.019 0.48 42.4
40 × 40 0.014 0.35 0.011 0.28 19.3
40 × 40 0.012 0.30 0.013 0.33 27.4
40 × 40 0.010 0.25 0.015 0.38 36.0
40 × 40 0.0095 0.24 0.016 0.40 38.4
50 × 50 0.009 0.23 0.011 0.28 30.3
60 × 60 0.0075 0.19 0.009 0.22 30.5
70 × 70 0.0065 0.17 0.008 0.20 29.8
80 × 80 0.0070 0.18 0.006 0.15 19.4
80 × 80 0.0055 0.14 0.007 0.17 31.4
90 × 90 0.0055 0.14 0.006 0.15 25.4
100 × 100 0.0045 0.11 0.006 0.15 30.3
120 × 120 0.0040 0.10 0.0043 0.11 26.6
120 × 120 0.0037 0.09 0.005 0.12 30.7
150 × 150 0.0026 0.066 0.0041 0.10 37.4
165 × 165 0.0019 0.048 0.0041 0.10 44.0
180 × 180 0.0023 0.058 0.0032 0.08 33.5
180 × 180 0.0020 0.050 0.0035 0.09 41.1
200 × 200 0.0020 0.050 0.003 0.076 36.0
200 × 200 0.0016 0.040 0.0035
