Customized Centrifuge Sieve Starch Separator Dehydration For Starch Extraction
Customized Centrifuge Sieve Starch Separator Dehydration For Starch Extraction
Customized Centrifuge Sieve Starch Separator Dehydration For Starch Extraction
Customized Centrifuge Sieve Starch Separator Dehydration For Starch Extraction
Customized Centrifuge Sieve Starch Separator Dehydration For Starch Extraction
Customized Centrifuge Sieve Starch Separator Dehydration For Starch Extraction
Specifications
Brand Name :
JINGHUA
Model Number :
DLS85 DLS100 DLS120
Certification :
CE
Place of Origin :
Zhengzhou City,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
10 sets/month
Delivery Time :
5-14 work days after receiving pre payment
Packaging Details :
Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products
Application :
Starch making separator machine
Energy :
Electric
Power :
22 Kw
Capacity :
30 t/h
Installation :
Yes
Packing :
Wooden Case
Working model :
Continuous
Warranty :
12 months
Description

New Condition Customized Centrifuge Sieve Starch Separator Dehydration Production Line

Product Description

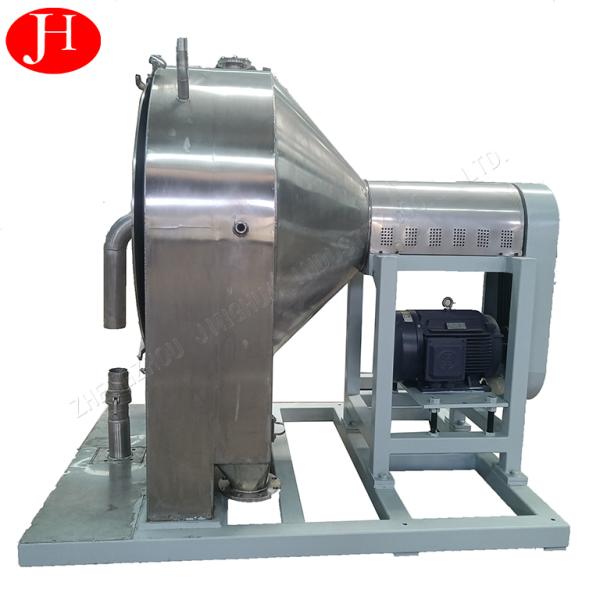

Centrifugal Sieve is used to separate the fine fiber from the starch slurry, which is widely used in the processing of potato, cassava, sweet potato, wheat, rice, sago and other grain starch extraction.

Features of centrifuge sieve

1. Combining the latest technology and years’ experience into a whole.

2. Key components introduced abroad, lone service life, low maintenance cost.

3. All parts contact with material are stainless steel, no material contamination.

4. Sieve basket is calibrated through dynamic equilibrium by domestic authority body.

5. Sieve made from laser perforating on titanium alloy plate.

Working Principle of centrifuge sieve

First, run the machine, let the starch slurry enters the bottom of the sieve basket. Then, under the effect of centrifugal force and gravity, the slurry goes a complex curve movement toward the bigger size direction, even rolling. In the process, the bigger impurities arrive the outer edge of the sieve basket, collecting in the slag collection chamber, whist the starch particle which size is smaller than the mesh fall into the starch powder collection chamber.

Main Technical Parameters

Model Basket diameter(mm) Main shaft speed(r/min) Working model

Power

(Kw)

Dimension

(mm)

Weight

(t)
DLS85 850 1050 continuous 18.5/22/30 1200x2111x1763 1.5
DLS100 1000 1050 continuous 22/30/37 1440x2260x1983 1.8
DLS120 1200 960 continuous 30/37/45 1640x2490x2222 2.2

Packing & Shipping

Packing : Customize the wooden case according to the size of the product.

Delivery :14days after receiving pre-payment (on time according to contract strictly).
