Specifications
Brand Name :
JINGHUA
Model Number :
DCM8435 DCM8450 DCM8465
Certification :
CE
Place of Origin :
Zhengzhou City,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
20 sets/month
Delivery Time :
5-14 work days after receiving pre payment
Packaging Details :
Customize the wooden case according to the size of the product,Each container can hold 4-6 pieces of products
Application :
Alcohol production equipment
Energy :
Electric
Installation :
Yes
Training :
Yes
Power :
110 Kw
Capacity :
35 t/h
Voltage :
220V or 380V
Rotating speed :
2100 r/min
Description

Cassava Miling Making Machine Stainless Steel Rasper Alcohol Production Equipment

Product Description

The second time the cassava root is ground by the rasper, the tiny starch particles can be separated and separated successfully, and the extraction rate of starch can be increased.to increase the starch production.

Key Technology & Innovation Potions
1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.
2. High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.
3. Rotor is calibrated with international advanced dynamic-balance instrument, meeting G1 standard.
4. Components(bearings for example) are imported from Europe with longer service life.

Main Technical Parameters

Model DCM8435 DCM8450 DCM8465 DCM1070
Main shaft rotating speed(r/min) 2100 2100 2100 1470
Drum diameter(mm) Φ840 Φ840 Φ840 Φ1100
Drum width(mm) 350 500 650 700
Power (Kw) 110 160 200 250
Capacity(t/h) 20-23 30-33 35-40 40-45
Dimension(mm) 2170x1260x1220 2170x1385x1250 2170x1650x1380 3000x1590x1500

Product Show

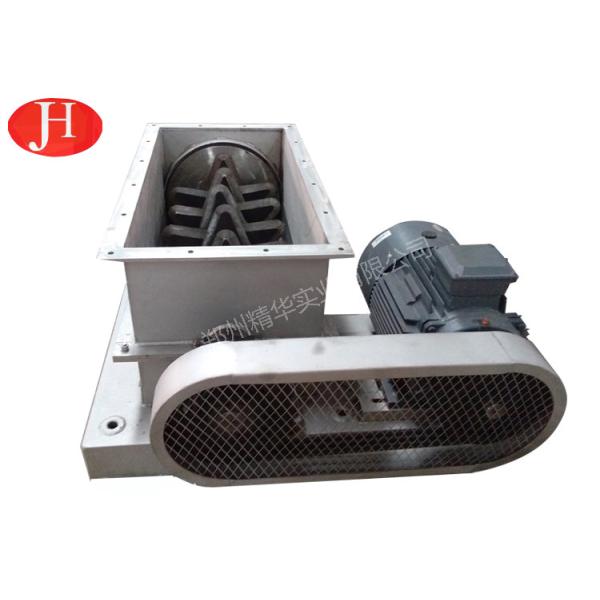

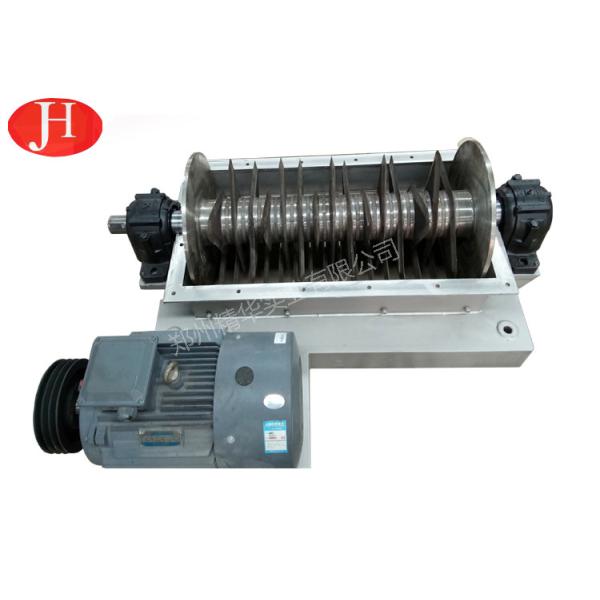

Cassava Miling Machine Stainless Steel Rasper With High Starch Ionization Rate

Cassava Miling Machine Stainless Steel Rasper With High Starch Ionization RateCassava Miling Machine Stainless Steel Rasper With High Starch Ionization Rate

Our Service

Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout .

Sale service
1. Recommending engineering conditions required for installation of the machine.
2. Communicating the manufacturing progress of machines with customer in time.
3. Project planning and design services.

After-sale service
1. Training of equipment maintenance and operating personally.
2. Installation and commissioning of equipment until everything is functional.
3. One year warranty and providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to serve machinery overseas.
