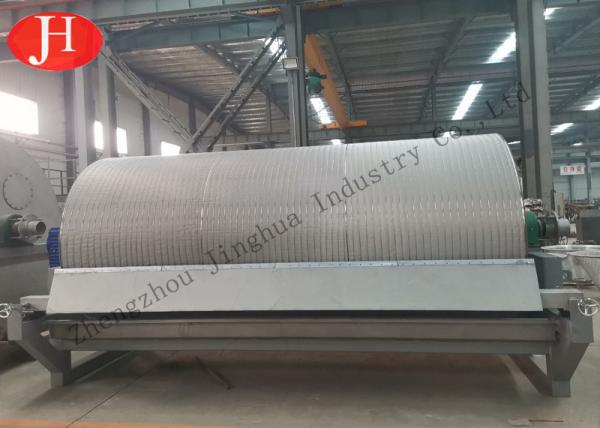

Vacuum Filter Potato Starch Milk Dehydration Equipment
Vacuum Filter Potato Starch Milk Dehydration Equipment
Vacuum Filter Potato Starch Milk Dehydration Equipment
Vacuum Filter Potato Starch Milk Dehydration Equipment
Specifications
Brand Name :
JINGHUA
Model Number :
KLG12 KLG20 KLG24 KLG34
Certification :
CE
Place of Origin :
Zhengzhou City,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
10 sets/month
Delivery Time :
5-14 work days after receiving pre payment
Packaging Details :
Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products
Product name :
vacuum filter
Energy :
electric
Customized :
customized
Dimension :
4785*2630*2600 mm
Useful life :
20 years
Power :
4 Kw
Weight :
5200 kg
Service :
overseas installation
Description

Starch Milk Dehydration Equipment Vacuum Filter Potato Starch Making Machine Manufacturer

Description of potato starch milk dehydrator machine

Zhengzhou Jinghua Industry Vacuum filter combines the latest technology and years experience into a whole, which is widely used for starch milk dewatering in .potato starch,wheat starch,cassava starch and sweet potato sago starch project.

Main technical parameters

Model KLG12 KLG20 KLG24 KLG34
Vacuum degree(Mpa) 0.04~0.07 0.04~0.07 0.04~0.07 0.04~0.07
Content of solid(%) ≥60 ≥60 ≥60 ≥60
Feeding density(Be°) 16-17 16-17 16-17 16-17
Capacity(t/h) 4 6 8 10
Power 3 4 4 4
Drum rotary speed(r/min) 0-7.9 0-7.9 0-7.9 0-7.9
Weight(kg) 3000 4000 5200 6000
Dimension(mm) 3425x2312x2213 4775x2312x2213 4785x2630x2600 5060x3150x3010

Working principle

Rotary drum vacuum filter machine adopts vacuum suction method to achieve solid particles and liquid separation. Work, driven by speed regulating motor rotating the drum in the slurry tank, vacuum pump to produce vacuum inside the drum, under the action of pressure difference, material suspended solution over the surface of the drum forming uniform coating, when reaching a certain thickness from pneumatic scraper to starch, filtrate into the steam separator, so as to achieve the aim of starch, water, gas separation.

Packing & Shipping

Packing & Shipping: Customize the wooden case according to the size of the product.

Delivery: 14 days after receiving pre-payment (on time according to contract strictly).

Vacuum Filter Potato Starch Milk Dehydration Equipment

Why Choose Us

Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.

Our Workshop

Vacuum Filter Potato Starch Milk Dehydration Equipment

Our Workshop

Our Certificate
