FeedThrough Terminal block(2P-12P) with wire protector | Pitch: 8.00mm | Part No.PH8
FeedThrough Terminal block(2P-12P) with wire protector | Pitch: 8.00mm | Part No.PH8
FeedThrough Terminal block(2P-12P) with wire protector | Pitch: 8.00mm | Part No.PH8
FeedThrough Terminal block(2P-12P) with wire protector | Pitch: 8.00mm | Part No.PH8
FeedThrough Terminal block(2P-12P) with wire protector | Pitch: 8.00mm | Part No.PH8
FeedThrough Terminal block(2P-12P) with wire protector | Pitch: 8.00mm | Part No.PH8
FeedThrough Terminal block(2P-12P) with wire protector | Pitch: 8.00mm | Part No.PH8
FeedThrough Terminal block(2P-12P) with wire protector | Pitch: 8.00mm | Part No.PH8
FeedThrough Terminal block(2P-12P) with wire protector | Pitch: 8.00mm | Part No.PH8
FeedThrough Terminal block(2P-12P) with wire protector | Pitch: 8.00mm | Part No.PH8
FeedThrough Terminal block(2P-12P) with wire protector | Pitch: 8.00mm | Part No.PH8
FeedThrough Terminal block(2P-12P) with wire protector | Pitch: 8.00mm | Part No.PH8
Specifications
Brand Name :
STARPAI
Model Number :
PH8W
Certification :
EC,UL,Rohs
Place of Origin :
Shenzhen,China
MOQ :
1000pcs
Price :
USD0.1/pos
Supply Ability :
10000pcs / month
Delivery Time :
15-25 days after 100% T/T payment
Packaging Details :
bag
Pitch :
8.0mm
Voltage :
300V
Current rating :
10A
Description

Materials and specifications
Plastic parts: PC UL94V - 0

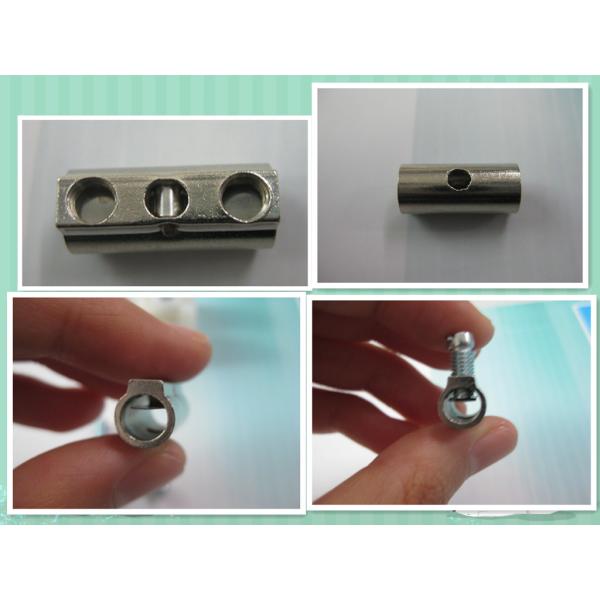

Terminal: brass, Tin plating

Wire protector,Sping
Screw: steel, M2.5 nickel plating


performance

Pitch:8.0 mm
Rated voltage/current: 750 V/ 24 A
Temperature: - 40 ℃ ~ + 105 ℃
The withstand voltage: AC2500V/Min
Insulation resistance: 800 mΩ / DC1000V

Wire range:20-12 AWG
Model Wire mm² UL ICE Screw Dimensions(mm/in)
Volt Amp Volt Amp Unit A B C D E F
PH8W 2.5 600V 20A 450V 24A M2.5x5 mm 94.0 17.0 17.30 8.20 3.00 2.80
PH10W 6.0 600V 28A 750V 24A M3.0x6 mm 116.7 20.3 20.30 10.00 3.50 3.20
PH12W 6.0 600V 41A 750V 45A M3.5x7 mm 139.7 24.0 22.10 12.00 3.90 3.90
PH14W 10.0 600V 50A 750V 57A M4.0x9 mm 157.9 25.4 27.90 13.50 4.30 4.60
PH16W 16.0 600V 65A 750V 76A M4.0x9 mm 171.3 32.0 28.10 14.60 4.40 4.80

If you can't find the exact product you need in the pictures, please don't go away.

Just contact us freely or send your sample and drawing to us.

We will reply you as soon as possible.
