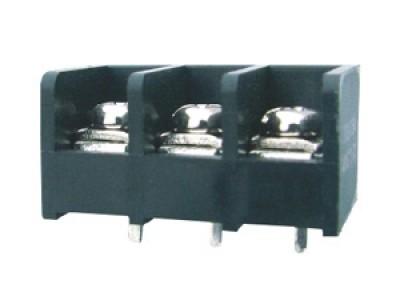

Barrier Terminal Block Type High Power Automotive Terminal Block Connector/Socket with 9.525mm Pitch and 2 to 30 Poles
Barrier Terminal Block Type High Power Automotive Terminal Block Connector/Socket with 9.525mm Pitch and 2 to 30 Poles
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
STARPAI
Model Number :
304-13-9.525
Certification :
EC,UL,Rohs
Price :
1 usd
Packaging Details :
Packing
Delivery Time :
25 days after 100% T/T payment
Payment Terms :
T/T
Supply Ability :
100000K/pcs
MOQ :
1000pcs
Description

Detailed

Pitch
9.525mm
Poles
2-24 Pin
Material
CasePA66+15%GF
ConductorBrass,Tin plated
ScrewM3.5,C1018 steel,Ni plated
Electrical
Voltage300 V
Current rating20A
Electrical WithstandingAC2500V,1minute
Isolation resistanceDC500V 1000MΩ
Wire range22-12 AWG
Max Torque8.0kgf.cm
Mechanical
Operation temperature- 33℃～+105℃
Strip length10-12mm
