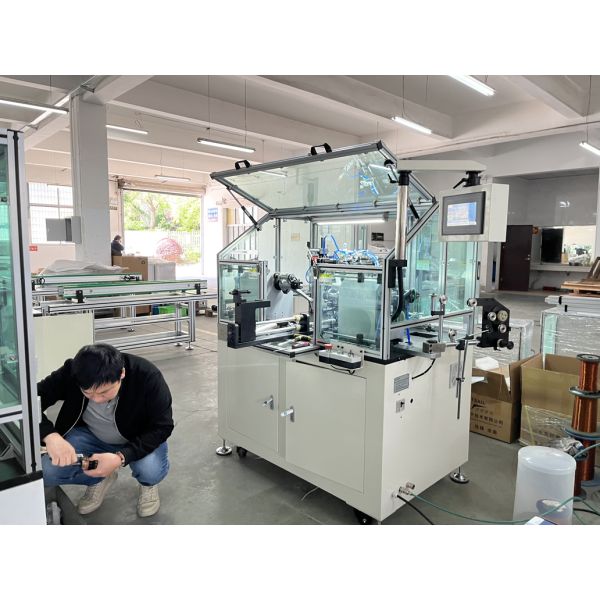

Solar Steering Motor Armature Flyer Winder Rotor Lap Winding Machine WIND-2A-TD

(1) Application

This is a double-fly fork winding machine specially used for producing hook type commutator rotors.

This winder is sutiable for high-speed winding of medium and large wire diameter rotors.

This machine is windely applied to the winding of DC and series motor rotors.

Solar Steering Motor Armature Winding Machine Flyer Winder Rotor Lap Winder

(2) Competitive Advantages

1. Suitable for winding kinds of special winding design armature

such as the solar steering motor showed in photo

2. For armature / rotor with high slot filling rate

3. For armature double flyer winding machine tensioner, China local motor manufacturers usually use hysteresis tensioner or electrical tensioner

according to wire diameter, winder with hysteresis tension which showed in below armature winding machine photo,

This tensioner control the tensioner in four stages, stand-by tension, indexing tension, hooking tension, winding tension,

Which make the winding result compact neat and nice,

(3) Parameter Data

Applicable winding diameter:

Ф0.15-Ф1.26mm

Rotor diameter:

Ф20-Ф90mm

Rotor stack thickness:

10-130mm

Commutator diameter:

Ф8-Ф50mm

Action process:

single-action/automatic

Number of rotor grooves:

odd/even grooves

Winding turns:

0-99999

Fly-fork speed:

0-2000rpm

Parameter storage:

0-99

Power source:

AC380V 50/60Hz

Air source pressure:

5-7kg/cm²

Total power:

3.5KW

Total weight:

about 830kg

Volume:

1530×1050×1650mm³

Sunshine Facing Motor Armature Winding Machine Main Parts:

Mitsubishi Program Controller


Delta Three-set Servo Control System


Embedded Touch Screen Human-computer Interface


Airtac Pneumatic System and Air Source Treatment


South Korea and Japan Main Electrical Elements


Magnetic Hysteresis Tension Control Unit


Taiwan HIWIN Linear Guide Rail
