Hook Riser Slotted Type Commutator Fusing Machine Spot Welding Hot Staking Wire Fusing
Hook Riser Slotted Type Commutator Fusing Machine Spot Welding Hot Staking Wire Fusing
Specifications
Brand Name :
WIND AUTOMATION
Model Number :
WIND-DC-CW003
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
30 working days
Packaging Details :
Two pallets one for welding machine , one for water cooling device 662KGS 1040mm*1040mm*1960mm, 740mm*740mm*1270mm
Application :
12V,24V DC Brushed Motors
DC Power supply :
Self Developed DC power supply
Fusing wire size :
From 0.01mm to 1.20mm for types of armatures
Welding cooling device :
With a separate water cooling device
Adjustment easy :
The welding operation and setting is easy for operator
Welding big wire diameter range :
From 0.01mm to 1.20mm for types of armatures
Gross weight :
662KGS including package pallet
Commutator Shape :
Tang Commutator, Hook commutator, Riser type
Description

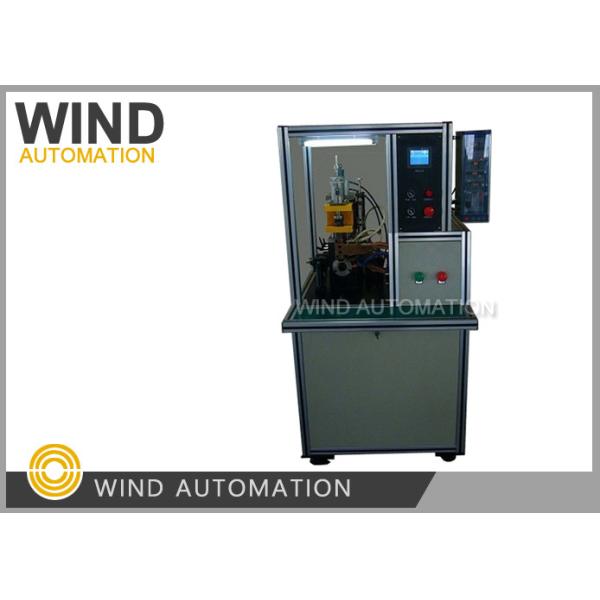

Hook Riser Slotted Type Commutator Spot Welding Hot Staking Wire Fusing Machine WIND-DC-CW003

(1) Application:

PMDC motor armature with hook commutator, riser commutator

(2) Advantages:

Fusing Quality Assured

Self-developed High frequency 15KHz power supply ensure constant

fusing quality

Water Cooling device

Separate cooling water device (act as a conditioner) ensure

temperature constant

Wide Application

Copper wire wide adaption from 0.01mm~1.20mm(AWG44~AWG17)

(3) Ask and Answer:

We are producing 12/24 V DC brushed motors, and we need a Fusing Machine.

Could you inform me about the technical information and price of the machines?

The diameters of shafts we use are Ø8, Ø10, Ø12, Ø14, Ø15, Ø17 and Ø20 mm.

Diameters of armatures that we have are Ø32, Ø40, Ø42, Ø55, Ø65, Ø68 and Ø81.

As you have types of armatures,you may consider the fusing machine WIND-DC-CW003 with high

frequency 15K Hz DC power supply for high and consistent quality with refrigeration constant temperature

separate water cooling tank.

(4) Fusing machine Parameter:

Wire diameter: 0.01~1.2mm

Armature OD: 20~100mm

Armature stack height:10~100mm

Commutator OD:8~70mm

Airsource:5~7KG/cm2

Welding power: 10~30KW

3phase AC 380V 50~60Hz

Weight: about 350KGS

Fusing power supply: Wind Automation self developed high frequency 15KHz, 500~5000A

Control system: Japan Mitsubishi PLC

Indexing control: Japan Mitubishi servo positioning system 7'' Touch screen

(5) What data is required when you send inquiry:

1. Armature size including armature OD, Shaft diameter and length

2. Wire diameter range
